Piston, Rings, Bearings and Connecting Rod Assembly
WARNING: This page is about a different variant/trim than selected.
NOTE:

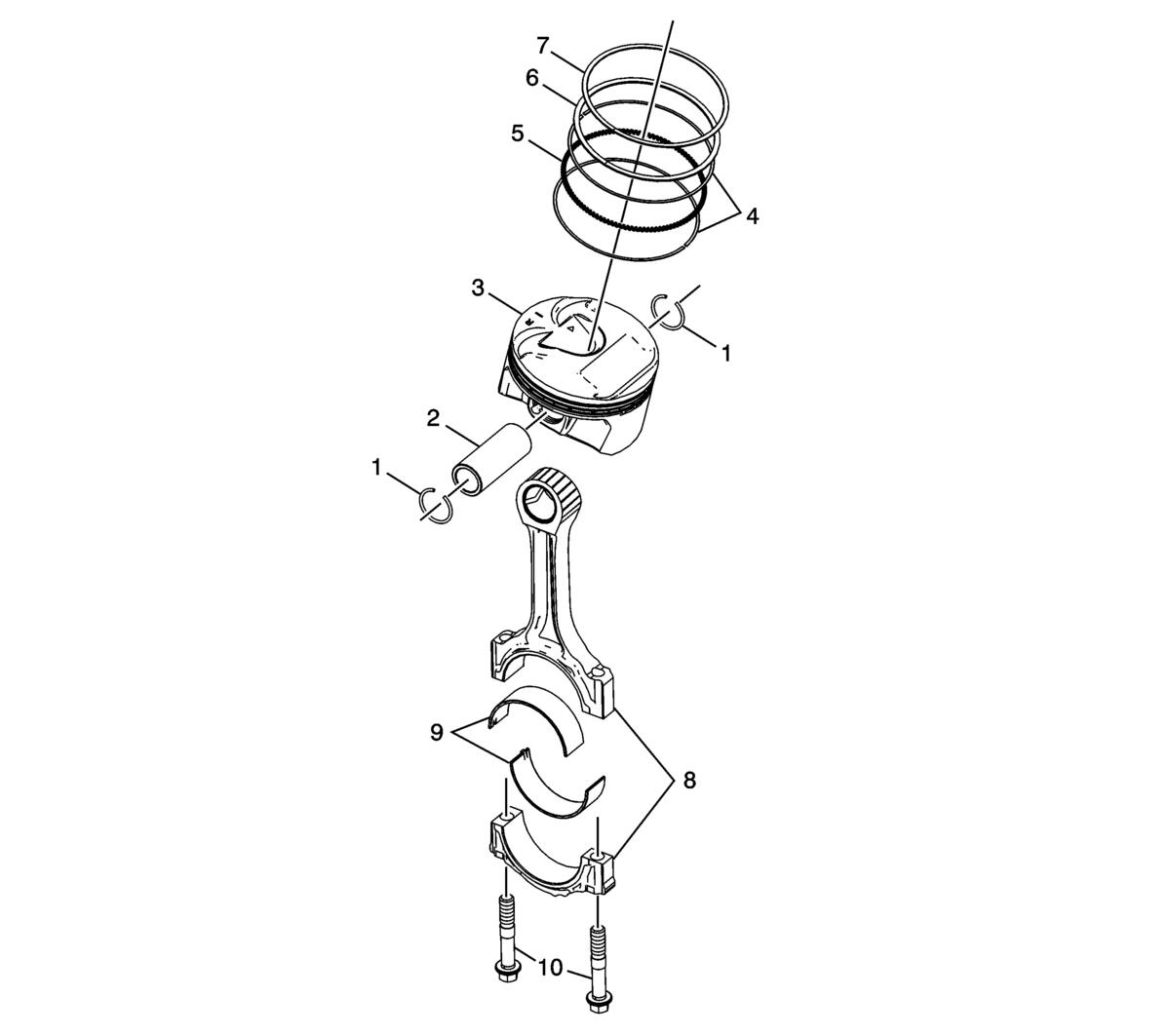

Callouts items in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| 1 | Piston Pin Retainer |
| 2 | Piston Pin |
| 3 | Piston |
| 4 | Piston Oil Ring Rail |
| 5 | Piston Oil Ring Rail Spacer |
| 6 | Piston Compression Ring - Lower |
| 7 | Piston Compression Ring - Upper |
| 8 | Connecting Rod |
| 9 | Connecting Rod Bearing |
| 10 | Connecting Rod Bolt [2x] |
