Fuel Rail Assembly
WARNING: This page is about a different variant/trim than selected.
NOTE:

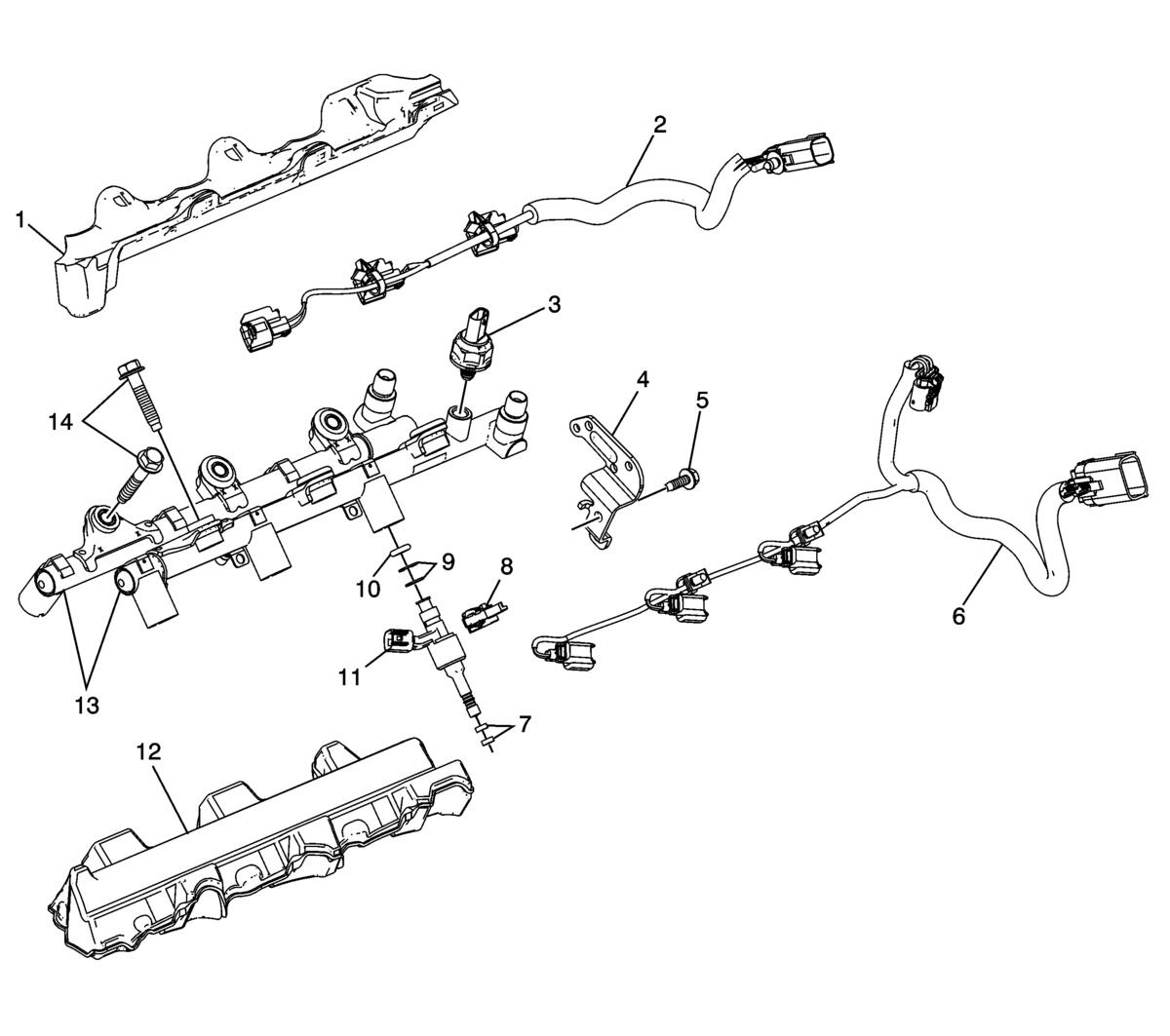

Callouts items in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| 1 | Fuel Injection Fuel Rail Noise Shield |
| 2 | Fuel Injector Wiring Harness |
| 3 | Fuel Injection Fuel Rail Fuel Pressure Sensor |
| 4 | Fuel Injector Wiring Harness Bracket |
| 5 | Fuel Injector Wiring Harness Bracket Bolt [2x] |
| 6 | Fuel Injector Wiring Harness |
| 7 | Fuel Injector Nozzle Housing Seal |
| 8 | Fuel Injector Retainer |
| 9 | Fuel Injector Spacer |
| 10 | Fuel Injection Fuel Rail Seal - (O-ring) |
| 11 | Direct Fuel Injector |
| 12 | Fuel Injection Fuel Rail Noise Shield |
| 13 | Direct Fuel Injection Fuel Rail |
| 14 | Fuel Injection Fuel Rail Bolt [6x] |
