Engine Oil Cooler Adapter Assembly
WARNING: This page is about a different variant/trim than selected.
NOTE:

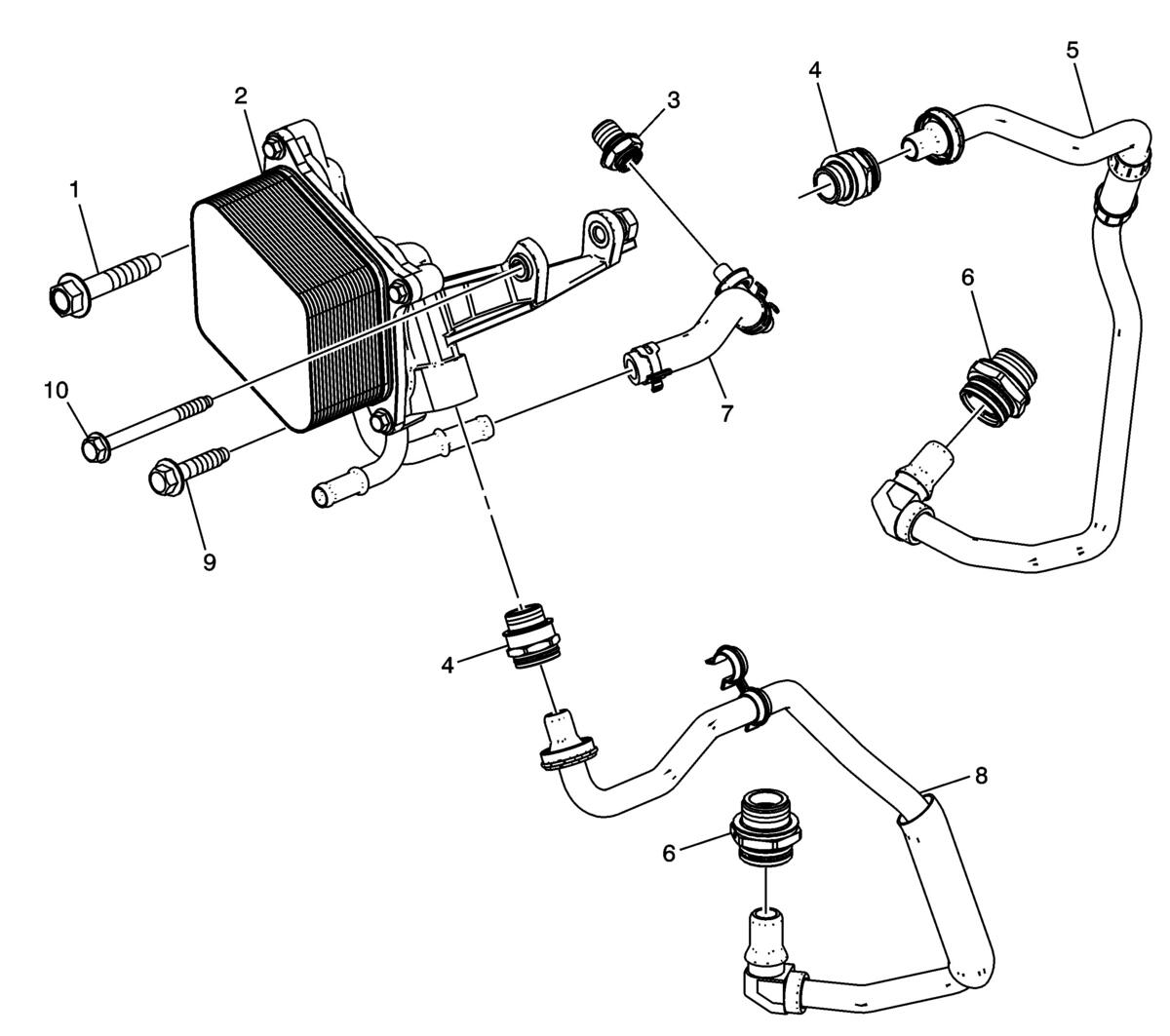

Callouts items in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| 1 | Engine Oil Cooler Adapter Bolt M12 x 65.90 |
| 2 | Engine Oil Cooler Adapter Assembly |
| 3 | Engine Oil Cooler Fitting |
| 4 | Engine Oil Cooler Fitting [2x] |
| 5 | Engine Oil Cooler Pipe |
| 6 | Engine Oil Cooler Fitting [2x] |
| 7 | Engine Oil Cooler Inlet Pipe |
| 8 | Engine Oil Cooler Pipe |
| 9 | Engine Oil Cooler Adapter Bolt M10 x 45.75 |
| 10 | Engine Oil Cooler Adapter Bolt M8 x 90.8 |
