Cylinder Head Assemblies
WARNING: This page is about a different variant/trim than selected.
NOTE:

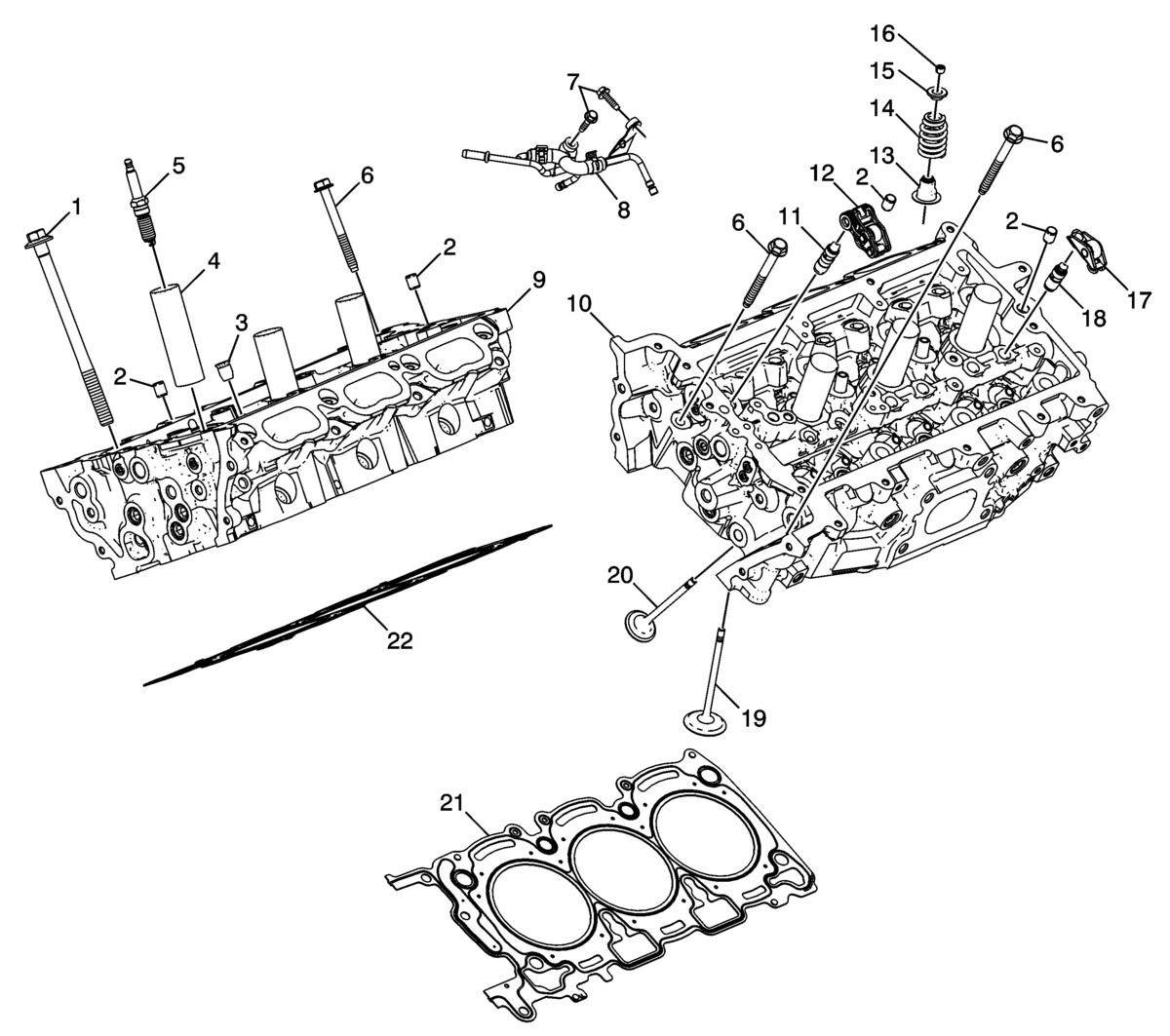

Callouts items in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| 1 | Cylinder Head Bolt [16x] |
| 2 | Dowel Pin |
| 3 | Cylinder Head Oil Gallery Plug |
| 4 | Spark Plug Wire Sleeve |
| 5 | Spark Plug |
| 6 | Cylinder Head Bolt [3x] |
| 7 | Engine Coolant Air Bleed Pipe Bolt [2x] |
| 8 | Engine Coolant Air Bleed Pipe |
| 9 | Cylinder Head - Left |
| 10 | Cylinder Head - Right |
| 11 | Dual Feed Hydraulic Valve Adjustor |
| 12 | Valve Rocker Switching Arm |
| 13 | Valve Stem Oil Seal |
| 14 | Valve Spring |
| 15 | Valve Spring Cap |
| 16 | Valve Stem Key |
| 17 | Valve Rocker Arm |
| 18 | Hydraulic Valve Lash Adjuster |
| 19 | Intake Valve |
| 20 | Exhaust Valve |
| 21 | Cylinder Head Gasket - Right |
| 22 | Cylinder Head Gasket - Left |
