Camshaft Timing Components

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

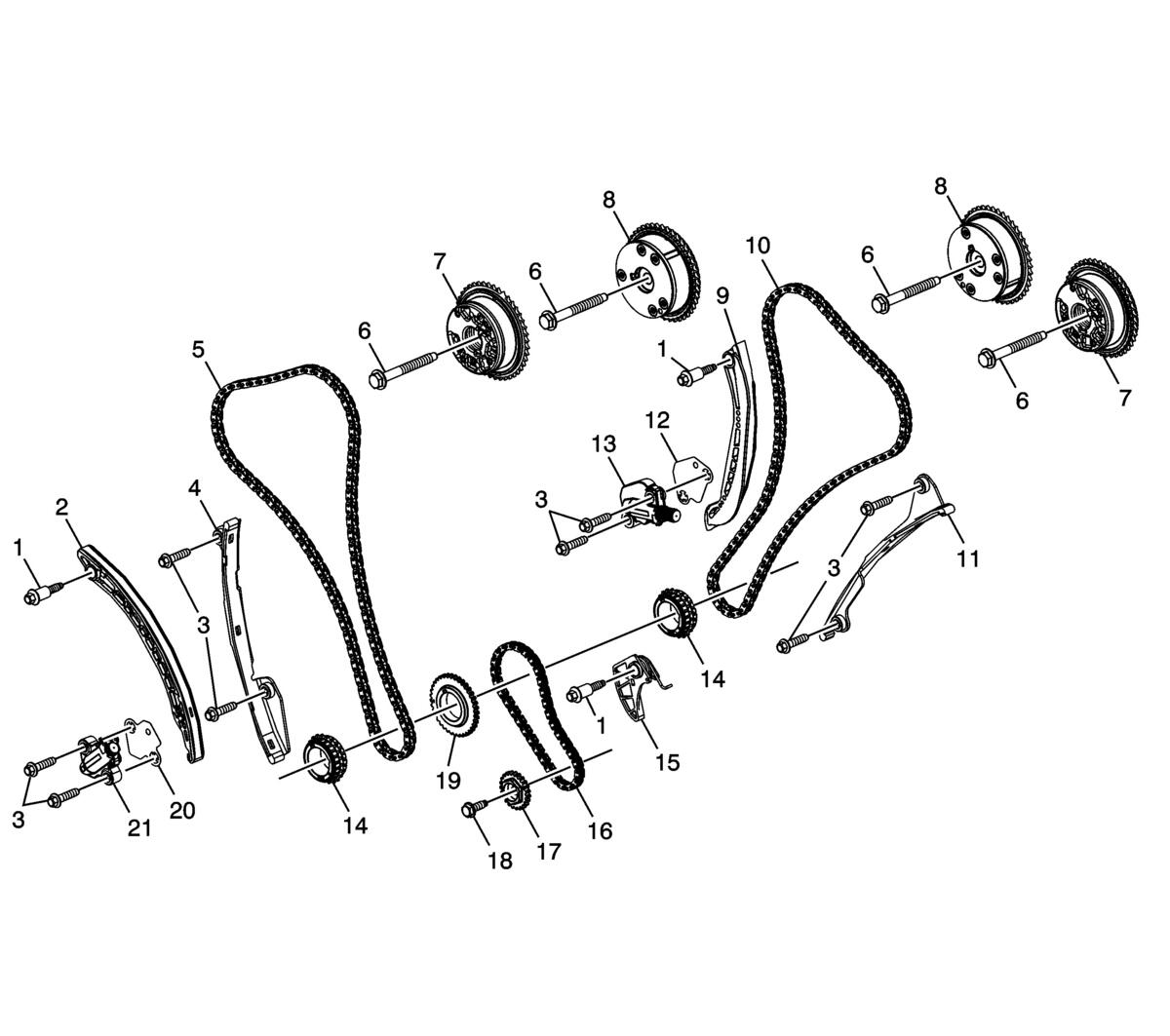

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
1	Timing Chain Guide Bolt [2x]
2	Timing Chain Guide - Right
3	Timing Chain Tensioner Bolt [8x]
4	Timing Chain Guide - Right
5	Timing Chain - Right
6	Camshaft Position Actuator Bolt [4x]
7	Camshaft Position Actuator - Exhaust
8	Camshaft Position Actuator - Intake
9	Timing Chain Guide - Left
10	Timing Chain - Left
11	Timing Chain Guide - Left
12	Timing Chain Tensioner Gasket
13	Timing Chain Tensioner - Left
14	Timing Chain Crankshaft Sprocket
15	Timing Chain Tensioner
16	Oil Pump Timing Chain
17	Oil Pump Sprocket
18	Oil Pump Drive Bolt
19	Crankshaft Sprocket
20	Timing Chain Tensioner Gasket
21	Timing Chain Tensioner - Right
