Camshaft Cover and Components
WARNING: This page is about a different variant/trim than selected.
NOTE:

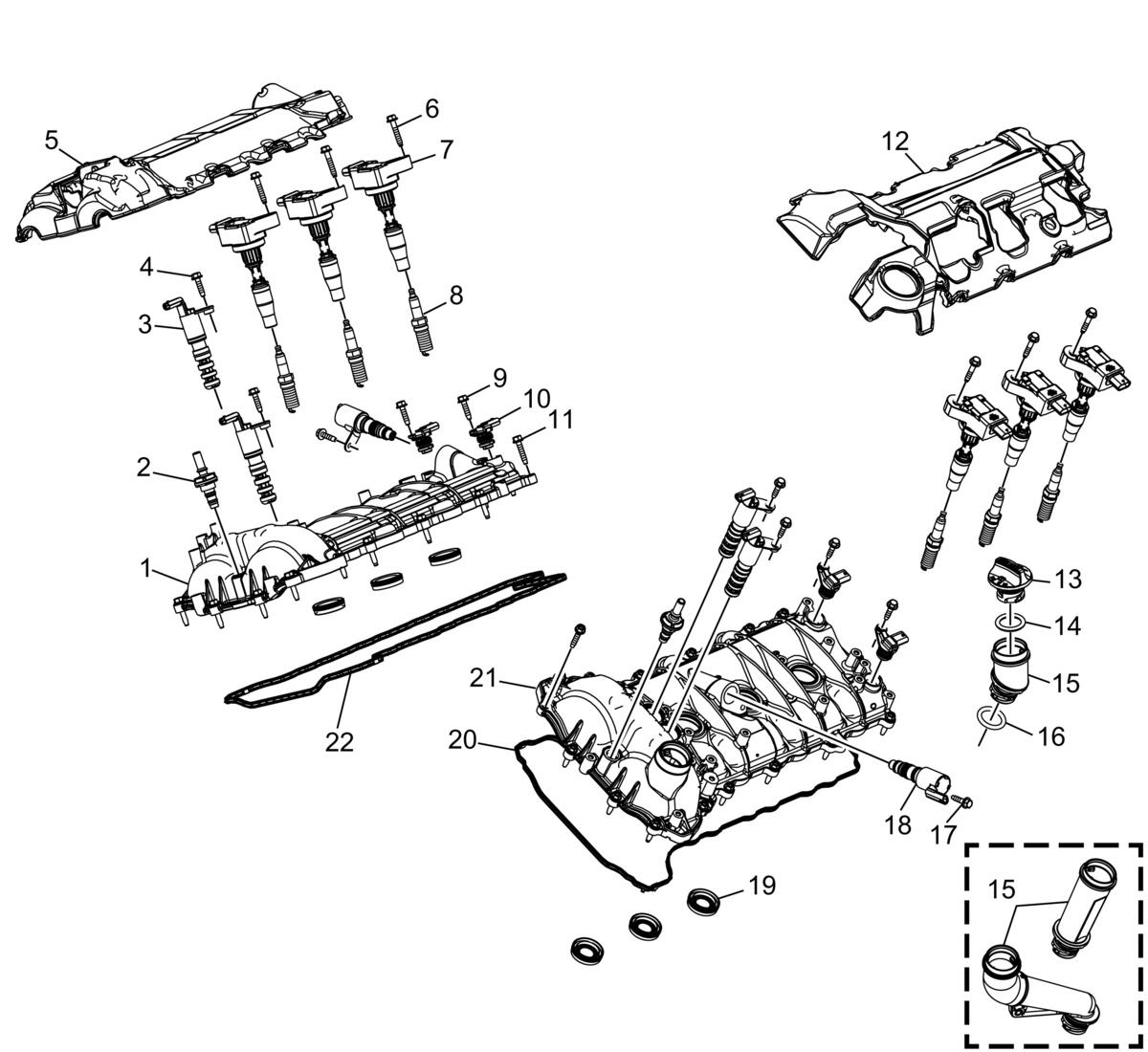

Callouts items in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| 1 | Camshaft Cover - Right |
| 2 | Positive Crankcase Ventilation Valve |
| 3 | Camshaft Position Actuator Solenoid Valve |
| 4 | Camshaft Position Actuator Solenoid Valve Bolt [4x] |
| 5 | Camshaft Housing Cover Insulator - Right |
| 6 | Ignition Coil Bolt [6x] |
| 7 | Ignition Coil |
| 8 | Spark Plug [6x] |
| 9 | Camshaft Position Sensor Bolt [4x] |
| 10 | Camshaft Position Sensor[4x] |
| 11 | Camshaft Cover Bolt[36x] |
| 12 | Camshaft Housing Cover Insulator - Left |
| 13 | Oil Filler Cap (Model Dependant) |
| 14 | Oil Filler Cap Seal (Model Dependant) |
| 15 | Oil Filler Cap Tube (Model Dependant) |
| 16 | Oil Filler Cap Tube Seal (Model Dependant) |
| 17 | Valve Rocker Arm Oil Control Valve Bolt [2x] |
| 18 | Valve Rocker Arm Oil Control Valve |
| 19 | Spark Plug Shield Seal |
| 20 | Camshaft Cover Seal - Left |
| 21 | Camshaft Cover - Left |
