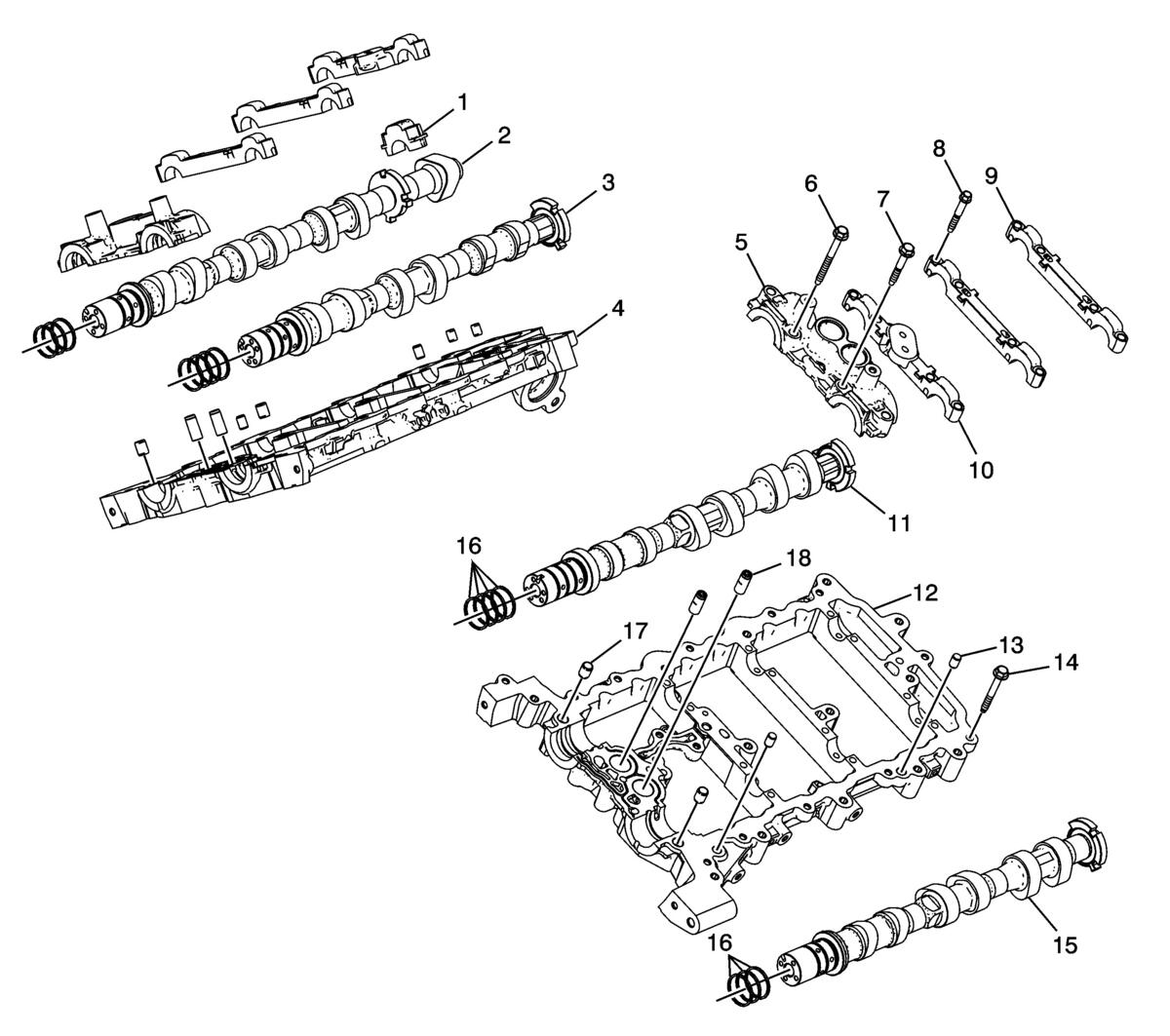

Camshaft Carrier Components
WARNING: This page is about a different variant/trim than selected.
NOTE:
Callouts items in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| 1 | Camshaft Bearing Cap - Intermediate |
| 2 | Exhaust Camshaft - Right |
| 3 | Intake Camshaft - Right |
| 4 | Camshaft Carrier - Right |
| 5 | Camshaft Bearing Cap |
| 6 | Camshaft Bearing Cap Bolt [8x] |
| 7 | Camshaft Bearing Cap Bolt [8x] |
| 8 | Camshaft Bearing Cap Bolt [26x] |
| 9 | Camshaft Bearing Cap |
| 10 | Camshaft Bearing Cap |
| 11 | Intake Camshaft - Left |
| 12 | Camshaft Carrier - Left |
| 13 | Dowel Pin |
| 14 | Camshaft Carrier Bolt |
| 15 | Exhaust Camshaft - Left |
| 16 | Camshaft Oil Seal Ring |
| 17 | Dowel Pin |
| 18 | Engine Oil Manifold Check Valve |
