Turbocharger Wastegate Closed
WARNING: This page is about a different variant/trim than selected.
NOTE:

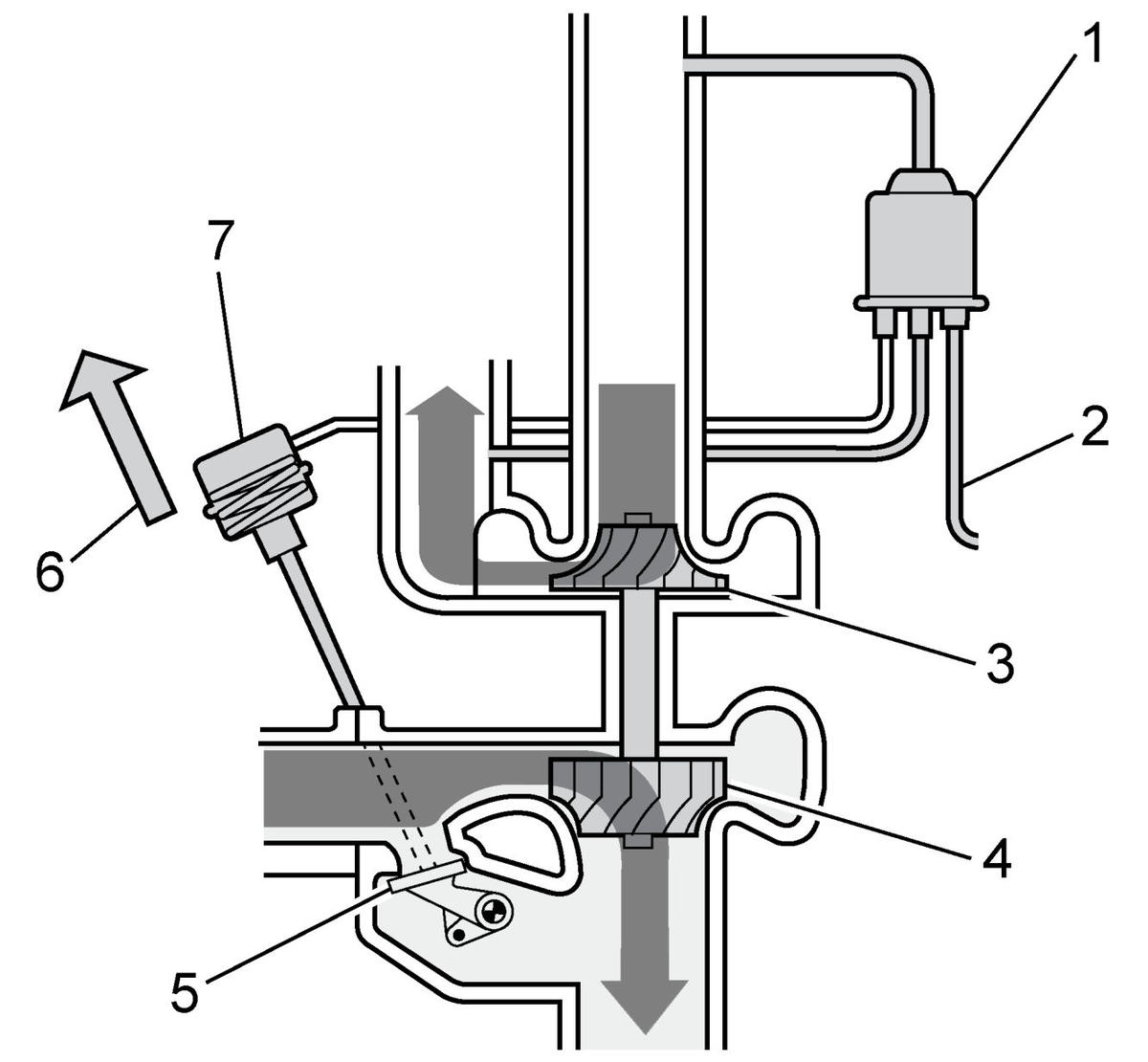

Callouts items in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| 1 | Q42 Turbocharger Wastegate Solenoid Valve=Duty Cycle at 95 to 100 percent (Full Boost) |
| 2 | Q42 - Electrical Wiring Harness |
| 3 | Turbocharger Compressor |
| 4 | Turbocharger Turbine |
| 5 | Turbocharger Wastegate Valve |
| 6 | Boost Pressure from the Turbocharger Compressor is routed to the Compressor Inlet (Actuator Spring Pressure Closes Wastegate Valve (5) |
| 7 | Turbocharger Wastegate Actuator |
