Leak Inspection Points

WARNING: This page is about a different variant/trim than selected.

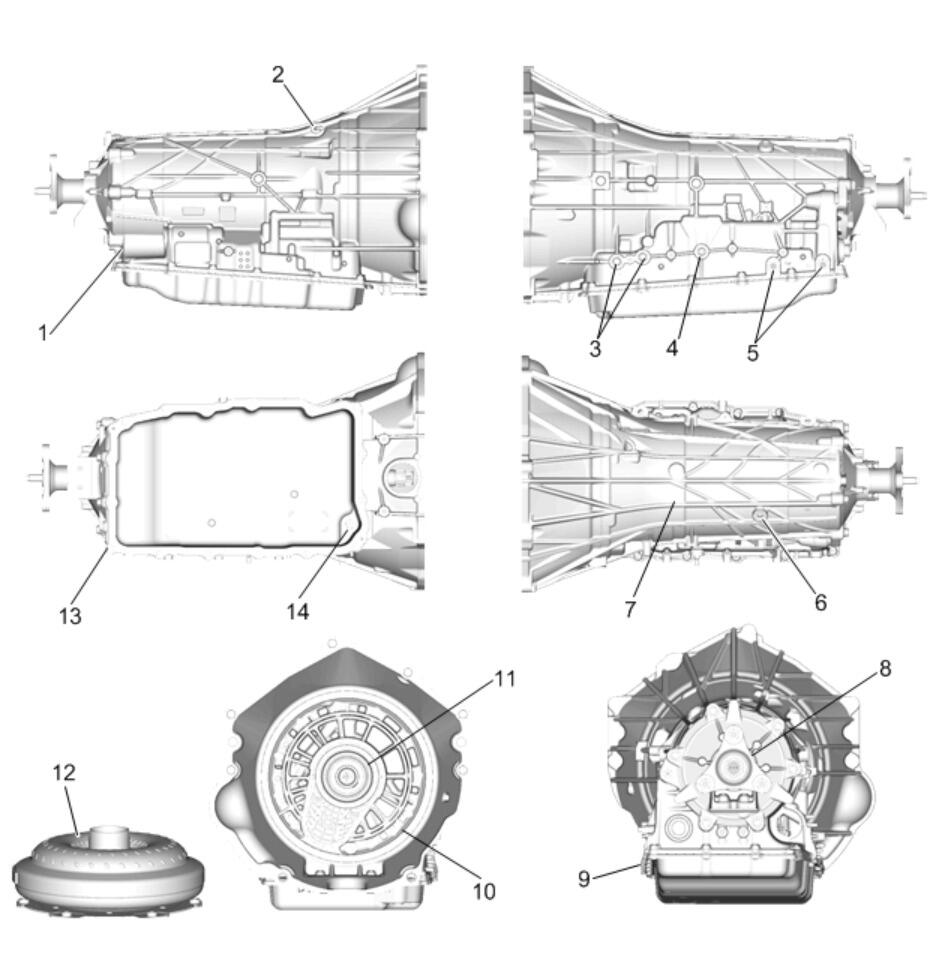

GM4572963Courtesy of GENERAL MOTORS COMPANY
  1. Automatic Transmission Wiring Harness
  2. Automatic Transmission Vent
  3. Transmission Cooler Pipe Fitting Seal
  4. Manual Shift Shaft Seal
  5. Automatic Transmission Side Case Plug
  6. Automatic Transmission Top Case Plug
  7. Automatic Transmission Case Assembly
  8. Propeller Shaft Transmission Flange Fluid Seal
  9. Automatic Transmission Fluid Pan Gasket
  10. Automatic Transmission Case Front Cover Seal
  11. Torque Converter Fluid Seal
  12. Torque Converter
  13. Automatic Transmission Case Extension Seal
  14. Transmission Fluid Fill Tube Plug
