Transmission Control Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

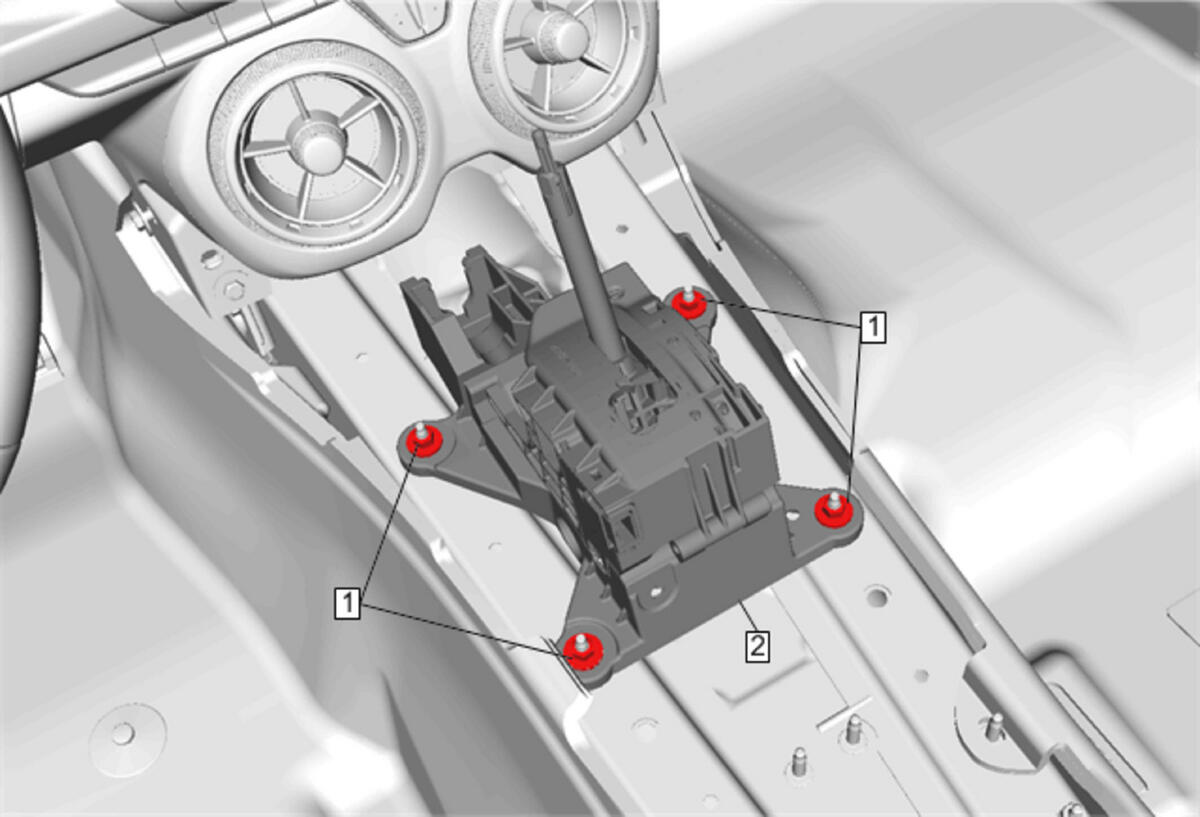

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
WARNING: After installing the transmission range selector shift cable, pull up and push down on ALL connections to verify that the connections are fully seated and properly engaged. Failure to perform this task can result in the vehicle not being able to shift into PARK causing potential vehicle damage and bodily injury. Preliminary Procedures Front Floor Console Replacement Range Selector Lever Cable@Transmission - Remove - Automatic Transmission Range Selector Lever Cable Replacement
1	Transmission Control Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Transmission Control

Callout

Component Name

WARNING:

After installing the transmission range selector shift cable, pull up and push down on ALL connections to verify that the connections are fully seated and properly engaged. Failure to perform this task can result in the vehicle not being able to shift into PARK causing potential vehicle damage and bodily injury.

Preliminary Procedures

Front Floor Console Replacement
Range Selector Lever Cable@Transmission - Remove - Automatic Transmission Range Selector Lever Cable Replacement

Transmission Control Bolt [4x]

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Transmission Control
