Installation Procedure

WARNING: This page is about a different variant/trim than selected.

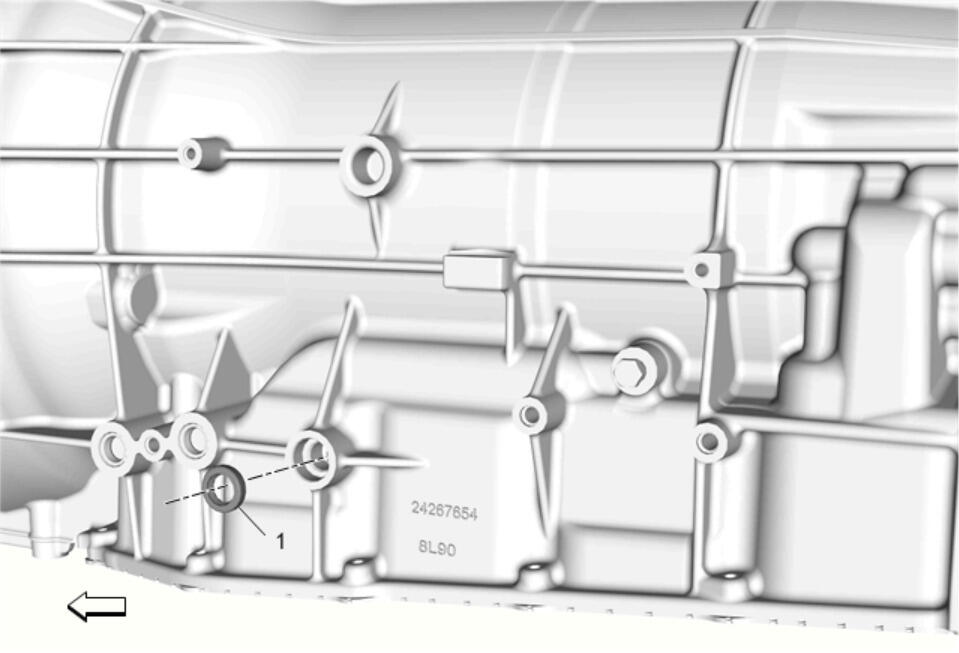

  1. GM3817501Courtesy of GENERAL MOTORS COMPANY

    Install the NEW manual shift shaft seal (1) using DT-47770  seal installer.

  2. GM3817211Courtesy of GENERAL MOTORS COMPANY

    Install the manual shift shaft (2) aligning the position switch assembly onto the shaft.

  3. Install the NEW manual shift shaft pin (1).
  4. Install the NEW manual shift detent lever hub pin (3).
  5. Raise and install the transmission. Transmission Replacement (M5T with LTG)
  6. Install the control valve body. Control Valve Body Replacement
  7. Install the automatic transmission range selector lever. Automatic Transmission Range Selector Lever Replacement
  8. Reprogram the transmission.
