Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Position the automatic transmission wiring harness into the transmission.

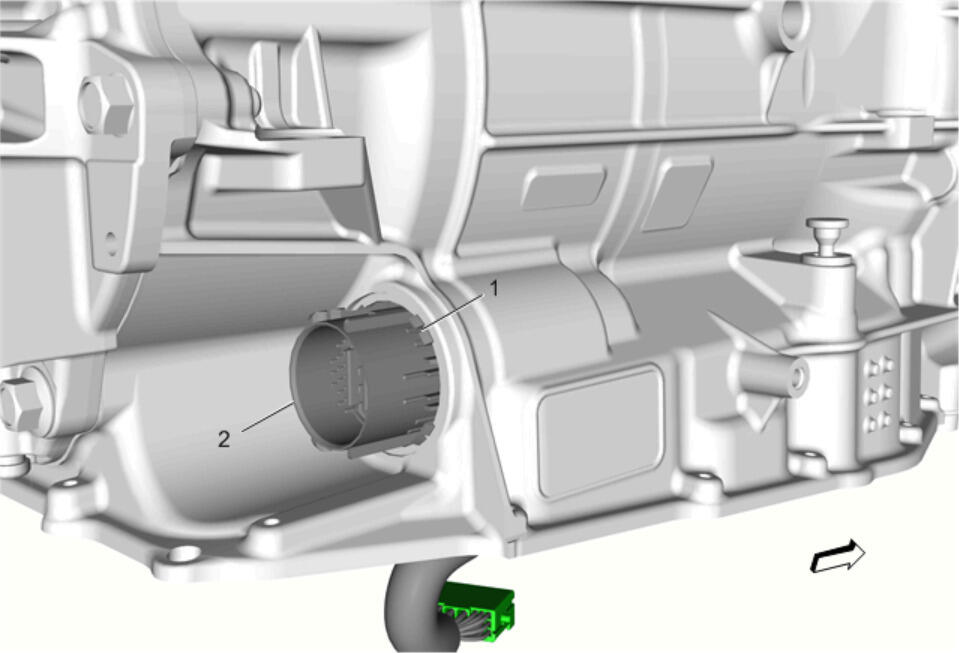

  2. GM3802175Courtesy of GENERAL MOTORS COMPANY

    Press the main connector into the transmission case until the four retaining tabs (1) around the main connector, lock into place.

  3. GM3802143Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector (1).

  4. Install the control valve body. Control Valve Body Replacement .
  5. Connect the chassis wiring harness from the transmission electrical connector.
  6. Reprogram the transmission. Q77 Transmission Control Solenoid Valve Characterization Programming (8L45)
