Automatic Transmission Manual Shift Auxiliary Position Switch Replacement (Right Side)

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

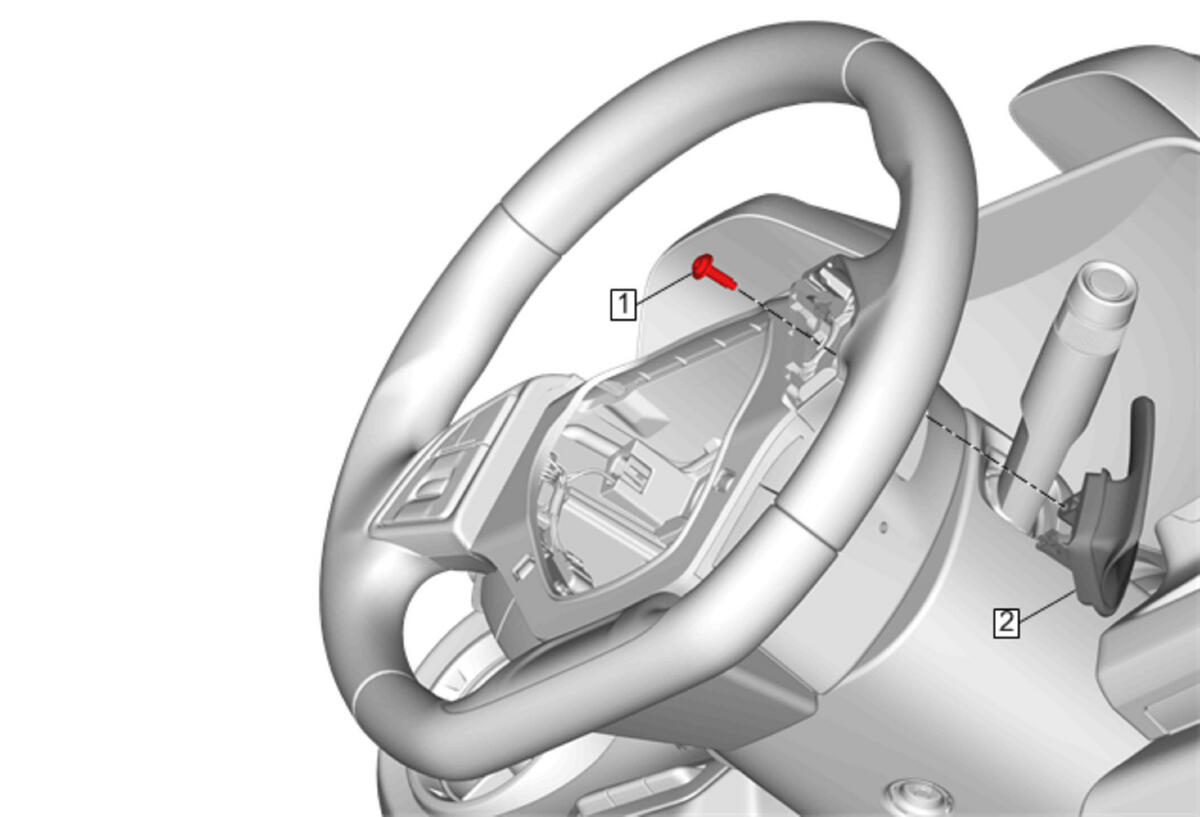

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Remove the right side cruise control switch. Cruise Control Switch Replacement (Left Side)Cruise Control Switch Replacement (Right Side)
1	Automatic Transmission Manual Shift Auxiliary Position Switch Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Automatic Transmission Manual Shift Auxiliary Position Switch-Right Side Procedure Disconnect the electrical connector. Ensure the steering wheel manual shift auxiliary position switch is properly seated on the steering wheel during installation.

Callout

Component Name

Automatic Transmission Manual Shift Auxiliary Position Switch Bolt

CAUTION:

Tighten
2.5 N.m (22 lb in)

Automatic Transmission Manual Shift Auxiliary Position Switch-Right Side

Procedure

Disconnect the electrical connector.
Ensure the steering wheel manual shift auxiliary position switch is properly seated on the steering wheel during installation.
