Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ZL1)Lifting and Jacking the Vehicle (Convertible) .

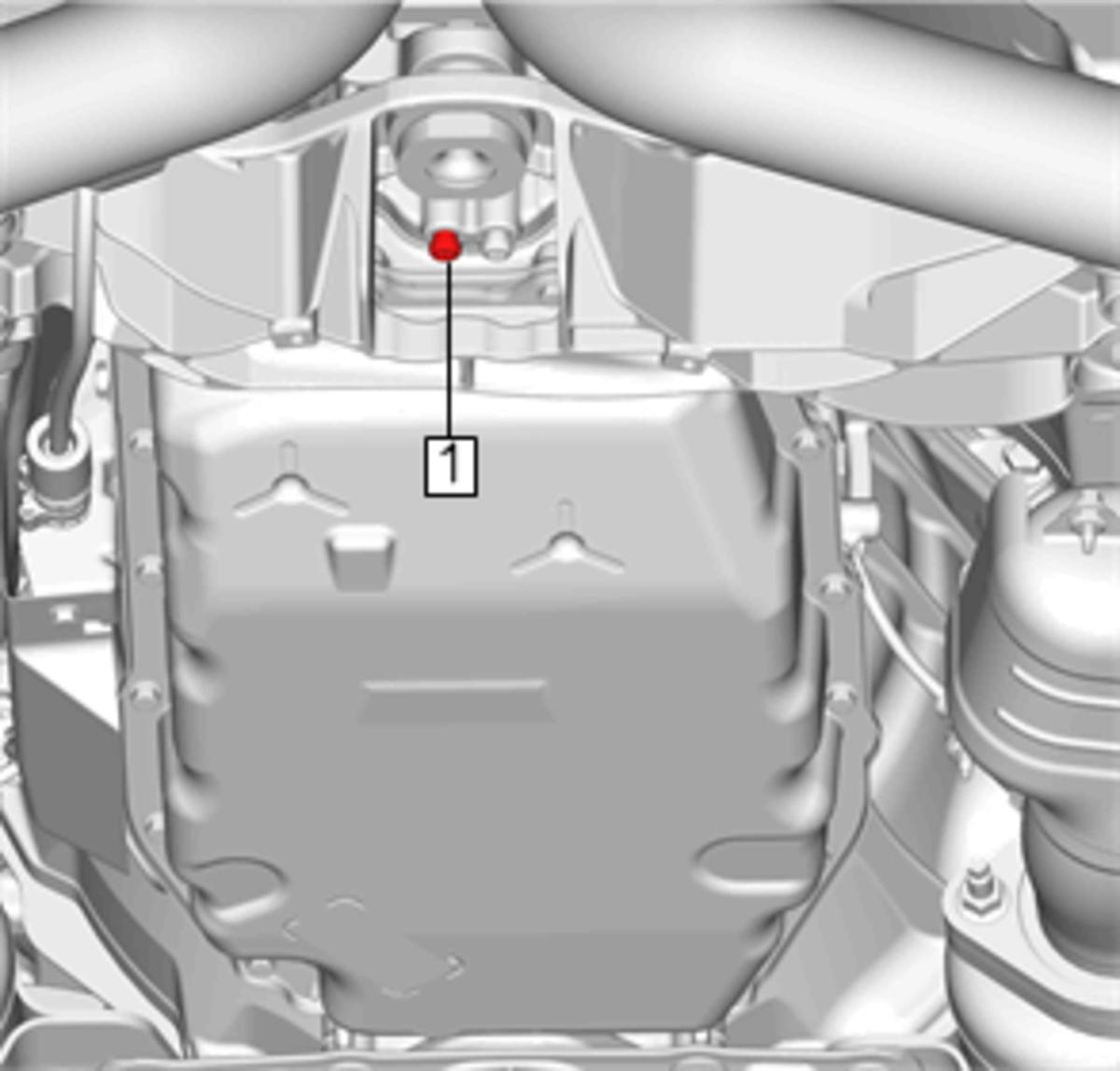

  2. GM4064483Courtesy of GENERAL MOTORS COMPANY

    Clean the surrounding area of the automatic transmission fluid pressure test hole plug.

  3. Remove the automatic transmission fluid pressure test hole plug (1).
