Installation Procedure

WARNING: This page is about a different variant/trim than selected.

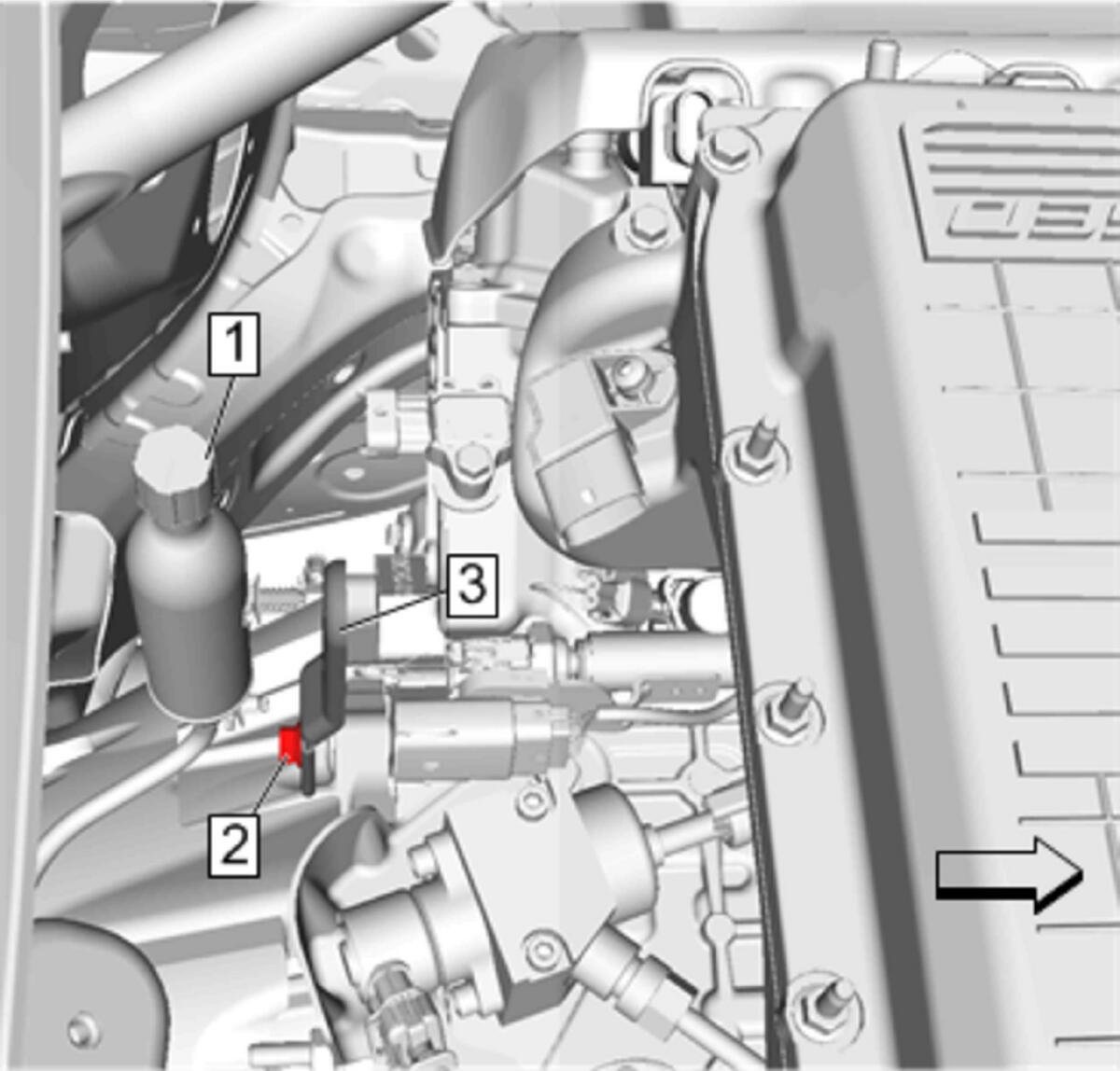

  1. GM4537758Courtesy of GENERAL MOTORS COMPANY

    Install the transmission vent hose clip bracket (3) to the vehicle.

    2. CAUTION:

    Refer to Component Fastener Tightening Caution .

  2. Install the transmission vent hose clip bracket retaining nut (2) and tighten to 22 N.m (16 lb ft).
  3. Connect the transmission vent hose assembly retainers (1) to the transmission vent hose clip bracket (3).
  4. Install the plenum front panel. Plenum Front Panel Replacement (LTG LGX) , or Plenum Front Panel Replacement (LT1 LT4)
