Installation Procedure

WARNING: This page is about a different variant/trim than selected.

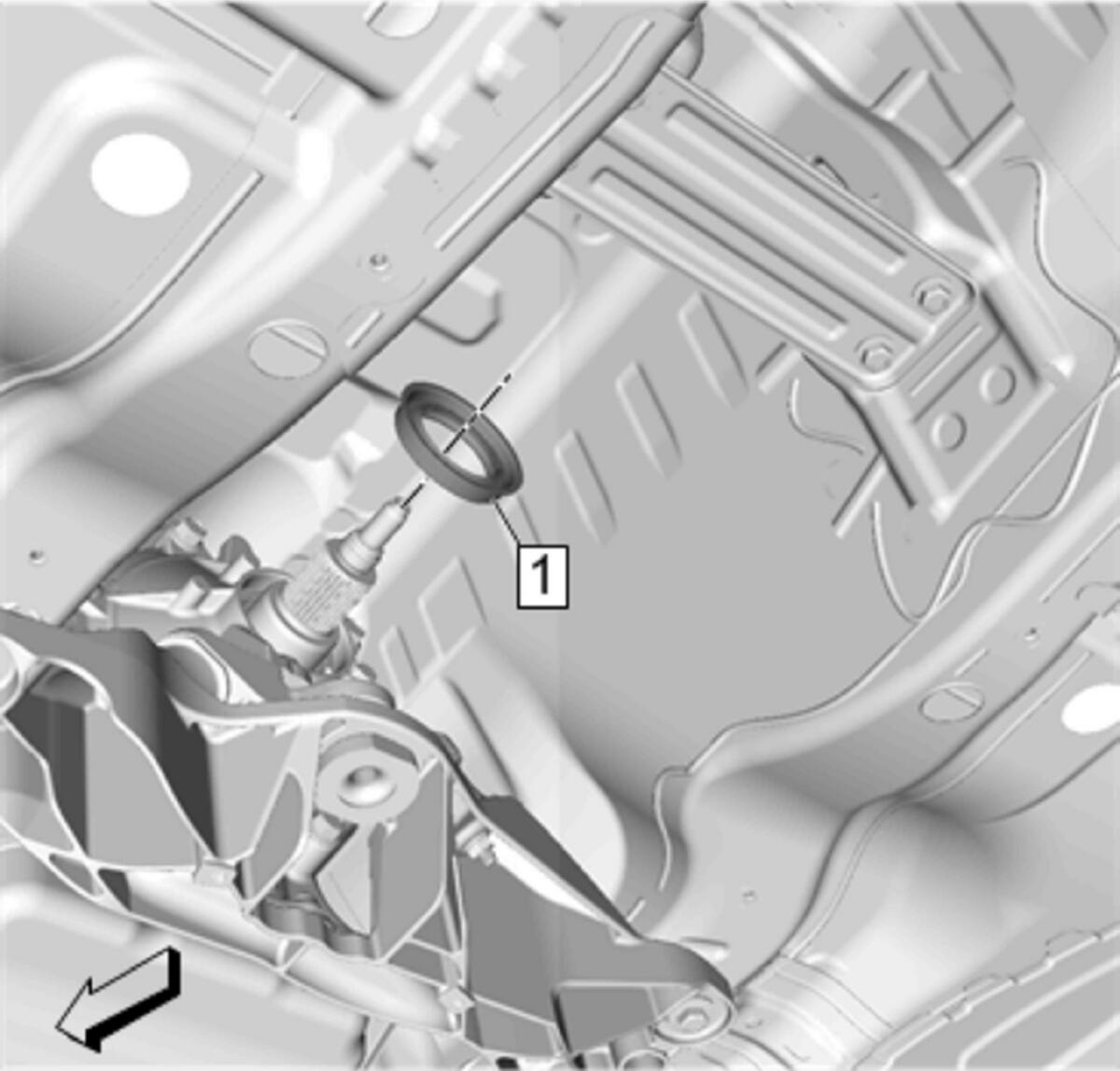

  1. GM4539113Courtesy of GENERAL MOTORS COMPANY

    Install the NEW propeller shaft transmission seal (1) using DT-50648  Case Seal Installer to the case extension housing.

  2. Install the propeller shaft transmission flange. Propeller Shaft Transmission Flange Replacement (with LGX)
