Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Air Outlet Duct to Camshaft Covers)
WARNING: This page is about a different variant/trim than selected.
NOTE:

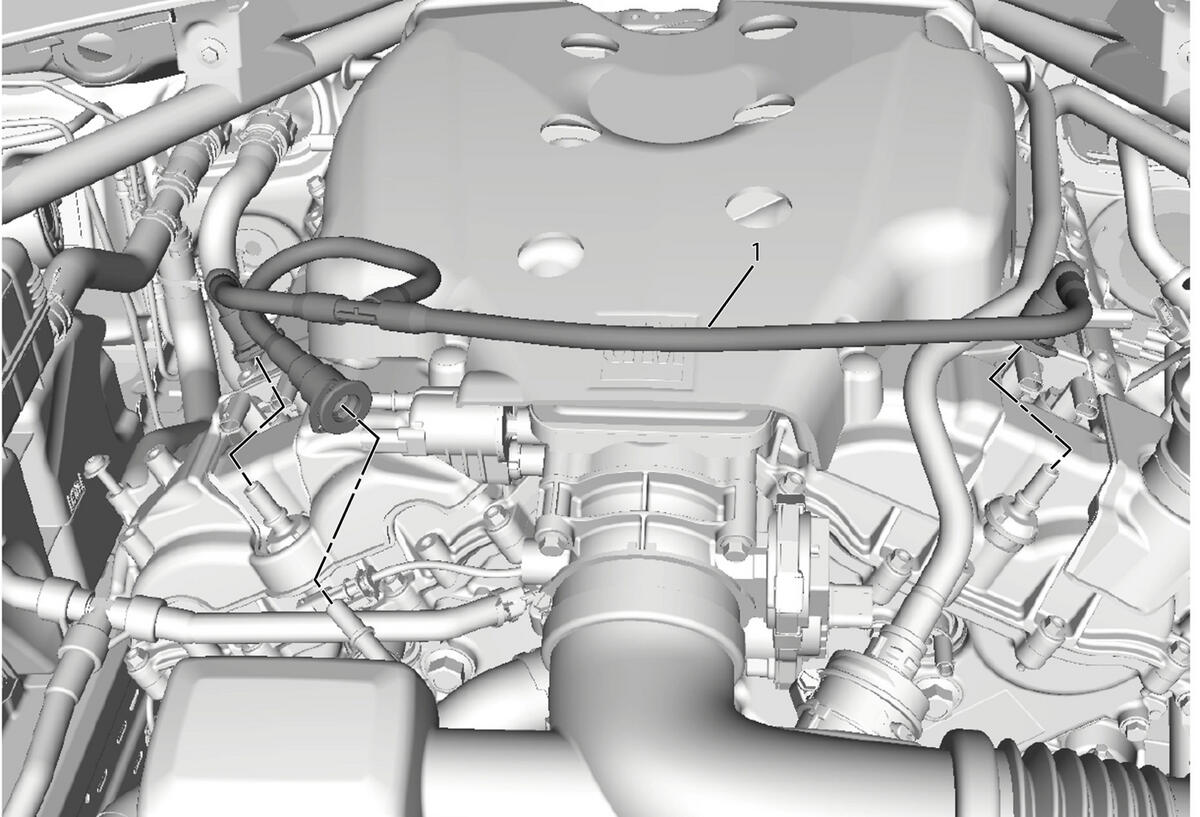

Callouts items in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Intake Manifold Cover Replacement . |
|
| 1 | Positive Crankcase Ventilation Tube Procedure Disconnect the PCV tube from the air cleaner outlet duct and the camshaft covers. Plastic Collar Quick Connect Fitting Service . |
