Camshaft Cover Component Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:

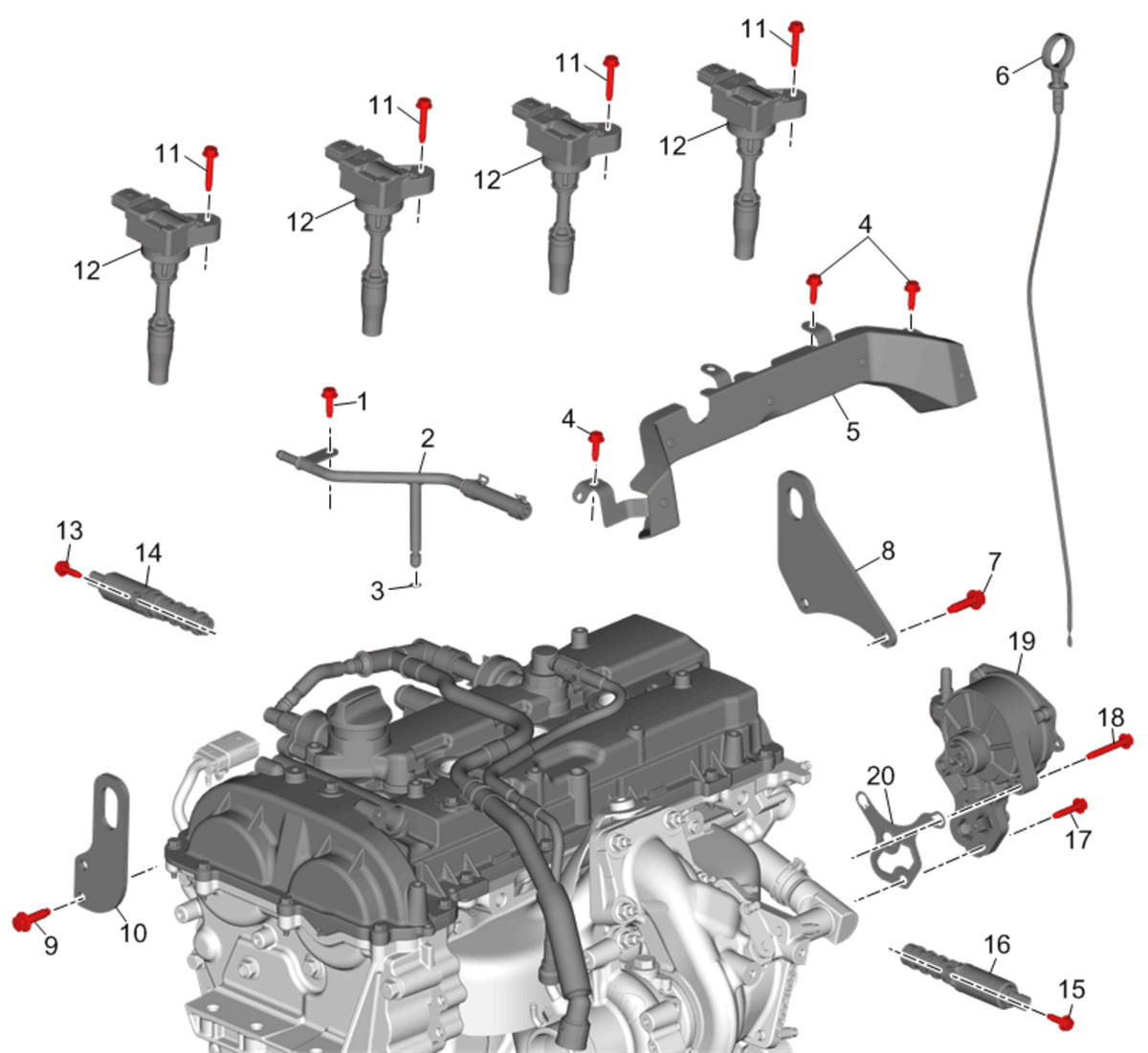

Callouts items in the following chart represent components shown in graphic above.
Camshaft Cover Component Removal
| Callout | Component Name |
|---|---|
| 1 | Engine Coolant Air Bleed Pipe Bolt |
| 2 | Engine Coolant Air Bleed Pipe |
| 3 | Engine Coolant Air Bleed Pipe Seal
NOTE:
DISCARD the seal |
| 4 | Camshaft Cover Heat Shield Bolt [3x]
NOTE:
An additional bolt retains the camshaft cover heat shield and the turbocharger coolant return pipe. |
| 5 | Camshaft Cover Heat Shield |
| 6 | Oil Level Indicator
NOTE:
Inspect and replace the oil indicator O-ring seals, if necessary. |
| 7 | Engine Lift Rear Bracket Bolt [2x] |
| 8 | Engine Lift Rear Bracket |
| 9 | Engine Lift Front Bracket Bolt [2x] |
| 10 | Engine Lift Front Bracket |
| 11 | Ignition Coil Bolt [4x] |
| 12 | Ignition Coil [4x] |
| 13 | Camshaft Position Actuator Solenoid Valve Bolt |
| 14 | Camshaft Position Actuator Solenoid Valve - Intake |
| 15 | Camshaft Position Actuator Solenoid Valve Bolt |
| 16 | Camshaft Position Actuator Solenoid Valve - Exhaust |
| 17 | Vacuum Pump Bolt |
| 18 | Vacuum Pump Bolt [2x] |
| 19 | Vacuum Pump |
| 20 | Vacuum Pump Gasket
NOTE:
DISCARD the gasket. |
