Camshaft Cover - Bottom
WARNING: This page is about a different variant/trim than selected.
NOTE:

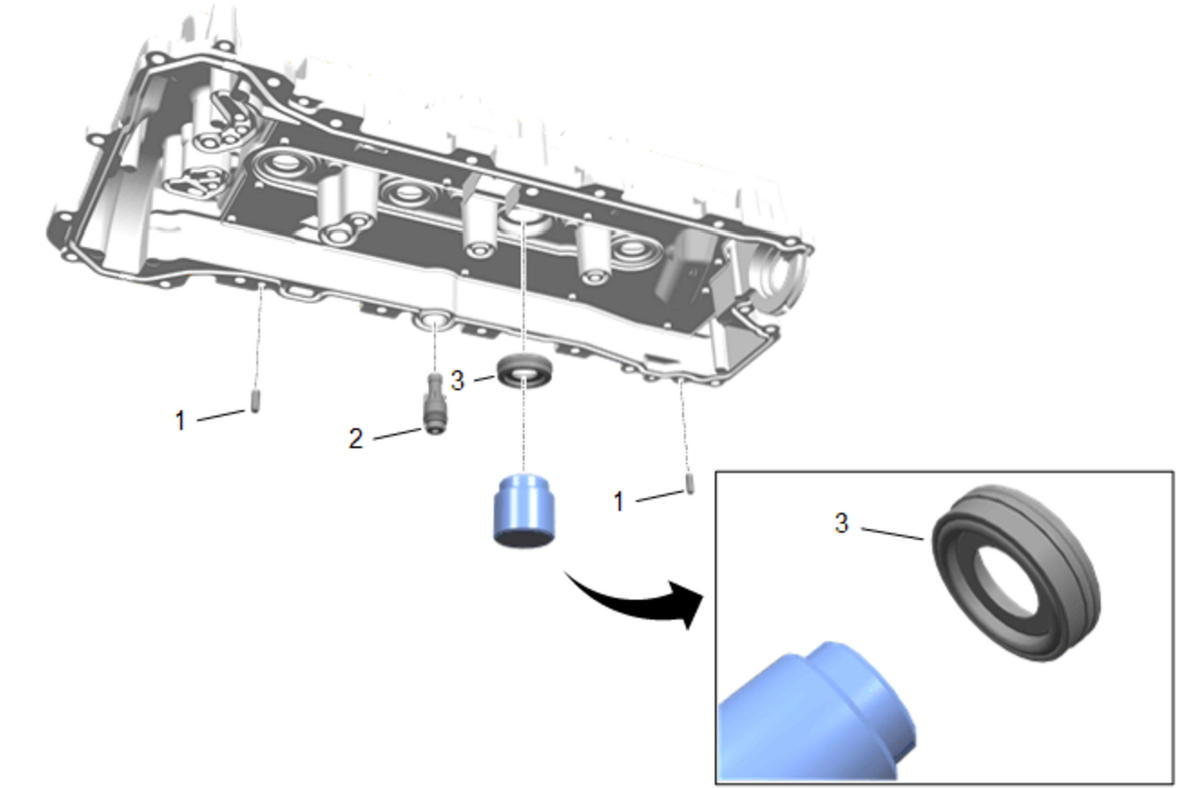

Callouts items in the following chart represent components shown in graphic above.
Camshaft Cover - Bottom
| Callout | Component Name |
|---|---|
| Preliminary Procedure Inspect each component, O-rings, and fasteners, and replace as necessary. |
|
| 1 | Camshaft Cover Locating Pin [2x] |
| 2 | Positive Crankcase Ventilation Valve |
| 3 | Spark Plug Shield Seal Special Tools EN - 50129 - GSV Sprocket Bearing Installer Equivalent regional tools: Special Tools . |
