Evaporative Emission Canister Purge Solenoid Valve Replacement

WARNING: This page is about a different variant/trim than selected.

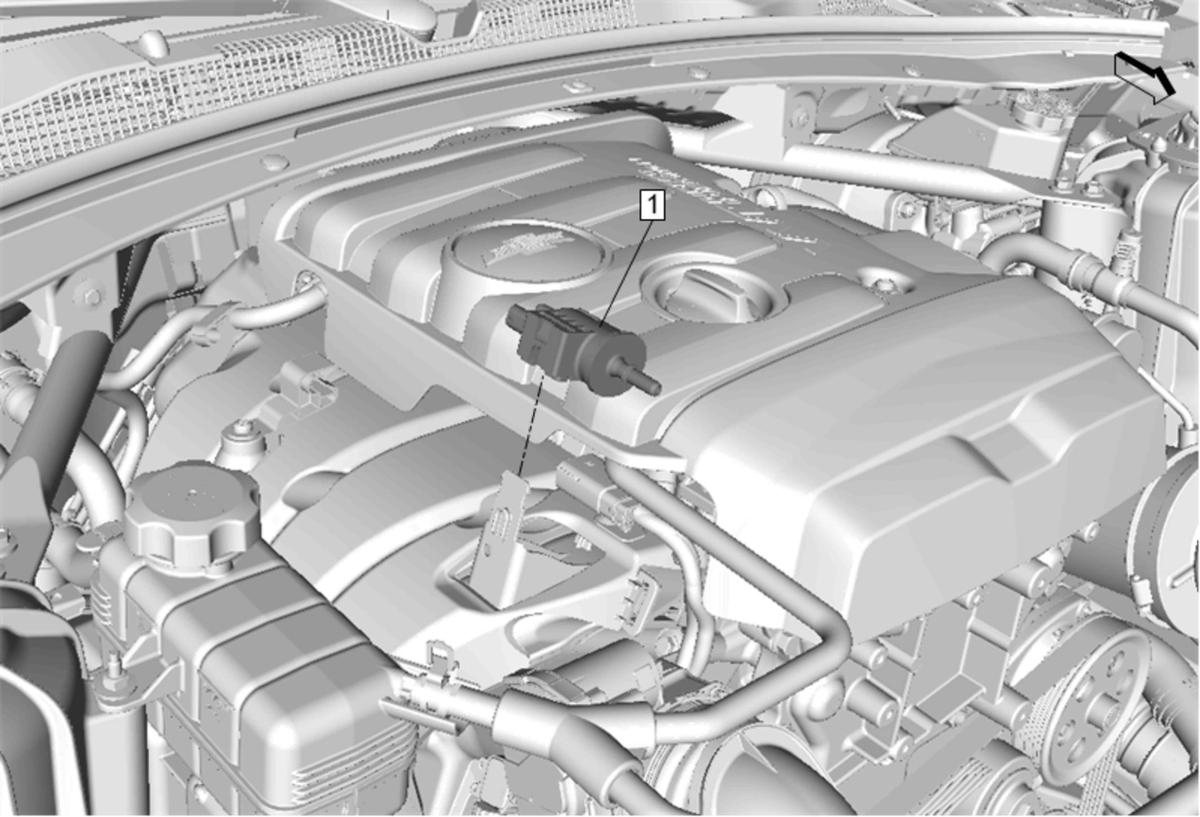

GM4286271Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Callout Component Name

Preliminary Procedures

  1. Evaporative Emission Canister Purge Tube Replacement
  2. Evaporative Emission Line Replacement - Engine to Chassis
1 Evaporative Emission Canister Purge Solenoid Valve

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tab.
