Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. GM4181468Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Purge Hose (1) @ Retainer (3) - Install

  2. Evaporative Emission Canister Purge Hose (1) @ Evaporative Emission Canister (2) - Connect - Plastic Collar Quick Connect Fitting Service

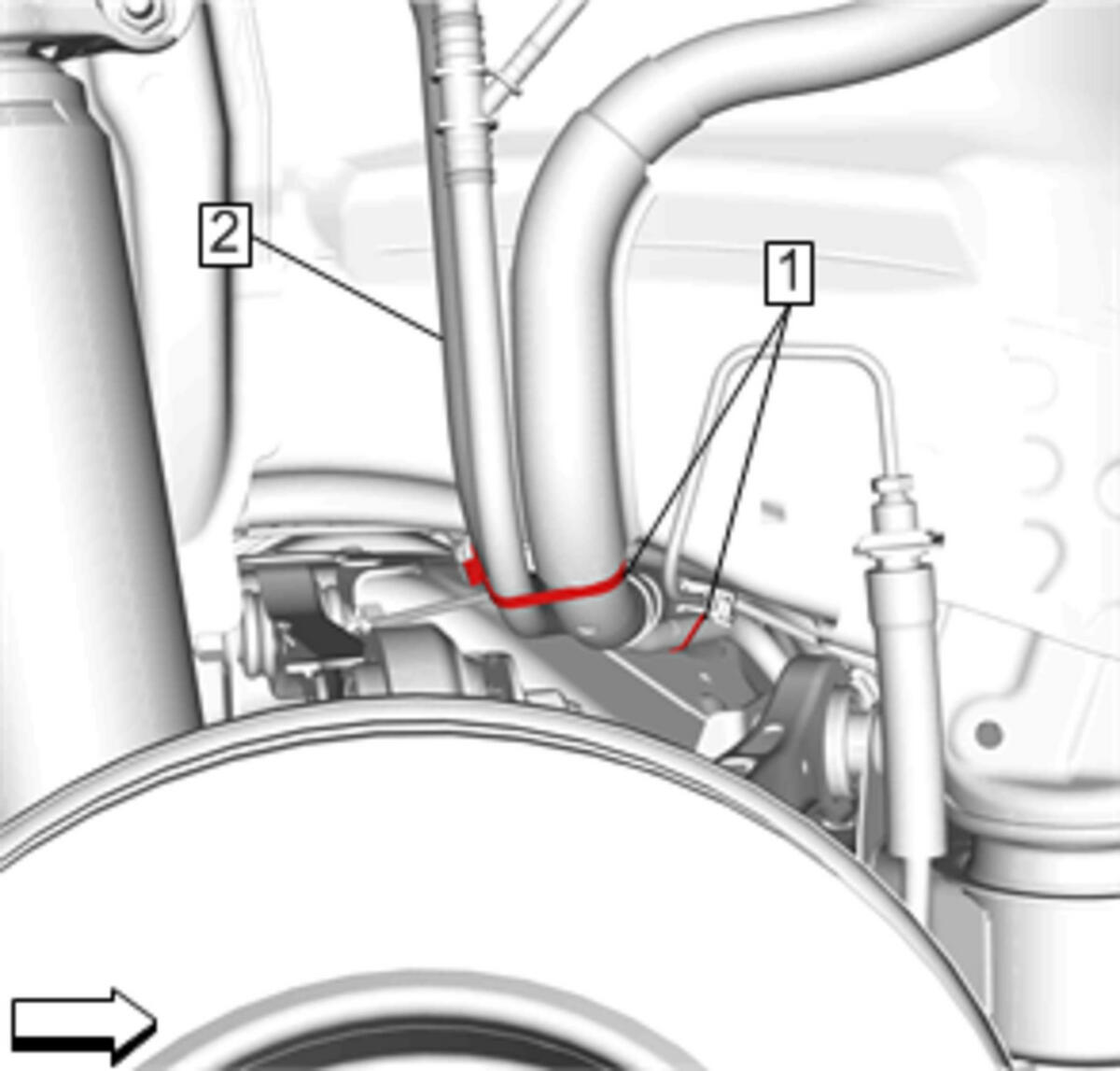

  3. GM4181464Courtesy of GENERAL MOTORS COMPANY

    Tie Strap (1) @ Evaporative Emission Canister Purge Hose (2) - Install NEW [2x]

  4. Rear Wheelhouse Liner Replacement , or Rear Wheelhouse Liner Replacement (ZL1) - Install
  5. GM4181469Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Purge Hose (1) @ Fuel Tank Vent Valve Hose(2) - Connect - Plastic Collar Quick Connect Fitting Service

  6. Lower the vehicle.
