Removal Procedure
WARNING: This page is about a different variant/trim than selected.
- Raise and support the vehicle. Lifting and Jacking the Vehicle (ZL1) , or Lifting and Jacking the Vehicle (Convertible)

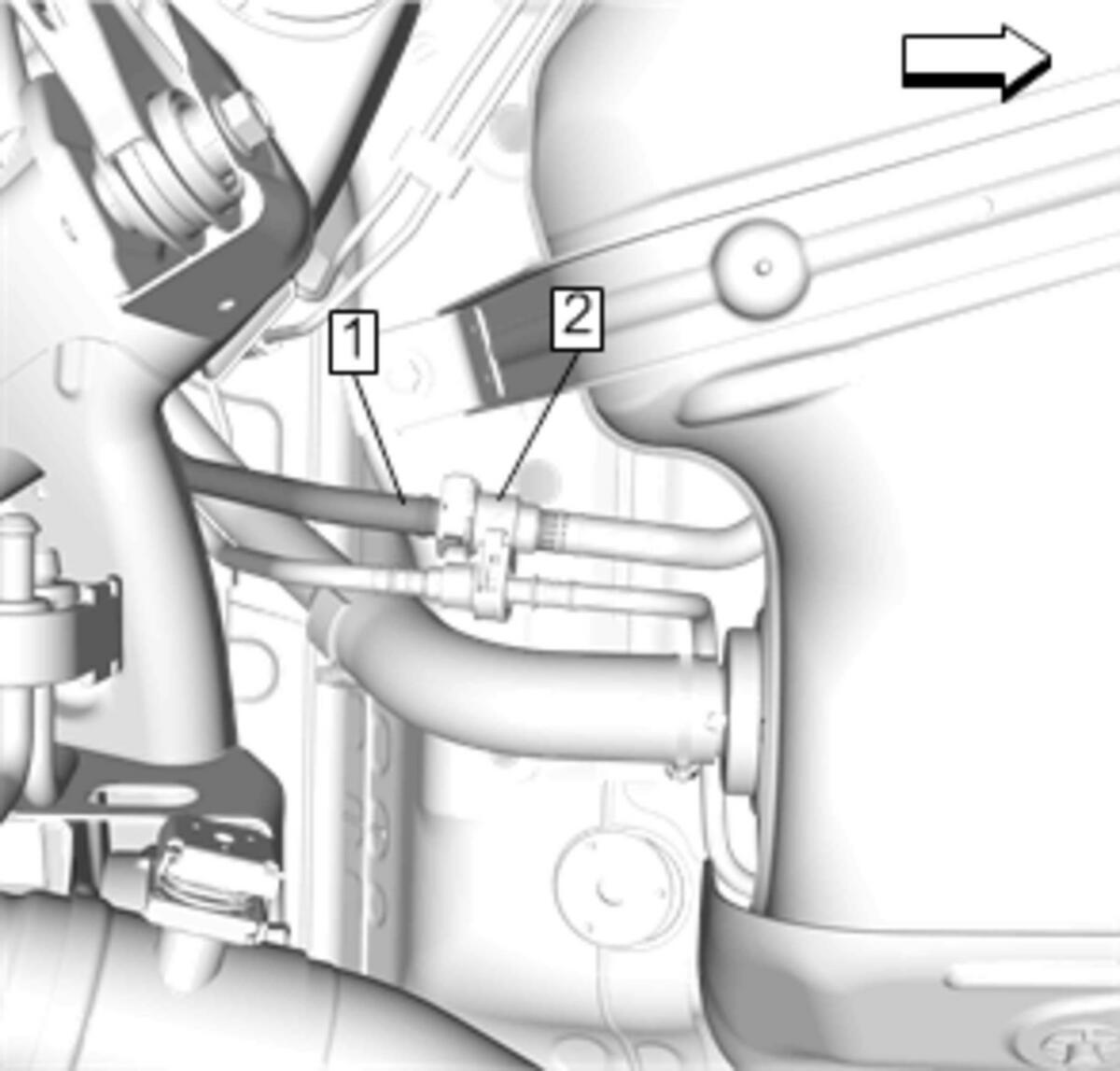

Evaporative Emission Canister Hose (1) @ Fuel Tank Vent Valve Hose(2) - Disconnect - Plastic Collar Quick Connect Fitting Service
- Rear Wheelhouse Liner Replacement , or Rear Wheelhouse Liner Replacement (ZL1) - Remove
- Fuel Tank Pressure Sensor Replacement - Remove

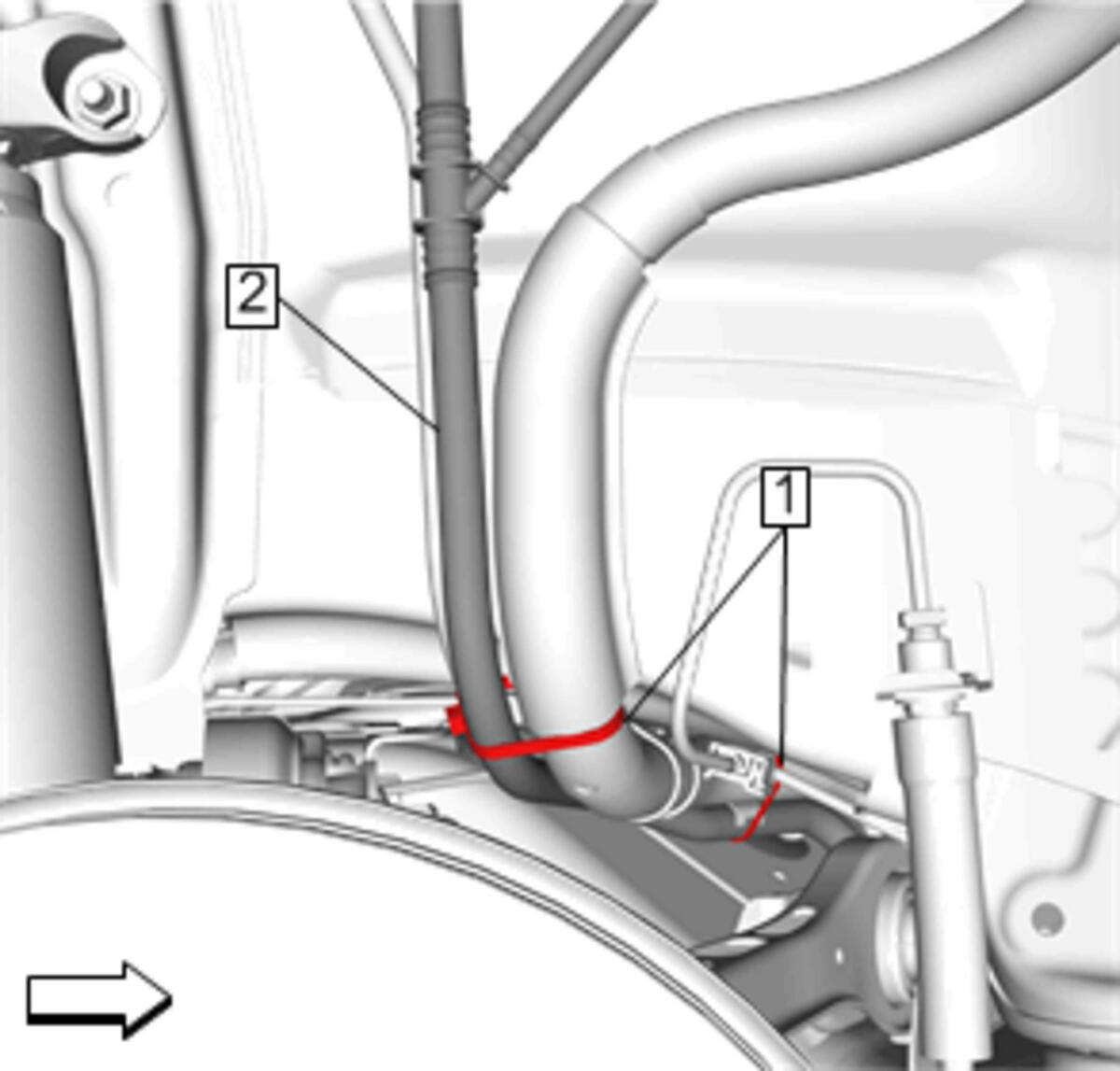

Tie Strap (1) @ Evaporative Emission Canister Hose (2) - Remove and DISCARD [2x]
Evaporative Emission Canister Hose (1) @ Fuel Tank Filler Pipe (2) - Disconnect - Plastic Collar Quick Connect Fitting Service
Evaporative Emission Canister Hose (1) @ Evaporative Emission Canister (2) - Disconnect - Plastic Collar Quick Connect Fitting Service
- Evaporative Emission Canister Hose (1) @ Retainer (3) - Remove
WARNING:
Refer to Diesel/Gasoline Vapors Warning .
WARNING:
Refer to Safety Glasses Warning .
