Upper Intake Manifold Cover Replacement

Courtesy of GENERAL MOTORS COMPANY

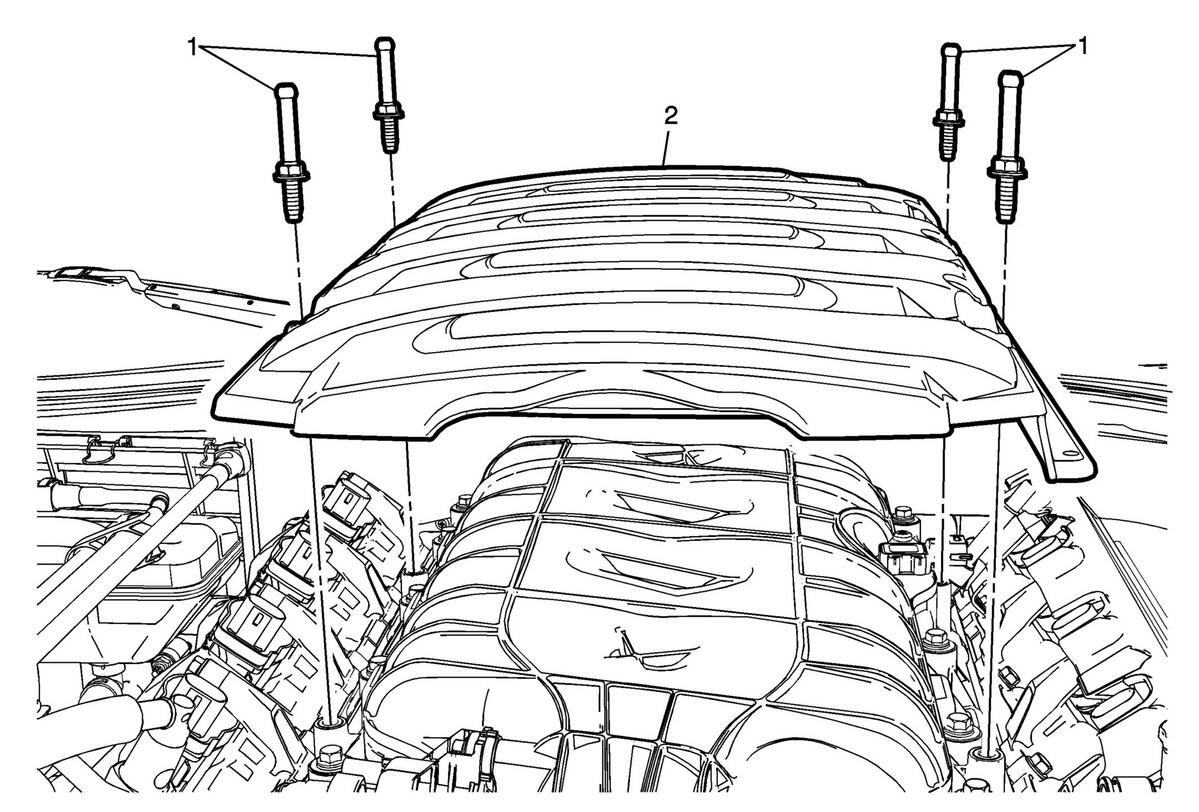

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Remove the left and right side intake manifold covers. Intake Manifold Cover Replacement (Left) , or Intake Manifold Cover Replacement (Right) . Fuel Feed Front Hose@Upper Intake Manifold Cover - Disconnect - Fuel Feed Front Hose Replacement
1	Upper Intake Manifold Cover Fasteners CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Upper Intake Manifold Cover Procedure Disconnect the manifold absolute pressure sensor electrical connector. Detach the engine wiring harness from the upper intake manifold cover.

Callout

Component Name

Preliminary Procedures

Remove the left and right side intake manifold covers. Intake Manifold Cover Replacement (Left) , or Intake Manifold Cover Replacement (Right) .
Fuel Feed Front Hose@Upper Intake Manifold Cover - Disconnect - Fuel Feed Front Hose Replacement

Upper Intake Manifold Cover Fasteners

CAUTION:

Tighten
10 N.m (89 lb in)

Upper Intake Manifold Cover
Procedure
