Head-Up Display Switch Replacement

Courtesy of GENERAL MOTORS COMPANY

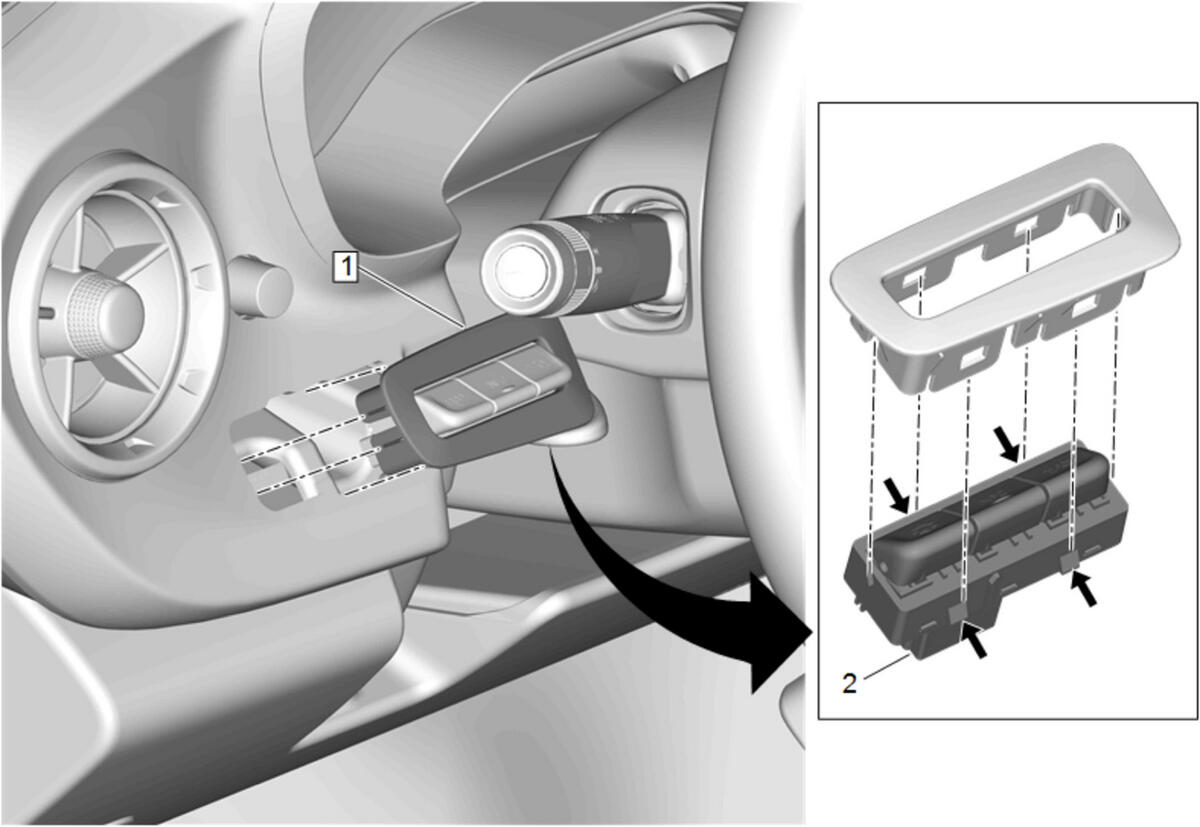

Callout	Component Name
1	Instrument Panel Switch Trim Plate Procedure Using a suitable tool on the left side of the instrument panel switch trim plate, release the trim plate from the instrument panel. Disconnect the electrical connector.
2	Head-Up Display Switch Procedure Release the tabs and remove the switch.

Callout

Component Name

Instrument Panel Switch Trim Plate

Procedure

Using a suitable tool on the left side of the instrument panel switch trim plate, release the trim plate from the instrument panel.
Disconnect the electrical connector.

Head-Up Display Switch
Procedure
Release the tabs and remove the switch.
