Front Floor Console Trim Plate Replacement (Manual)

Courtesy of GENERAL MOTORS COMPANY

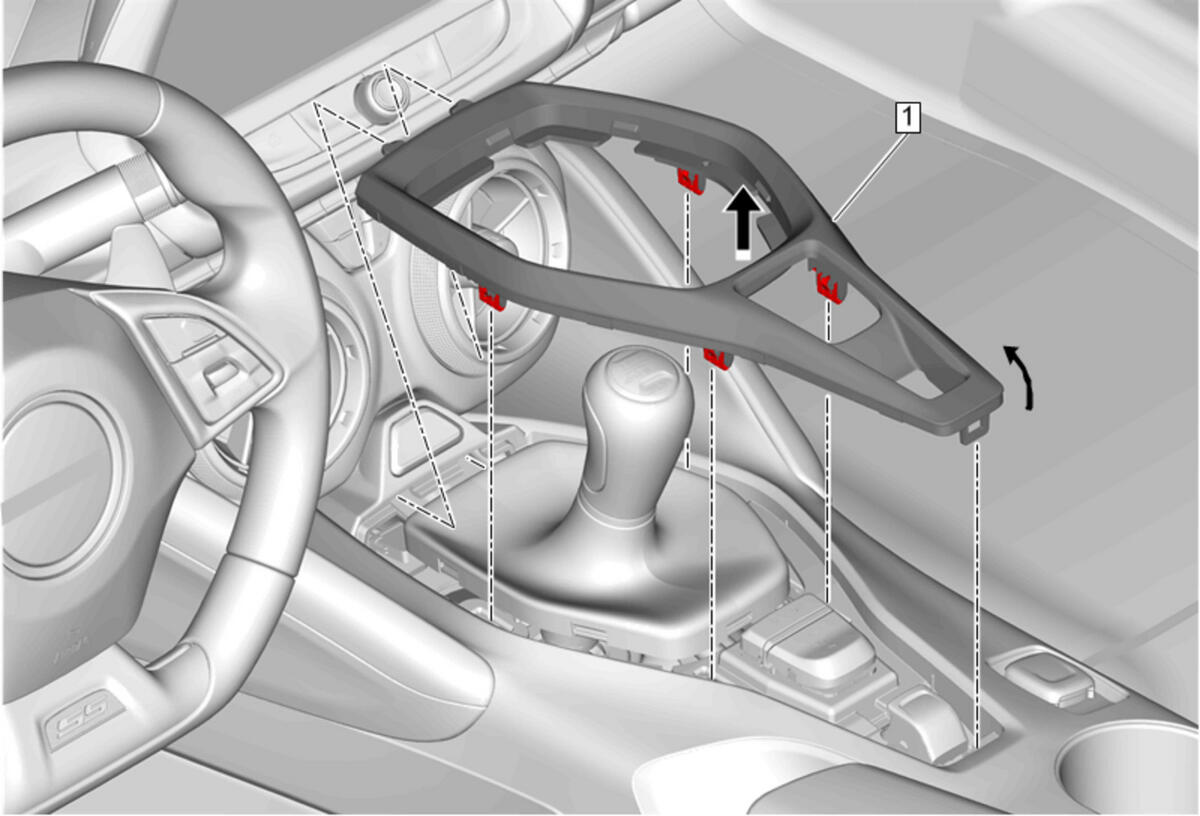

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure It is only necessary to release the boot from the trim plate. Transmission Control Lever Boot Replacement
1	Front Floor Console Trim Plate Procedure Grab the trim plate just behind the shifter and gentle pull up. Pull the trim plate rearward to clear the tabs.

Callout

Component Name

Preliminary Procedure
It is only necessary to release the boot from the trim plate. Transmission Control Lever Boot Replacement

Front Floor Console Trim Plate

Procedure
