Installation Procedure

Brake Hose - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Install NEW brake hose fitting gaskets.

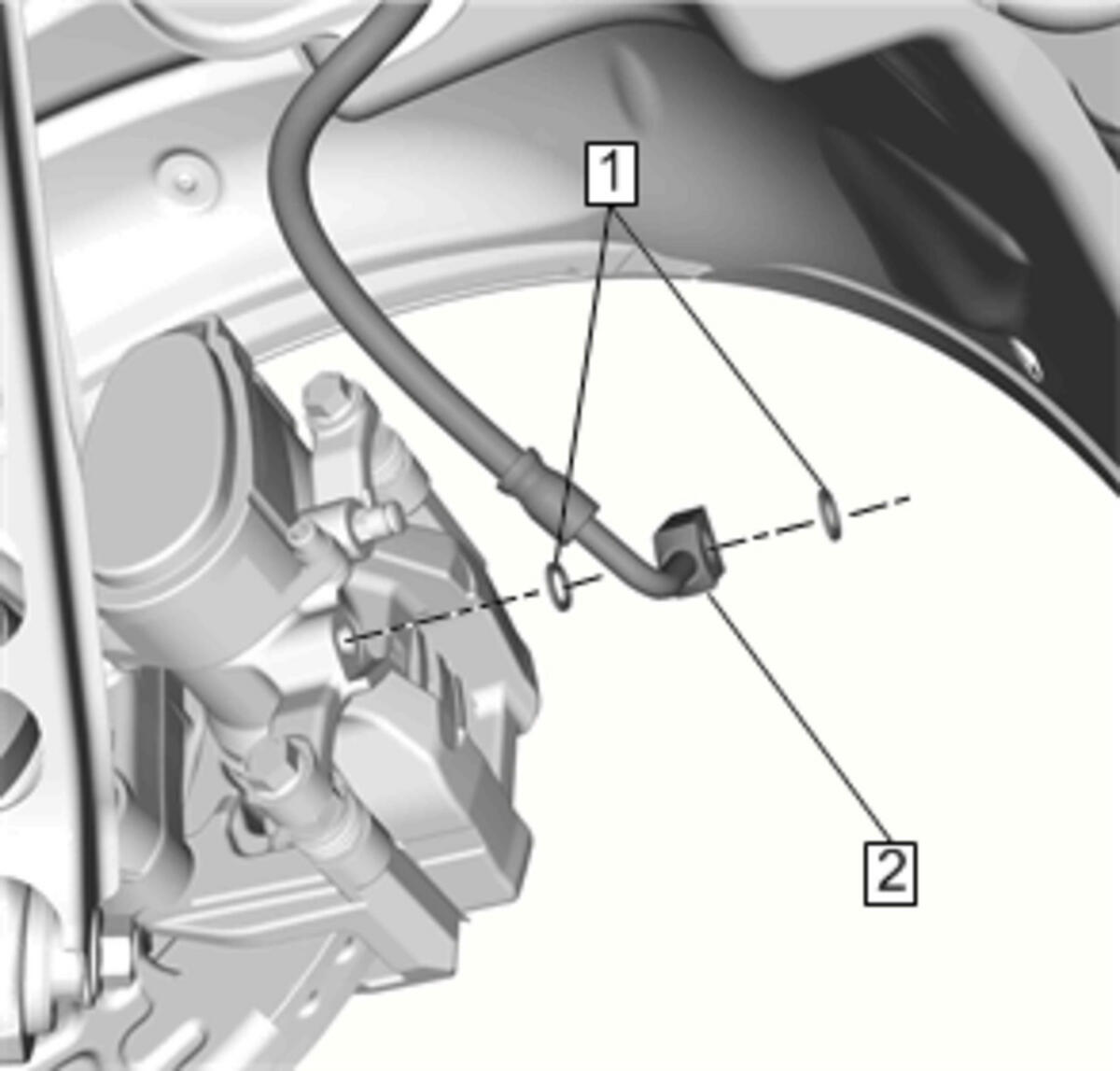

Rear Brake Hose Fitting Gasket (1) [2x]@ Brake Hose Fitting (2) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

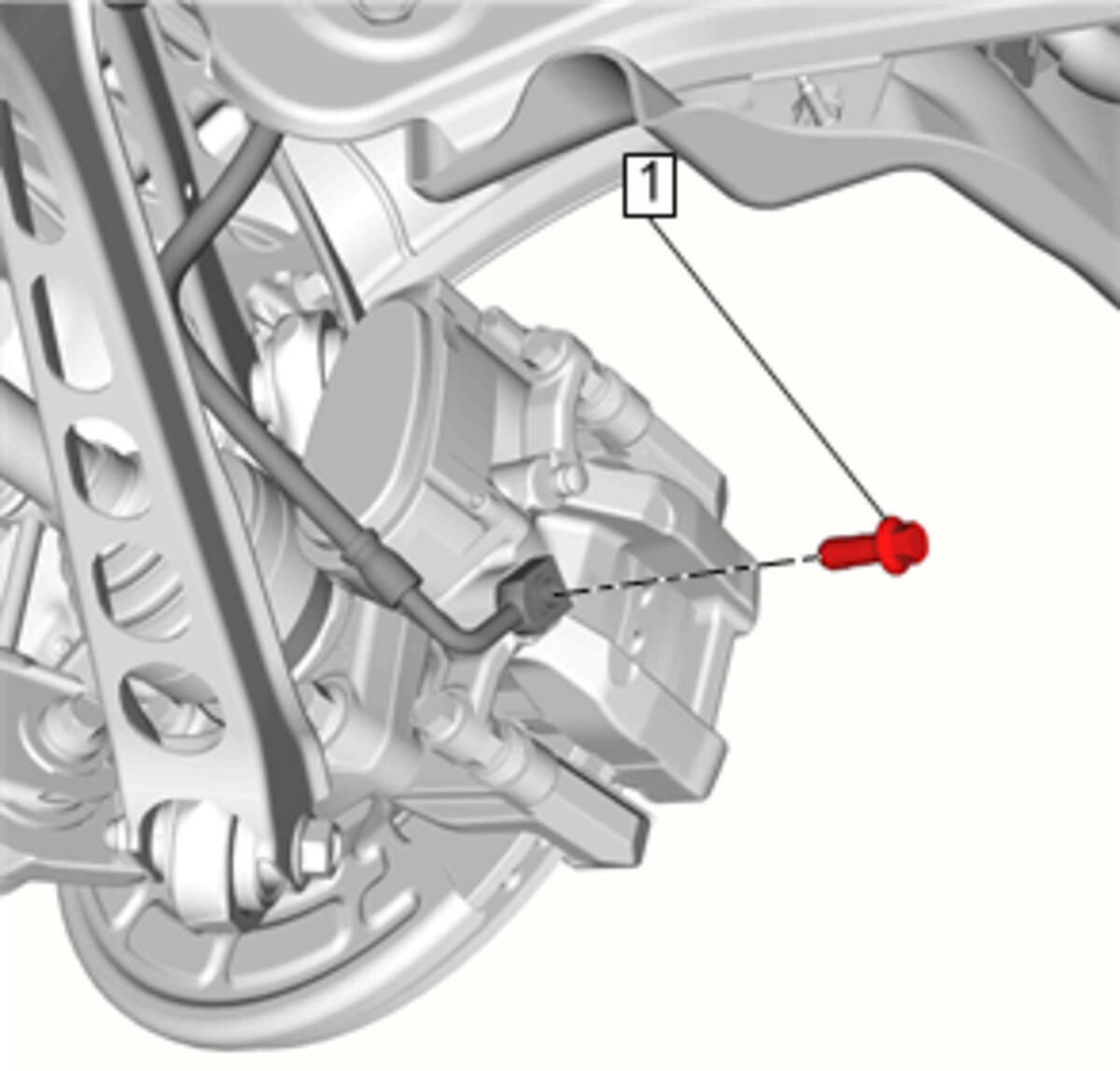

Brake Hose Fitting Bolt (1) - Install and tighten 40 N.m (30 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Brake Hose Retainer (1) - Install
Courtesy of GENERAL MOTORS COMPANY

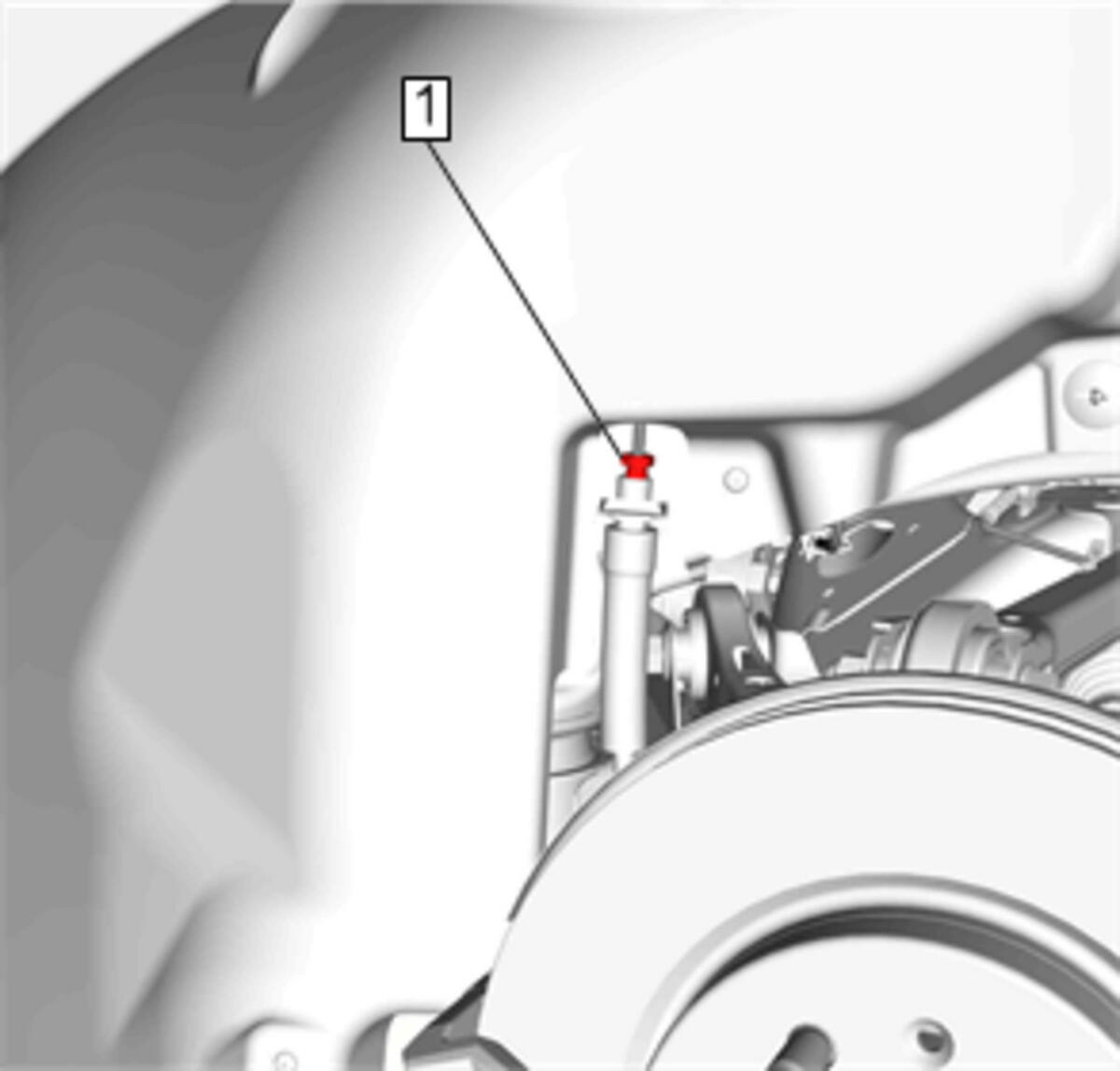

Brake Pipe Fitting (1) - Install and tighten18 N.m (13 lb ft)
Bleed the brake system. Hydraulic Brake System Bleeding (Manual J55, J6G) Hydraulic Brake System Bleeding (Pressure J55, J6G) Hydraulic Brake System Bleeding (Manual JL9) Hydraulic Brake System Bleeding (Pressure JL9)
Install the tire and wheel assembly. Tire and Wheel Removal and Installation
