Installation Procedure

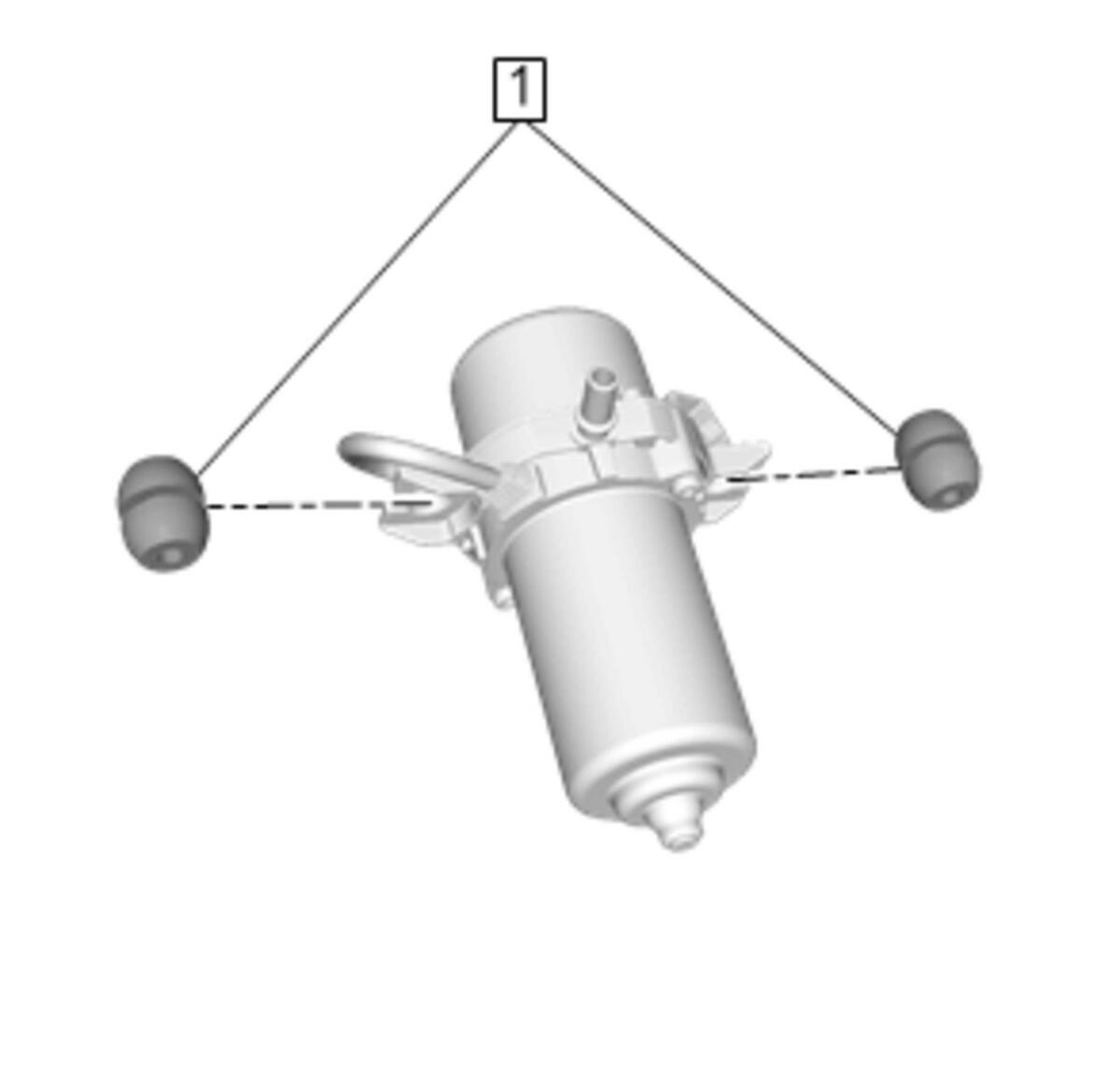

  1. GM4063131Courtesy of GENERAL MOTORS COMPANY

    Power Brake Booster Pump Dampener (1) - Install[2x]

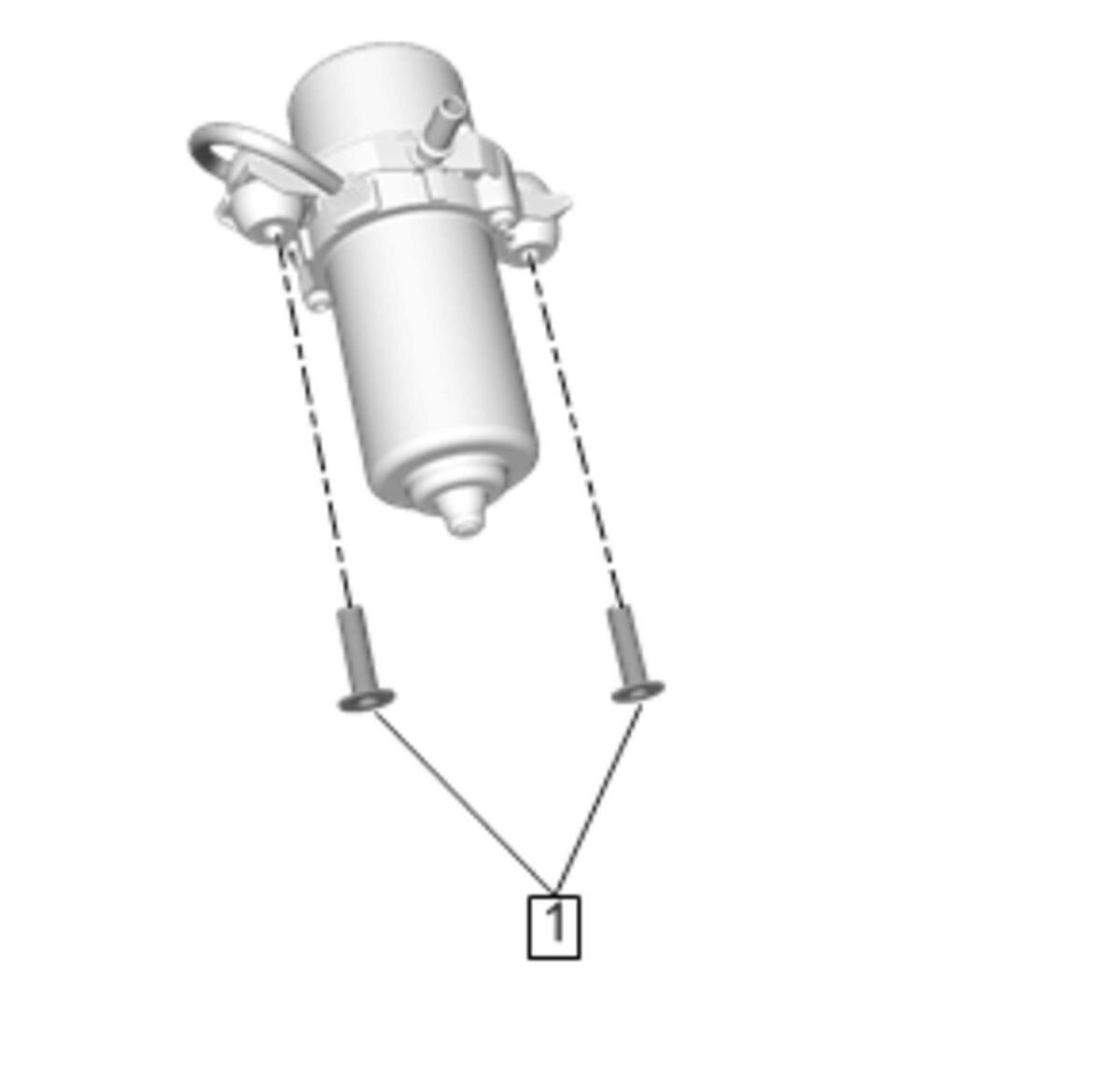

  2. GM4063128Courtesy of GENERAL MOTORS COMPANY

    Power Brake Booster Pump Bushing (1) - Install[2x]

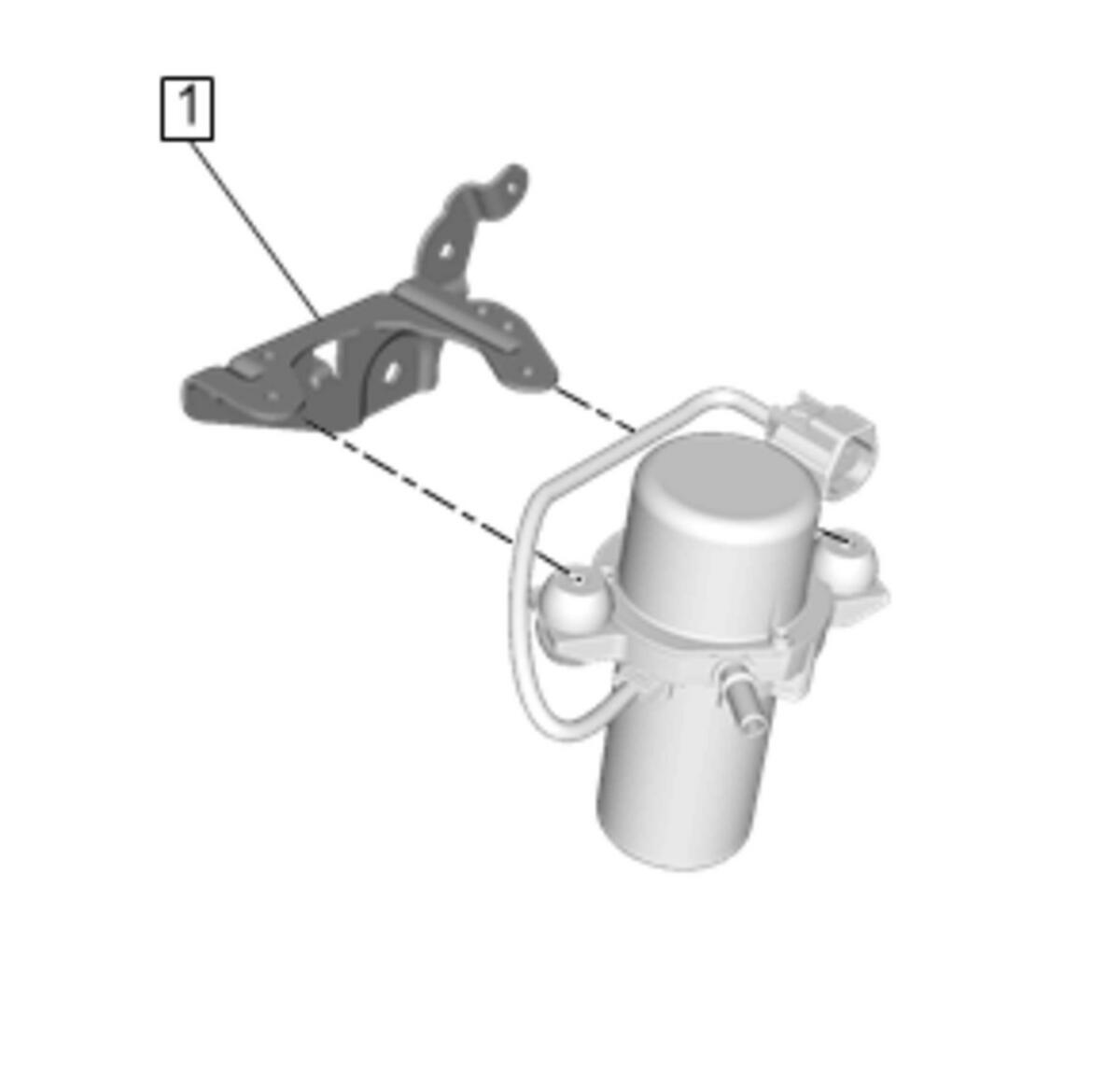

  3. GM4063124Courtesy of GENERAL MOTORS COMPANY

    Power Brake Booster Pump Bracket (1) - Install

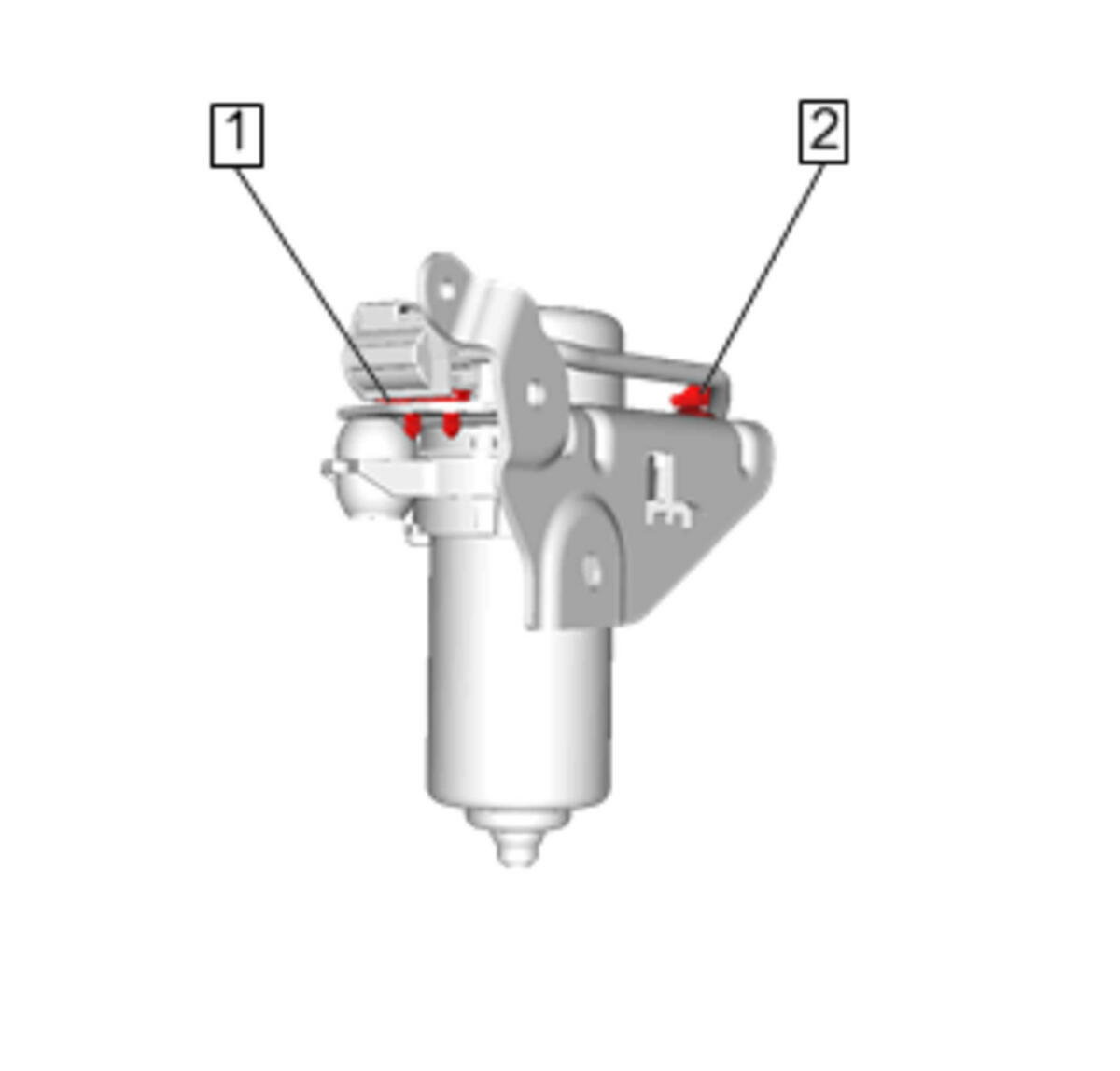

  4. GM4063122Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) - Install

  5. Retainer (2) - Install

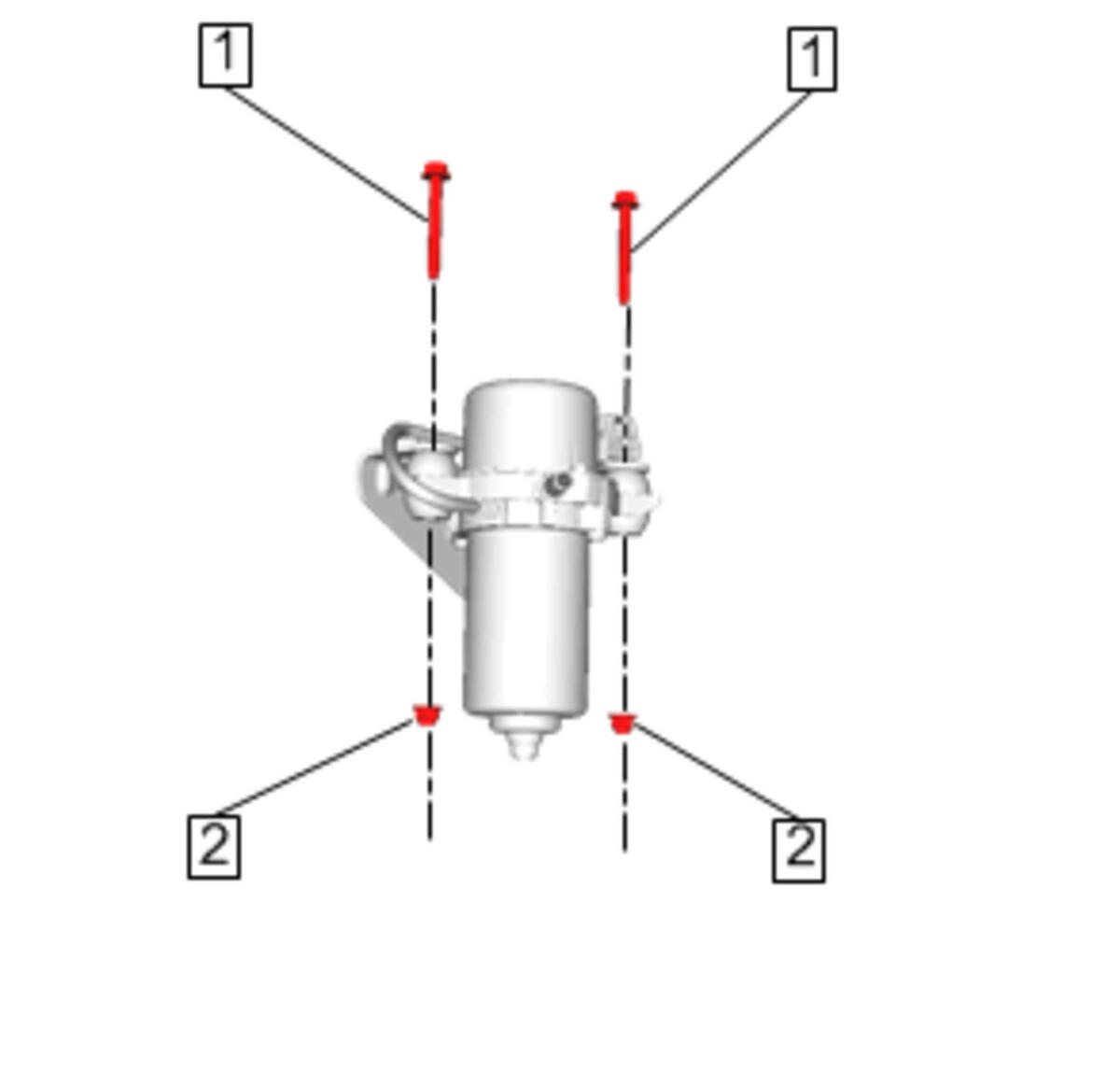

  6. GM4063121Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Power Brake Booster Pump Bolt (1) - Install[2x]

  7. Power Brake Booster Pump Nut (2) - Install and tighten[2x] 22 N.m (16 lb ft)

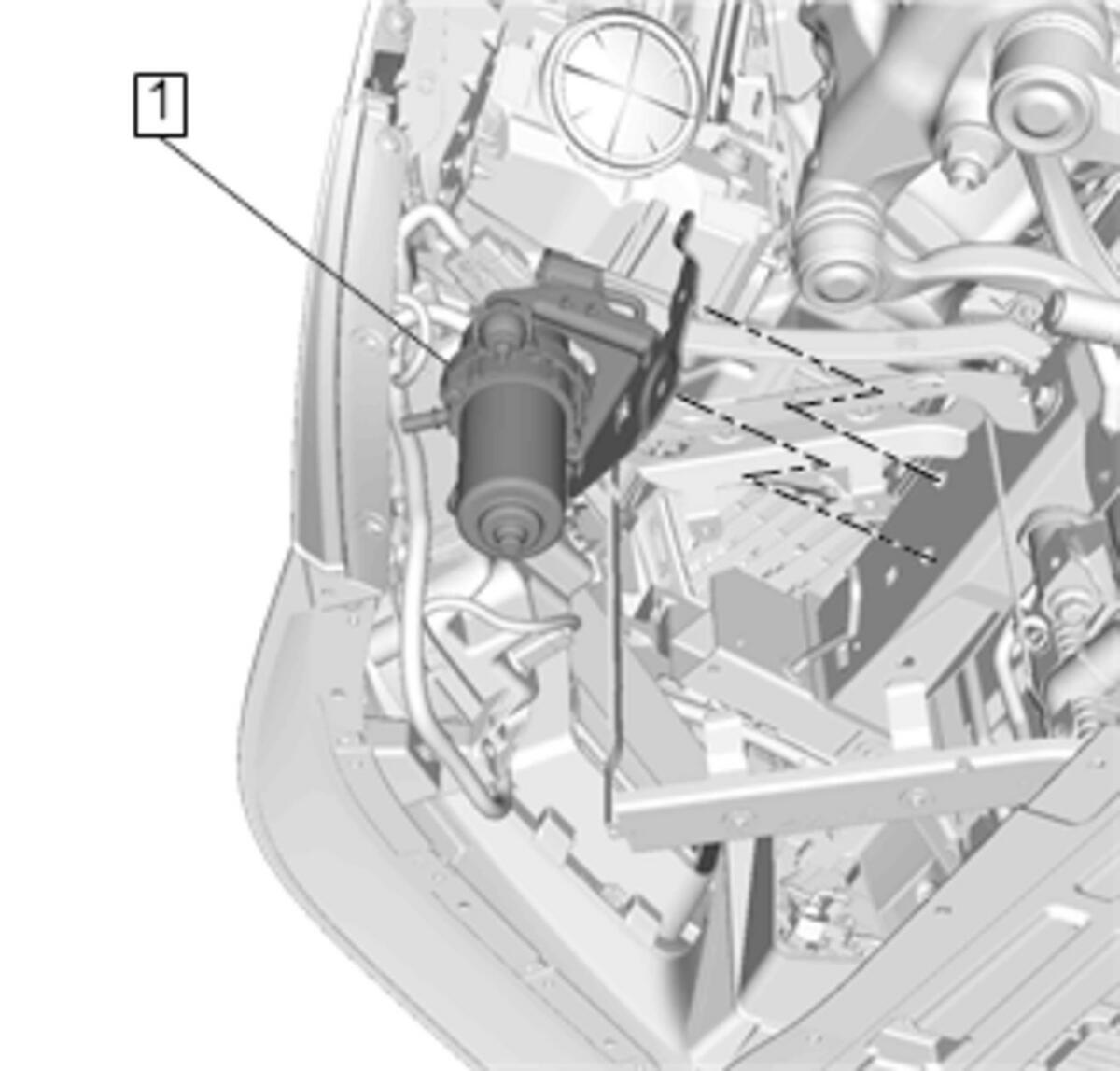

  8. GM4063120Courtesy of GENERAL MOTORS COMPANY

    Power Brake Booster Pump (1) - Install

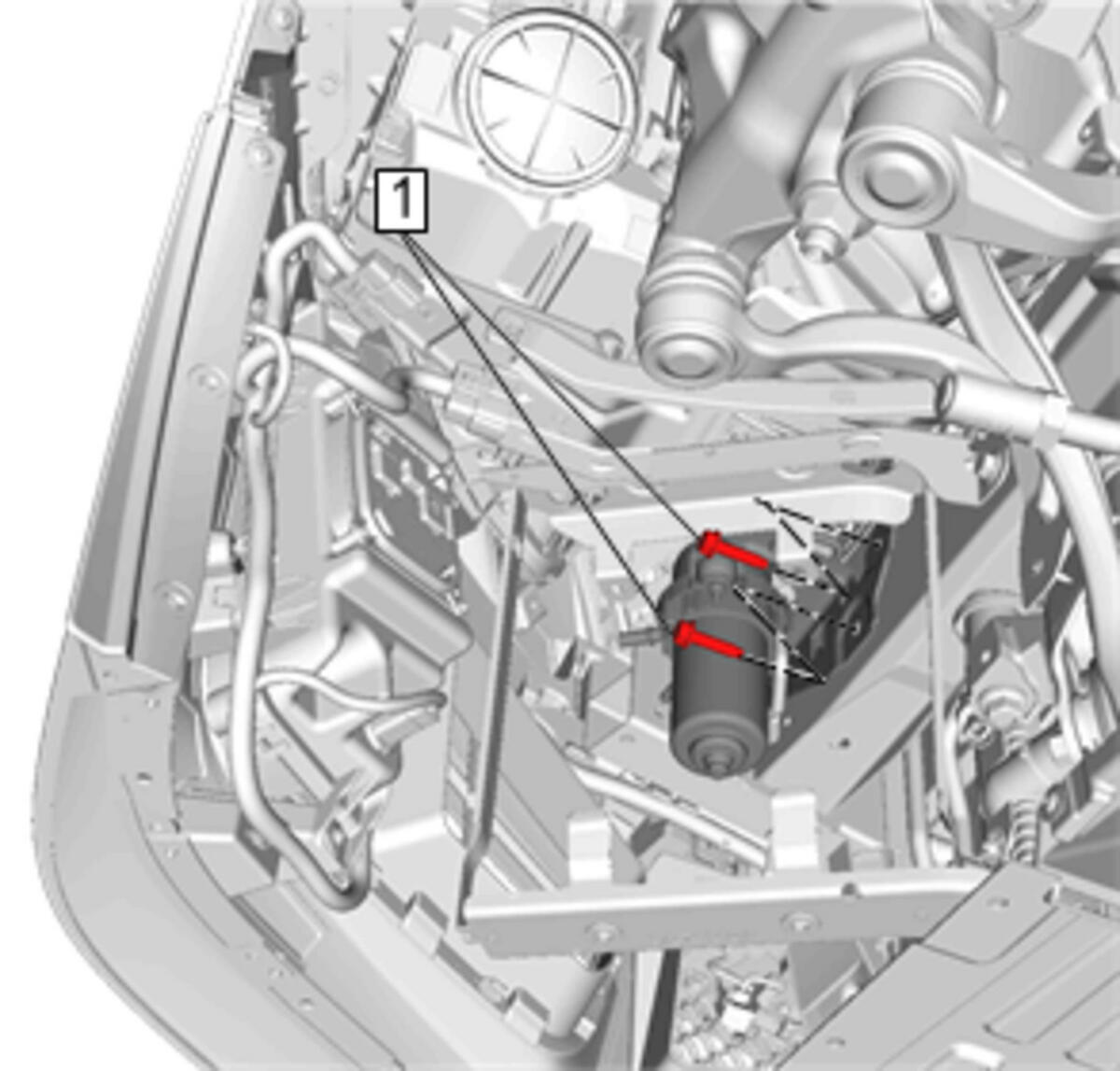

  9. GM4063117Courtesy of GENERAL MOTORS COMPANY

    Power Brake Booster Pump Bracket Bolt (1) - Install and tighten[2x] 25 N.m (18 lb ft)

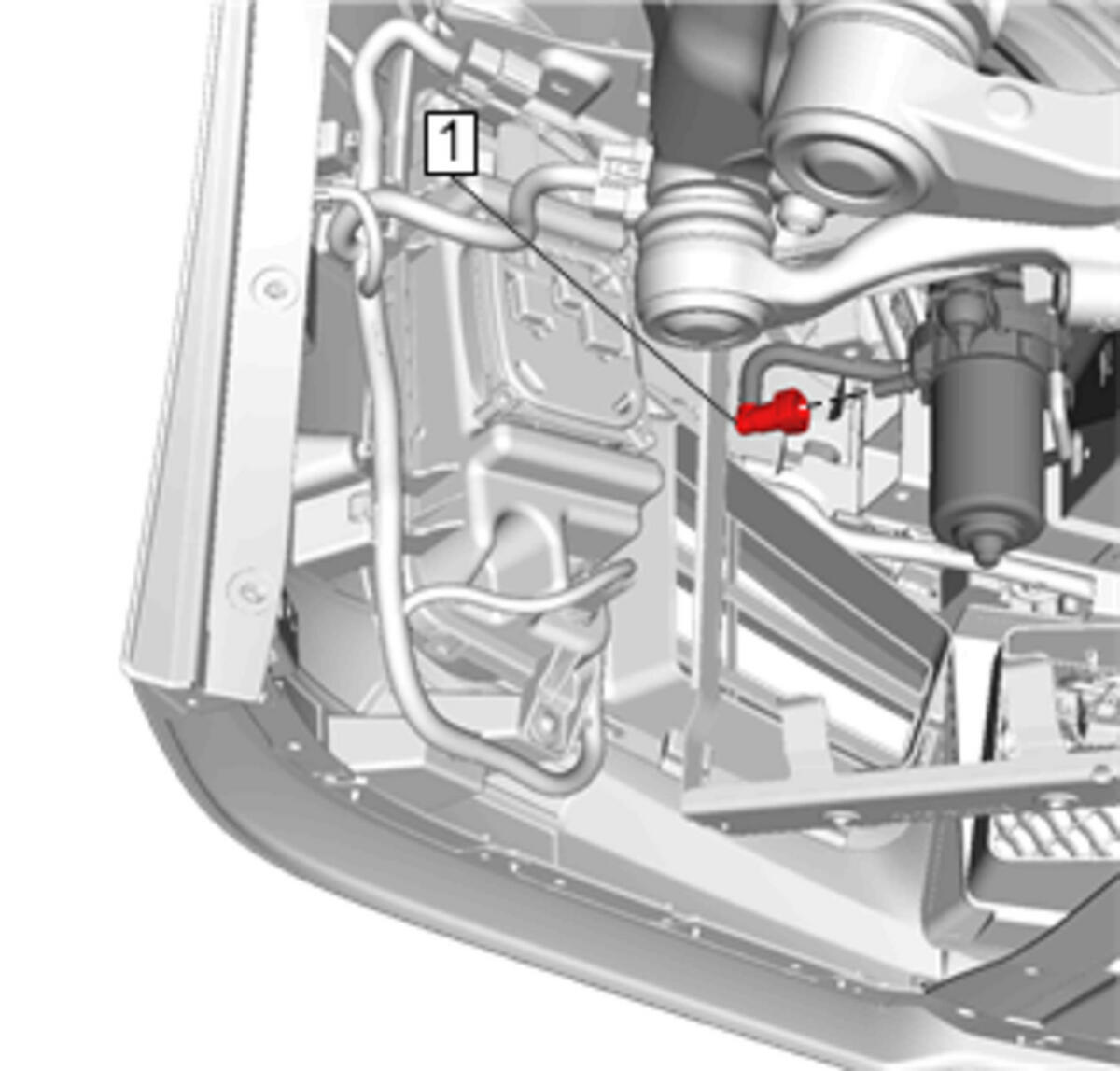

  10. GM4063114Courtesy of GENERAL MOTORS COMPANY

    Quick Connect Fitting (1) - Connect

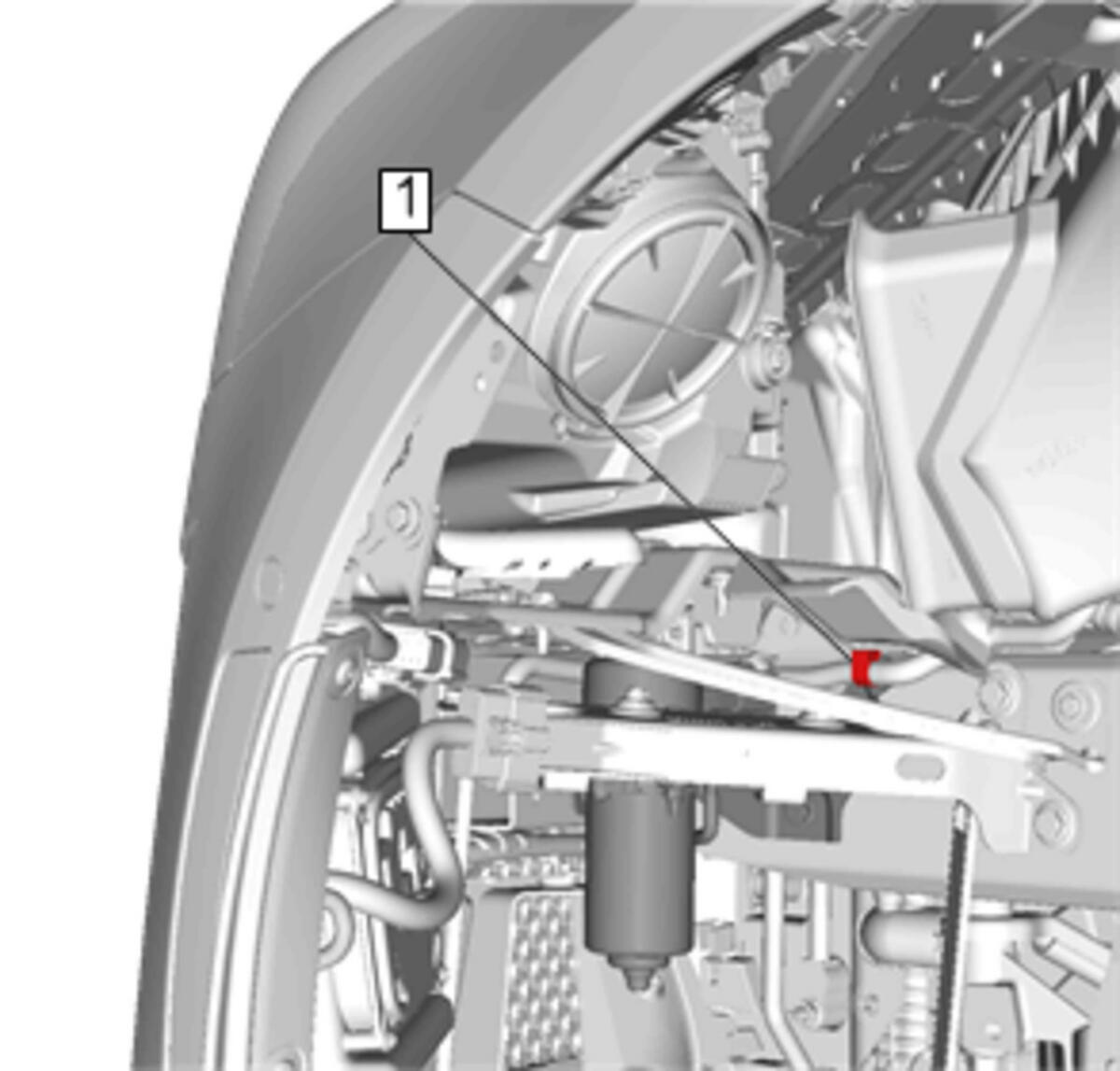

  11. GM4063110Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) - Install

  12. Connect the power brake booster pump vent hose.
  13. Connect the power brake booster pump electrical connector.
  14. Charge Air Cooler - Left Side - Install - Charge Air Cooler Replacement - Left Side (LGX with V18)Charge Air Cooler Replacement - Left Side (LT1 V18)Charge Air Cooler Replacement - Left Side (LTG with V18)Charge Air Cooler Replacement - Left Side (LT4)
