Installation Procedure

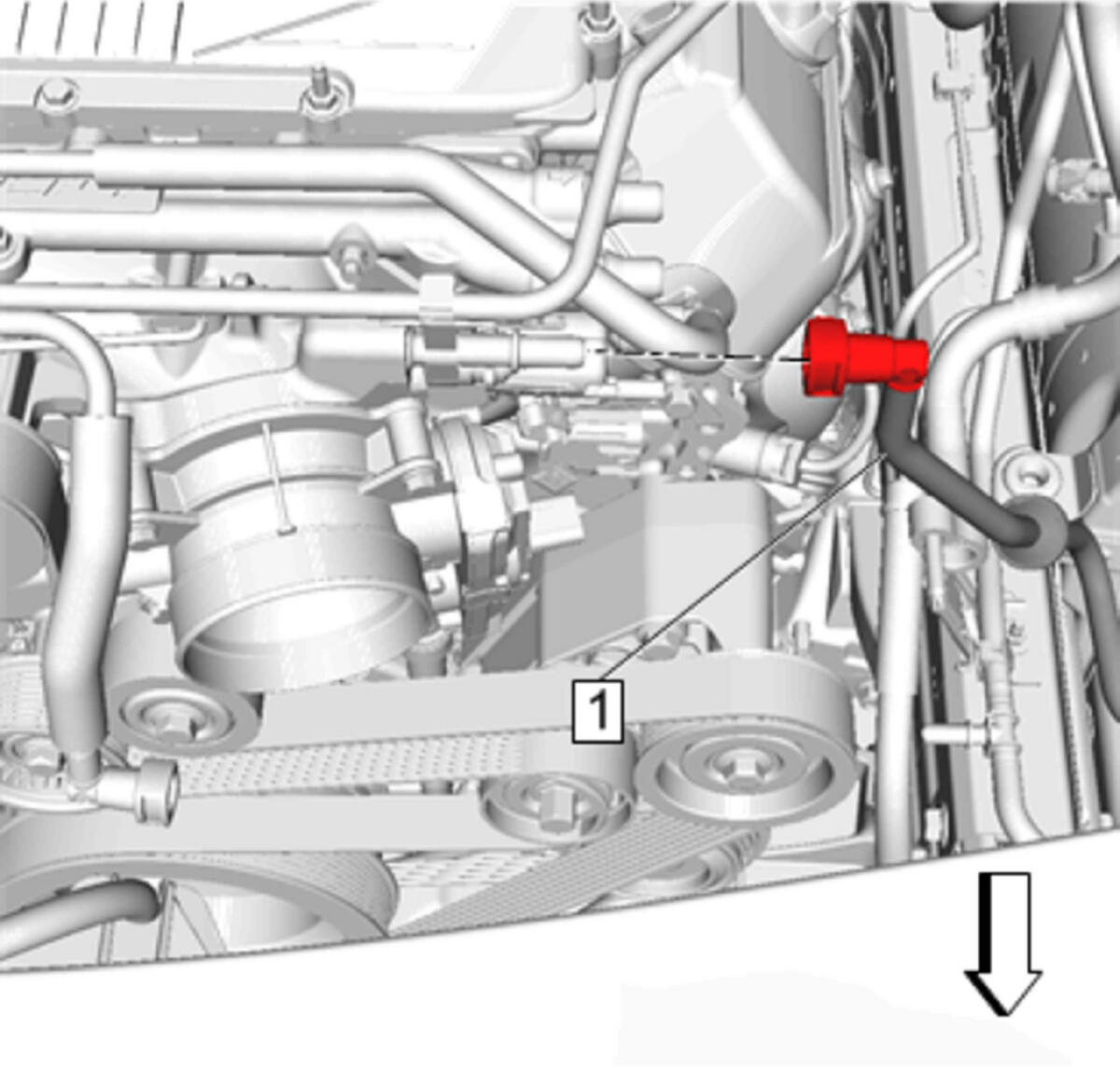

  1. GM4561508Courtesy of GENERAL MOTORS COMPANY

    Power Brake Booster Pump Inlet Pipe (1) - Install

  2. GM4063371Courtesy of GENERAL MOTORS COMPANY

    Quick Connect Fitting (1) - Connect

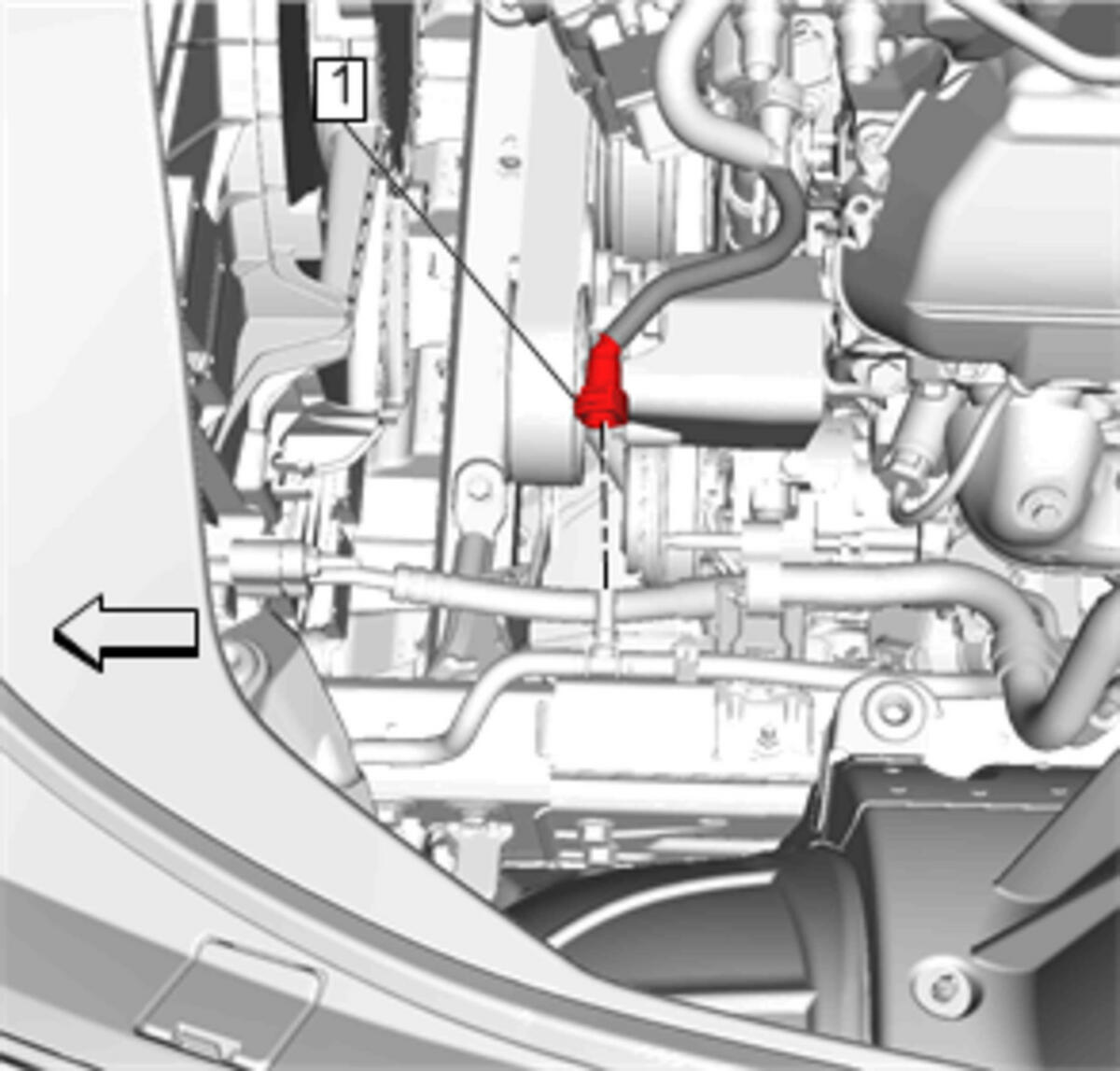

  3. GM4063365Courtesy of GENERAL MOTORS COMPANY

    Quick Connect Fitting (1) - Connect

  4. Air Cleaner Assembly - Install - Air Cleaner Assembly Replacement (LT1)Air Cleaner Assembly Replacement (LT4)
