Home >> Chevrolet >> 2023 >> Camaro ZL1, 2D Convertible, Standard Trans >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Hydraulic Brakes >> Repair Instructions >> Power Brake Booster Pump Inlet Pipe Replacement (LT1) >> Installation Procedure

Installation Procedure

  1. Power Brake Booster Inlet Pipe - Install

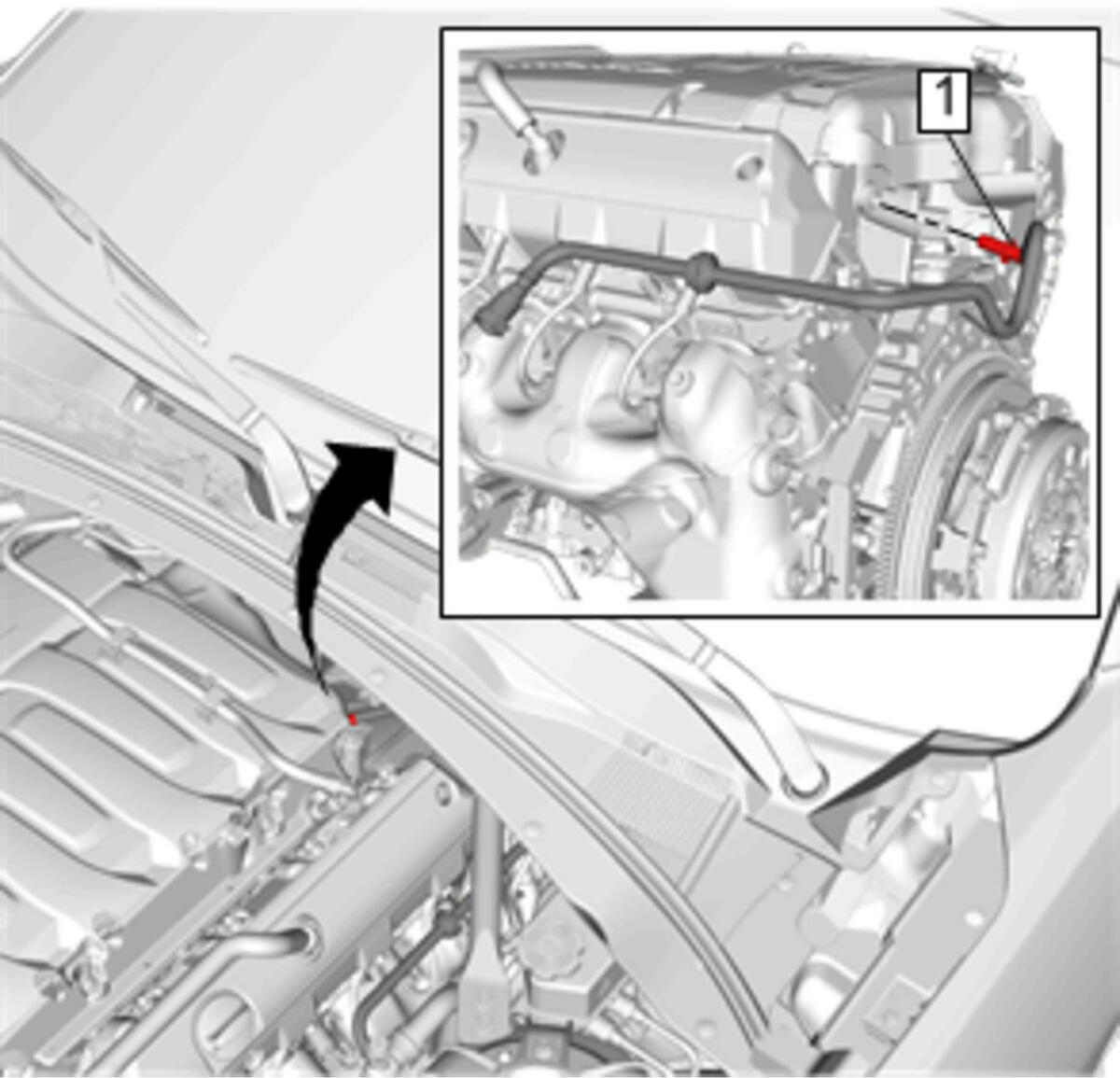

  2. GM4182669Courtesy of GENERAL MOTORS COMPANY

    Power Brake Booster Inlet Pipe Fitting (1) @Intake Manifold - Install

  3. GM4182668Courtesy of GENERAL MOTORS COMPANY

    Power Brake Booster Inlet Pipe Quick Connect (1) @Vacuum Pipe - Connect

  4. Valve Rocker Arm Cover Insulator Replacement - Left Side (LT1)Valve Rocker Arm Cover Insulator Replacement - Left Side (LT4) - Install
  5. Front End Sheet Metal Diagonal Brace Replacement - Left Side - Install
