Installation Procedure

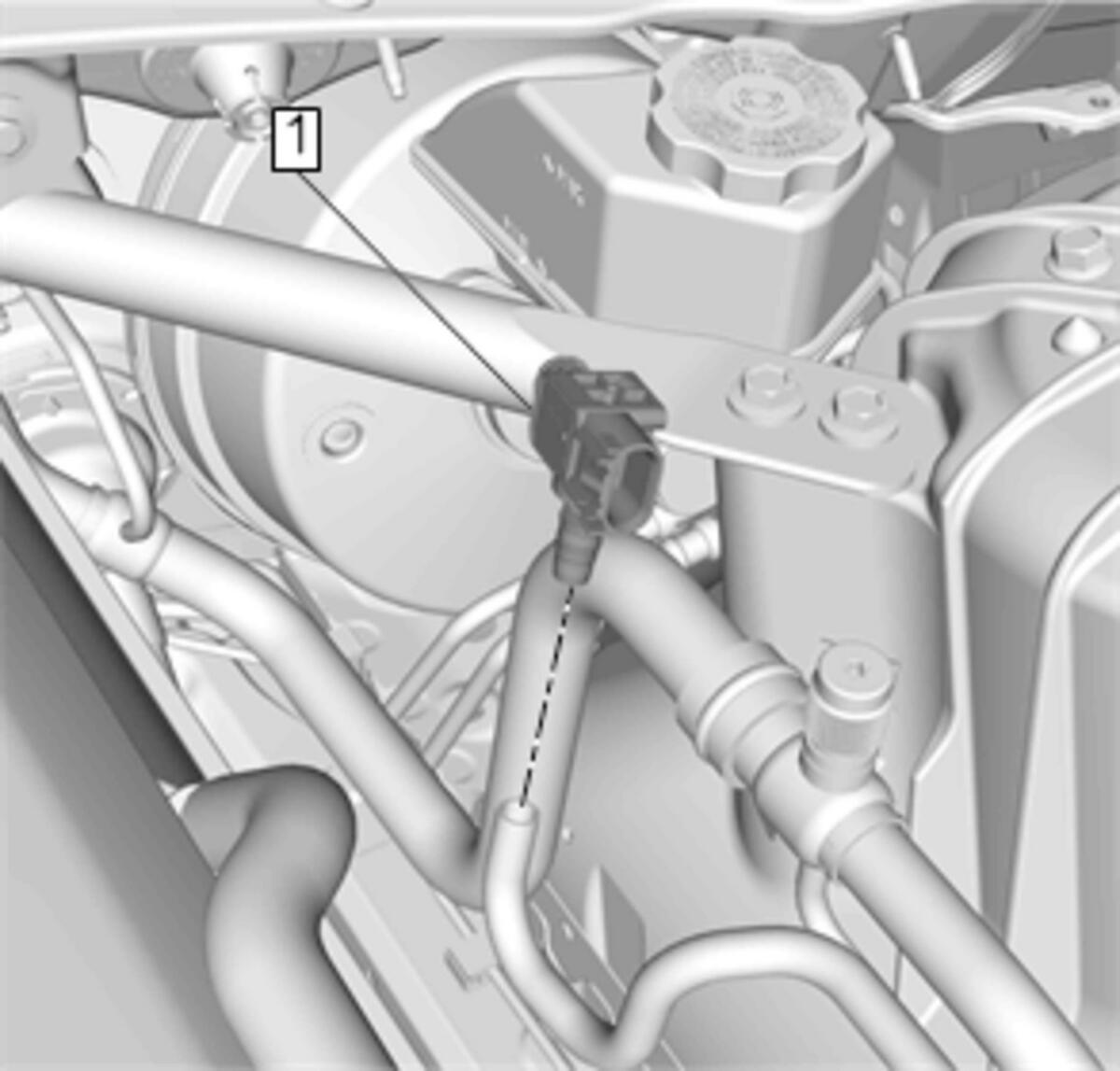

  1. GM4182847Courtesy of GENERAL MOTORS COMPANY

    Power Brake Booster Pressure Sensor (1) - Install

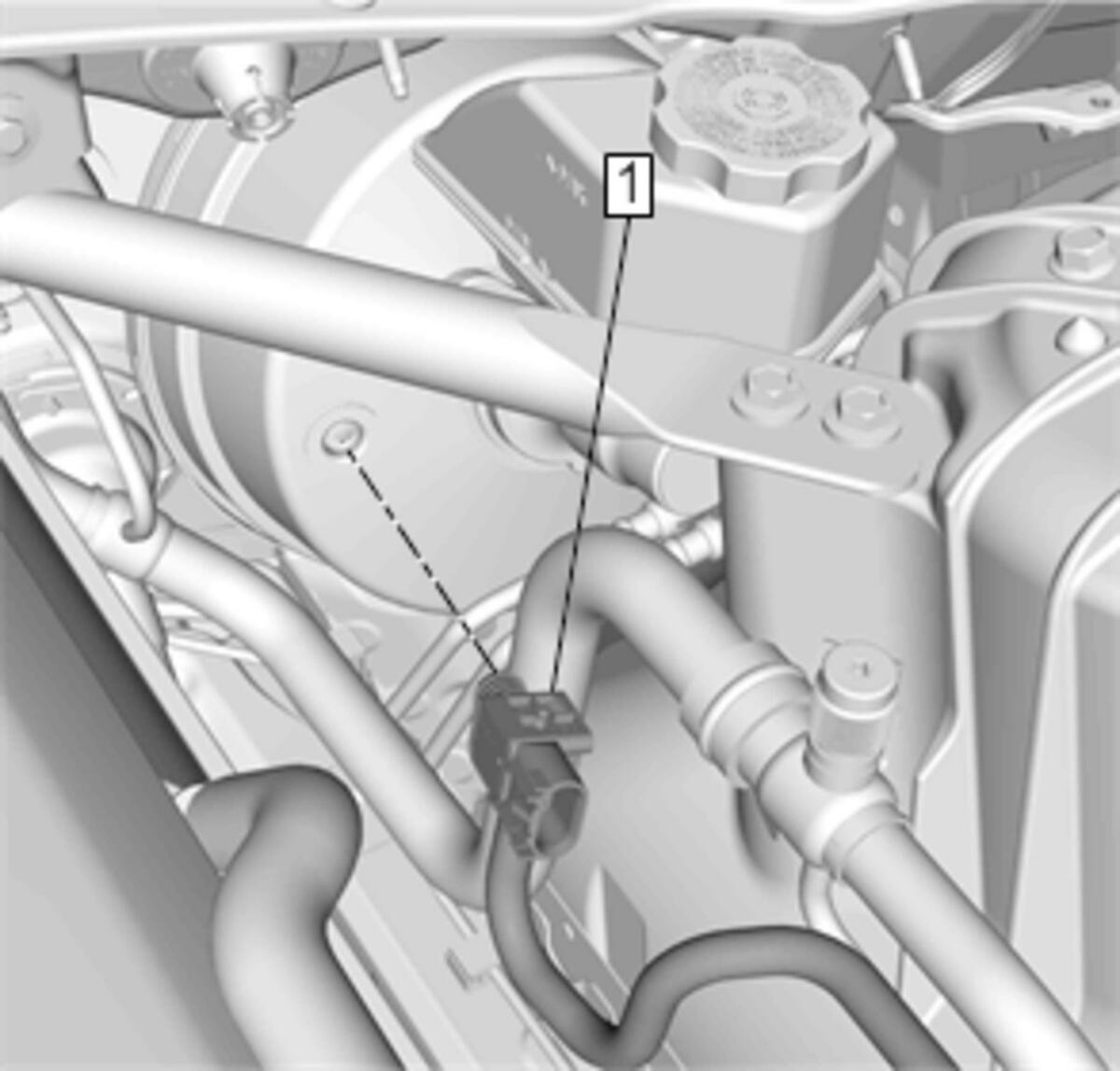

  2. GM4182820Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    A small amount of denatured alcohol may be used to ease assembly.

    Power Brake Booster Pressure Sensor (1) @Power Brake Booster - Install

  3. Connect the power brake booster pressure sensor electrical connector.
