Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Front Brake Hose - Install

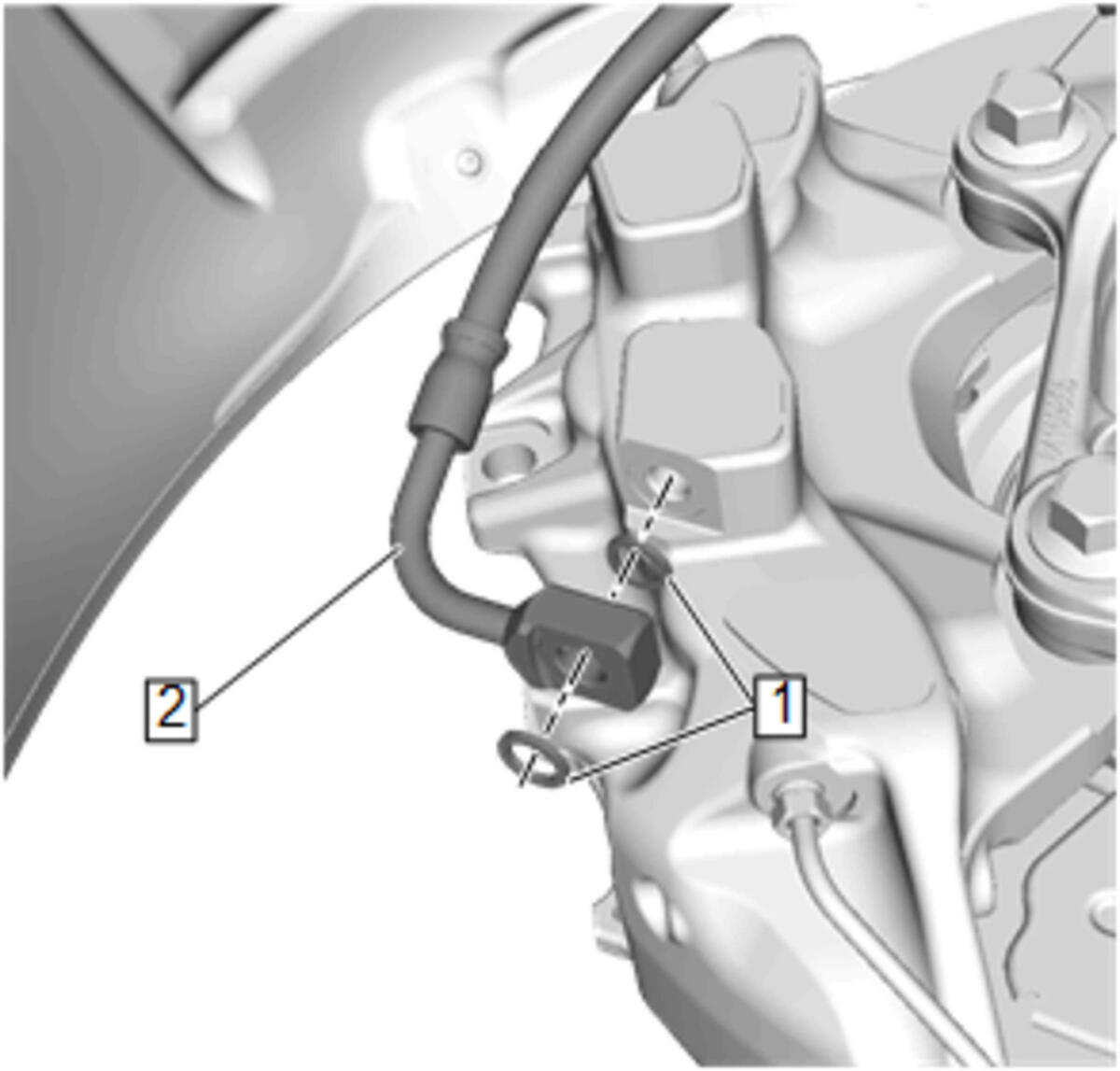

Brake Hose Fitting Gasket (1) @Front Brake Hose (2) - Install NEW[2x]
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

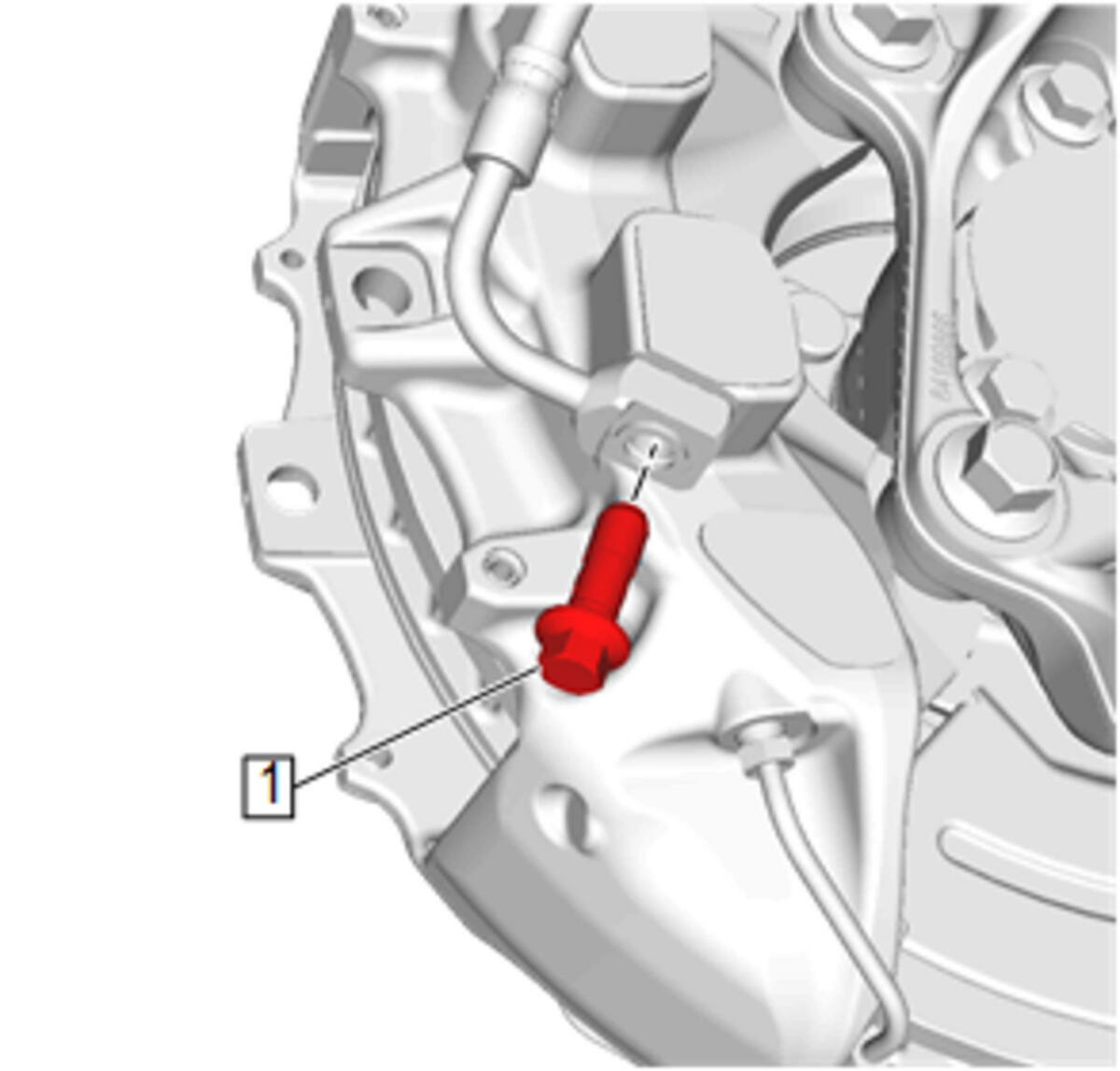

Brake Hose Fitting Bolt (1) - Install and tighten40 N.m (30 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Brake Hose Bracket Bolt (1) - Install and tighten 10 N.m (89 lb in)
Courtesy of GENERAL MOTORS COMPANY

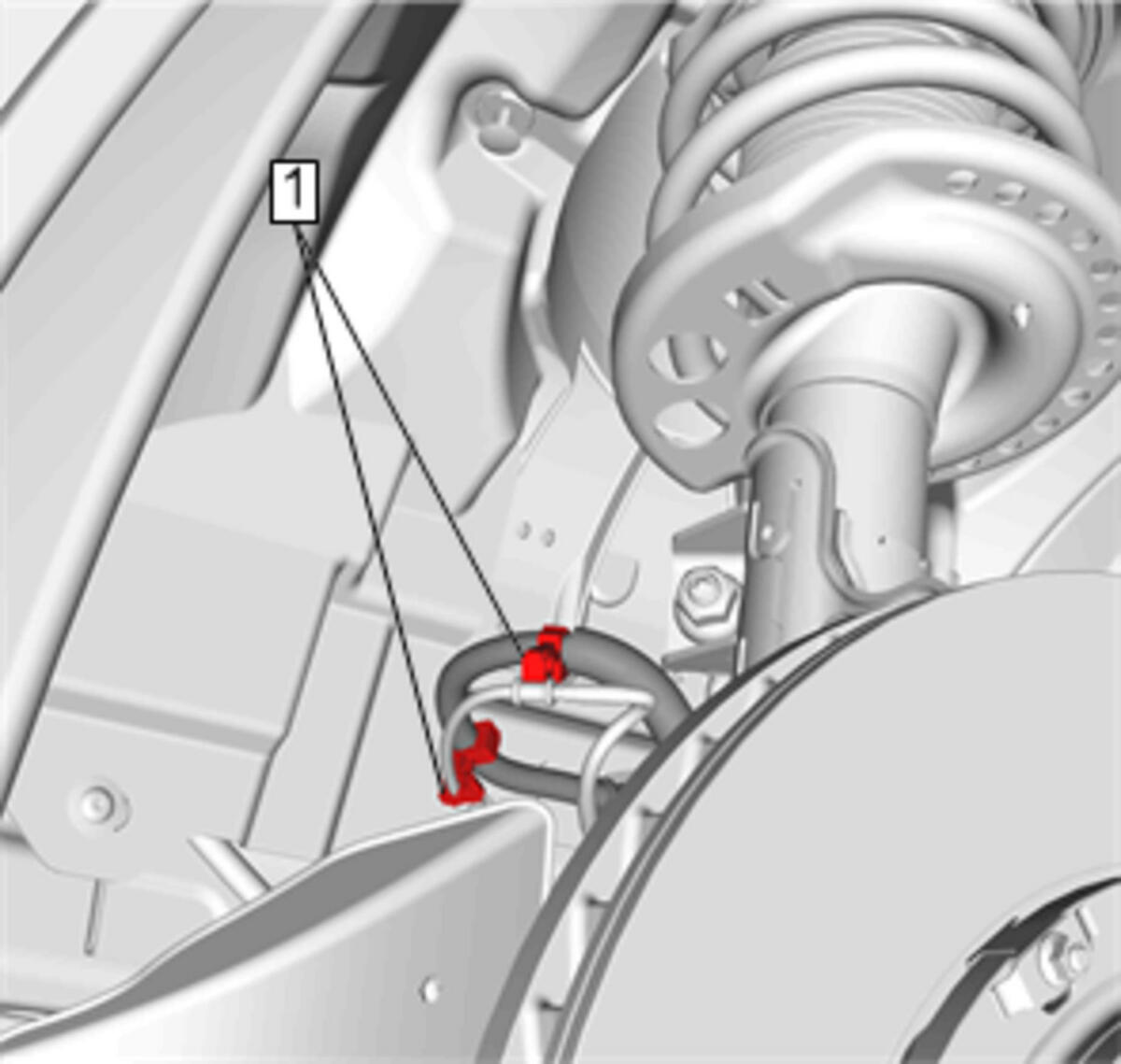

Wheel Speed Sensor Wiring Harness Clip (1) @Brake Hose - Secure[2x]
Courtesy of GENERAL MOTORS COMPANY

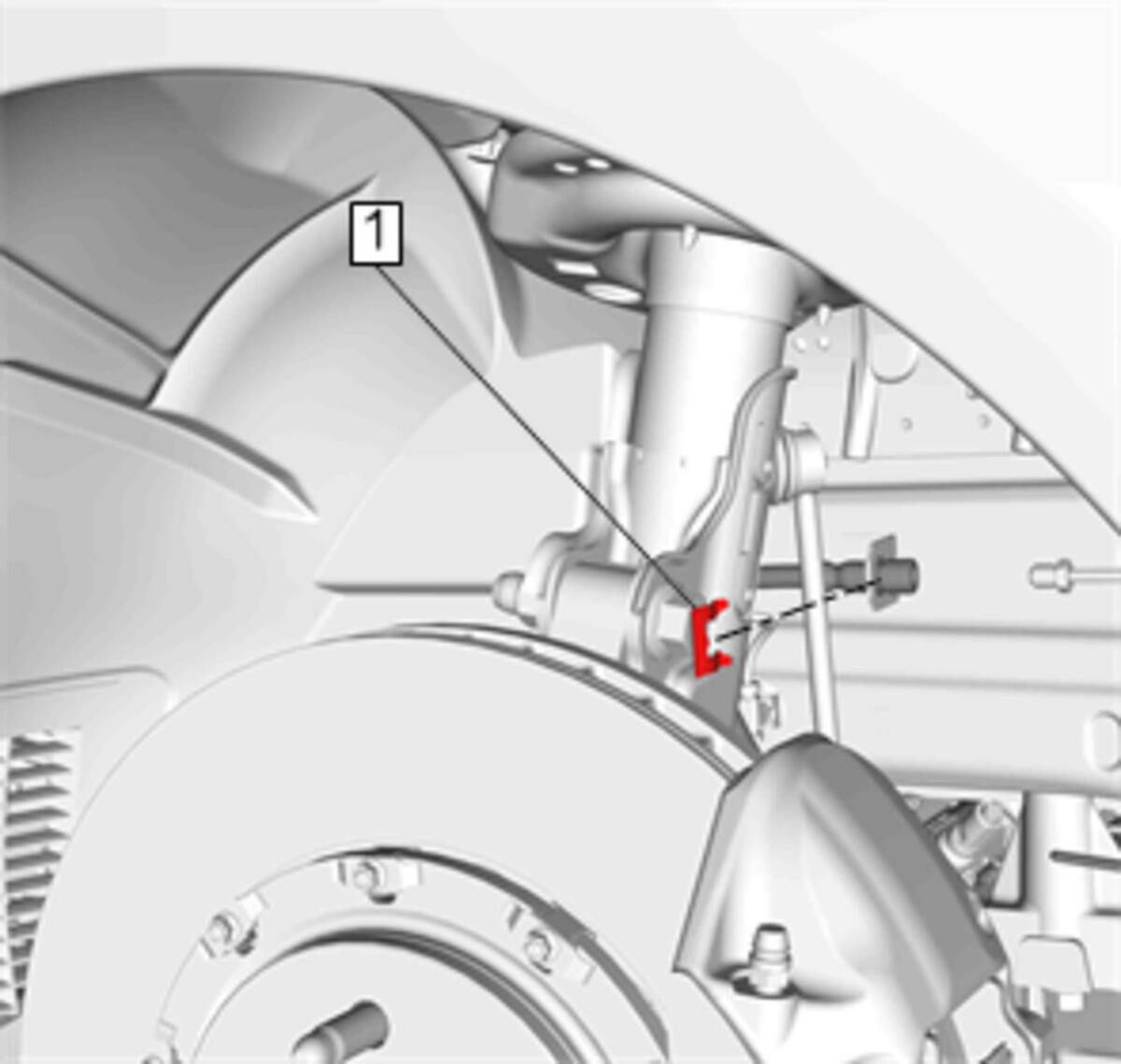

Brake Hose Retainer (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Remove cap from brake pipe fitting.

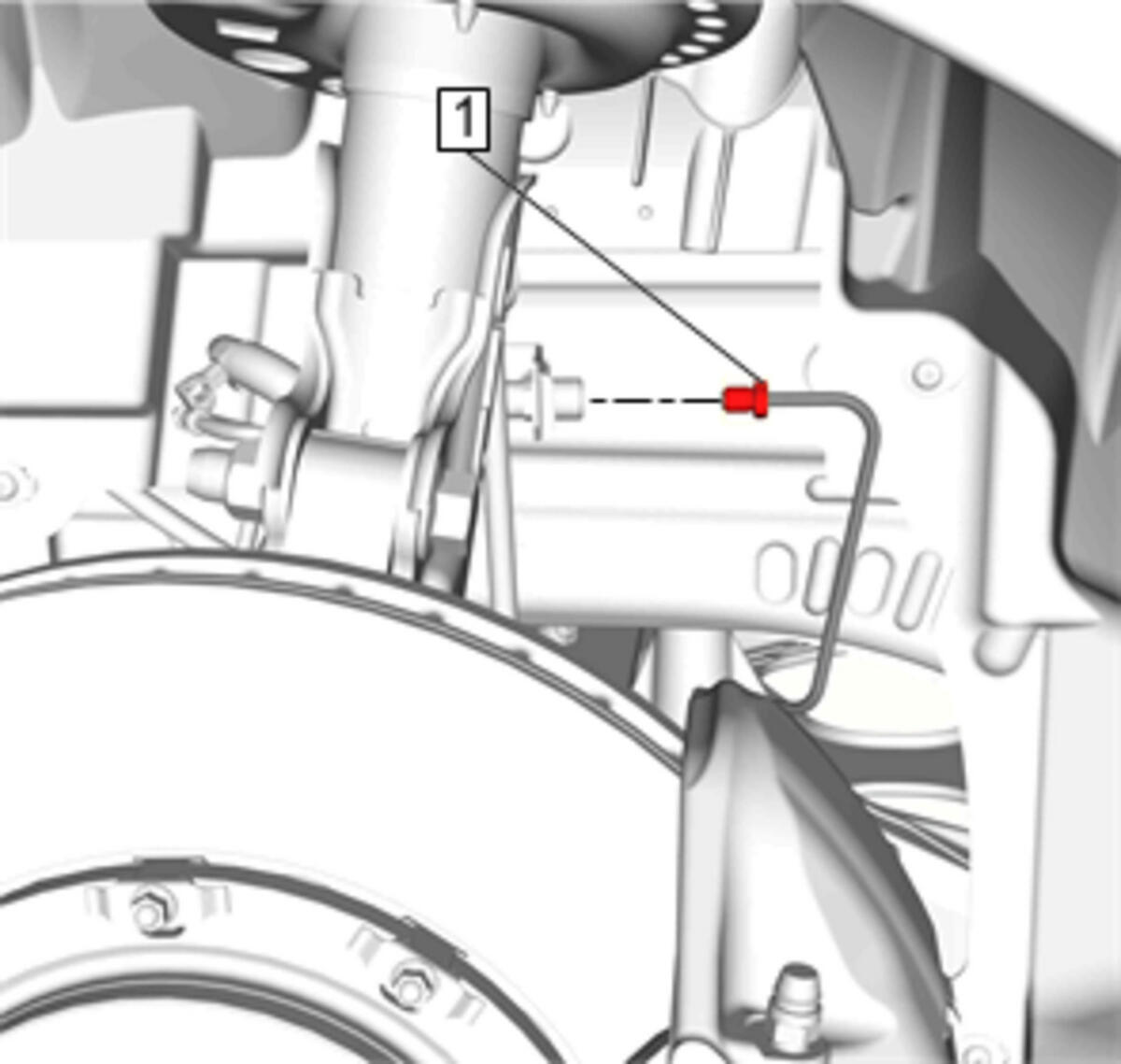

Brake Pipe Fitting (1) - Install and tighten 18 N.m (13 lb ft)
Bleed the brake system. Hydraulic Brake System Bleeding (Manual J55, J6G) Hydraulic Brake System Bleeding (Pressure J55, J6G) Hydraulic Brake System Bleeding (Manual JL9) Hydraulic Brake System Bleeding (Pressure JL9)
Front Wheelhouse Splash Shield - Install - Front Wheelhouse Splash Shield Replacement
Install the tire and wheel assembly. Tire and Wheel Removal and Installation
