Installation Procedure

Front Brake Hose - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Install NEW brake hose fitting gaskets.

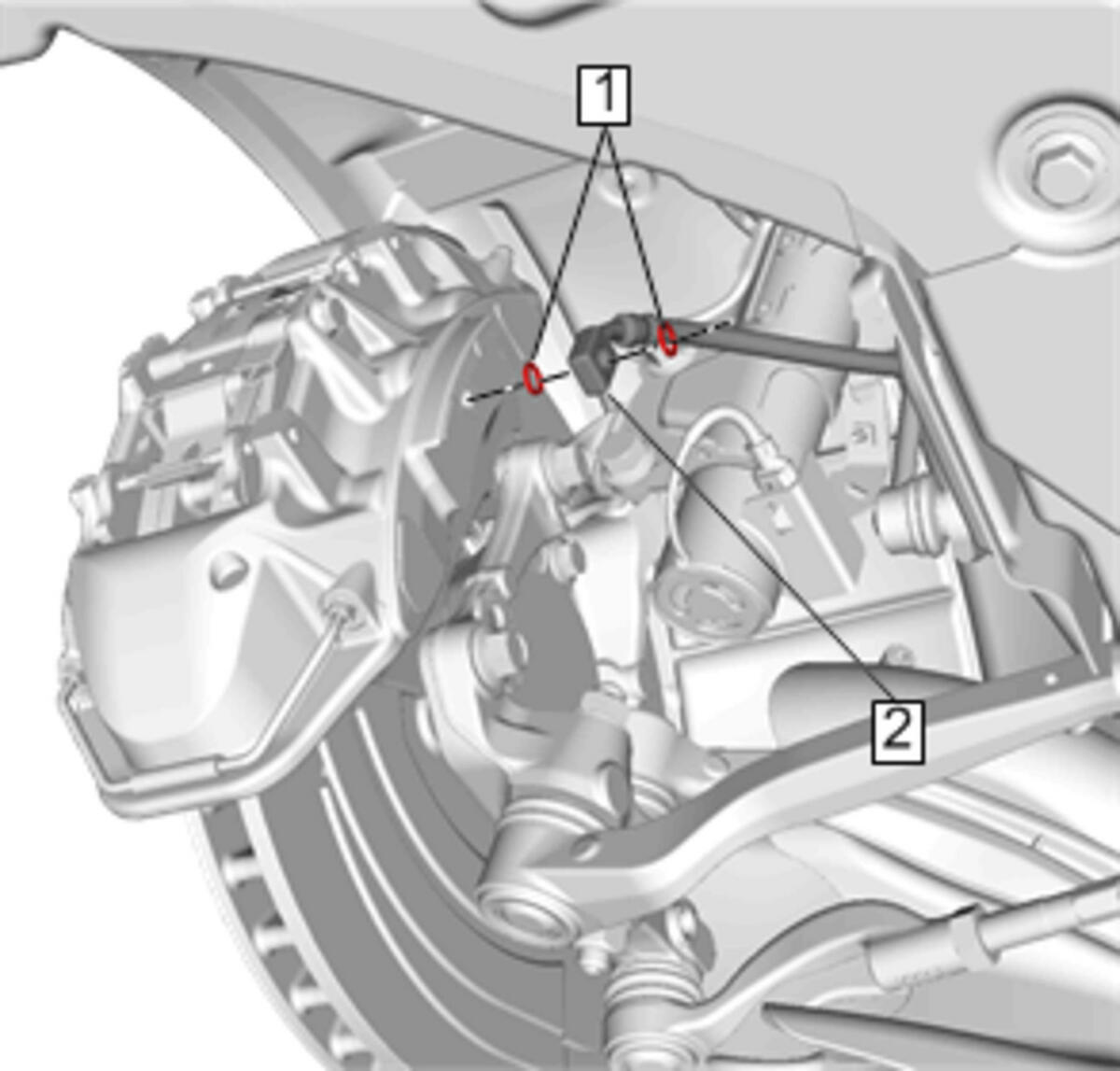

Brake Hose Fitting Gasket (1) @Front Brake Hose (2) - Install[2x]
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

Brake Hose Fitting Bolt (1) - Install and tighten40 N.m (30 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Brake Hose Bracket Bolt (1) - Install and tighten 10 N.m (89 lb in)
Courtesy of GENERAL MOTORS COMPANY

Wheel Speed Sensor Wiring Harness Clip (1) @Brake Hose - Secure[2x]
Courtesy of GENERAL MOTORS COMPANY

Brake Hose Retainer (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Brake Pipe Fitting (1) - Install and tighten 18 N.m (13 lb ft)
Bleed the brake system. Hydraulic Brake System Bleeding (Manual J55, J6G) Hydraulic Brake System Bleeding (Pressure J55, J6G) Hydraulic Brake System Bleeding (Manual JL9) Hydraulic Brake System Bleeding (Pressure JL9)
Front Wheelhouse Splash Shield Replacement - Install
Install the tire and wheel assembly. Tire and Wheel Removal and Installation - Install
