Installation Procedure
- Install the BPMV secondary brake pipe.
- CAUTION:
Refer to Fastener Caution .

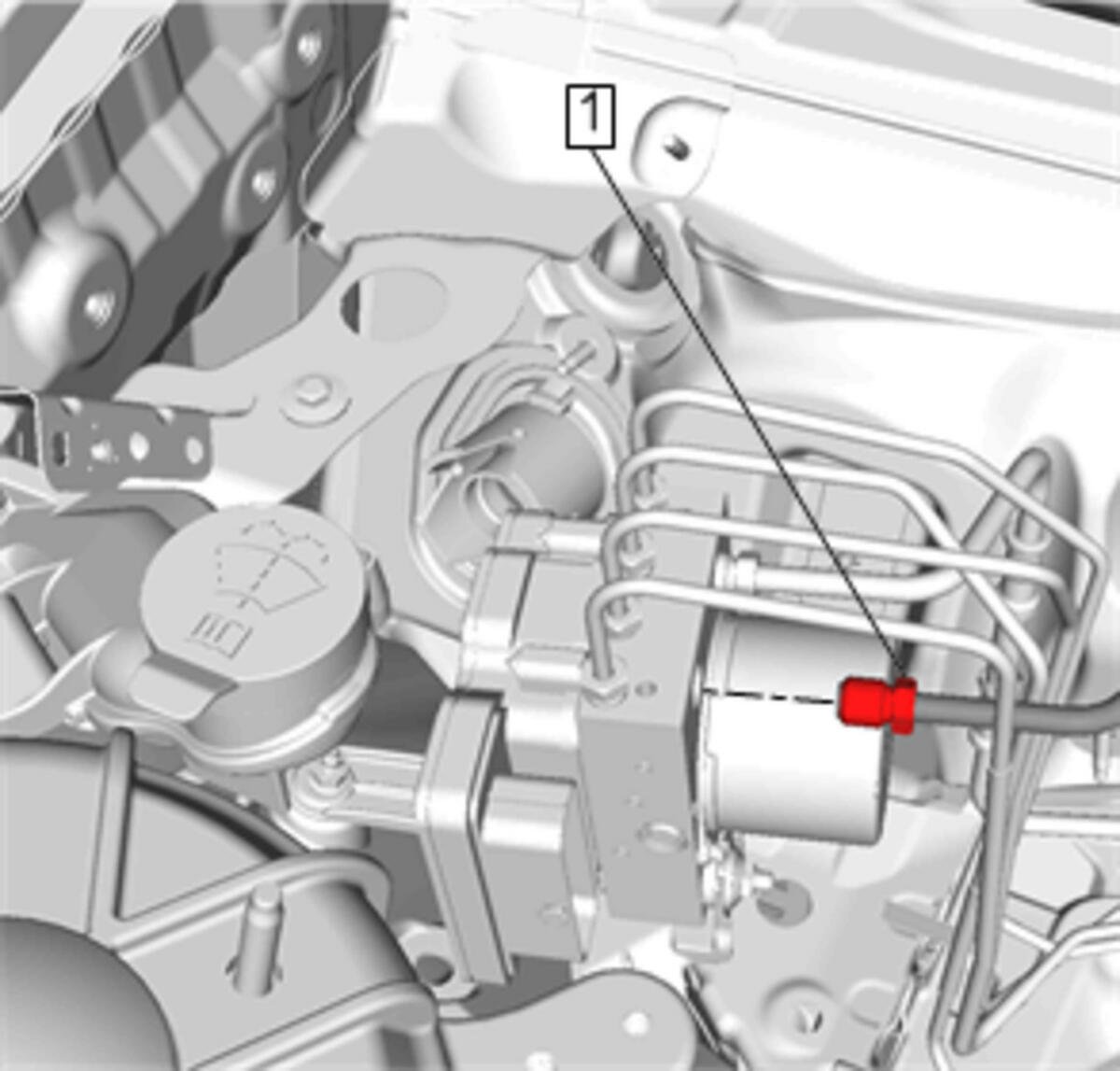

Brake Pipe Fitting (1) - Install and tighten 32 N.m (24 lb ft)

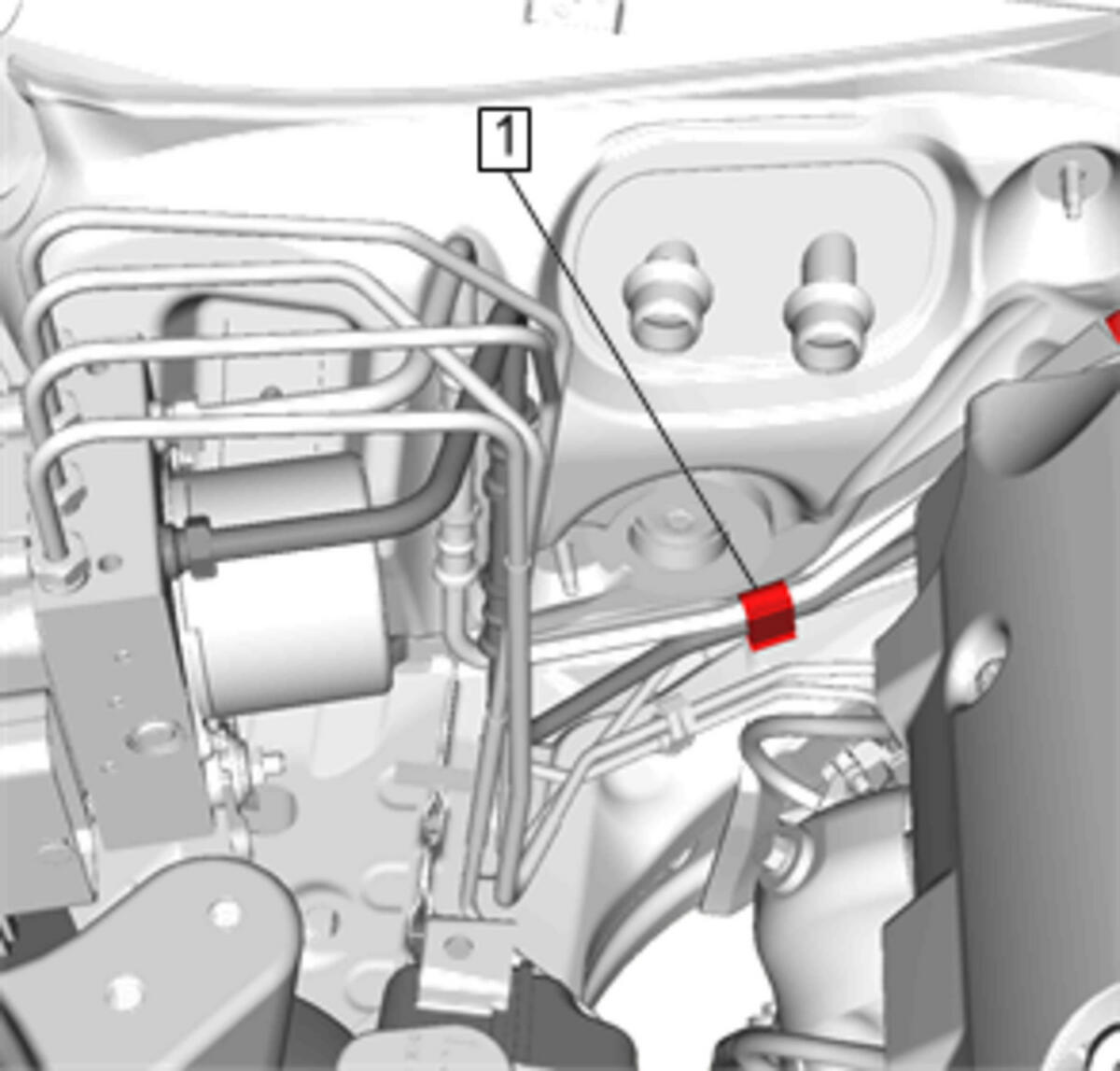

Retainer (1) - Install

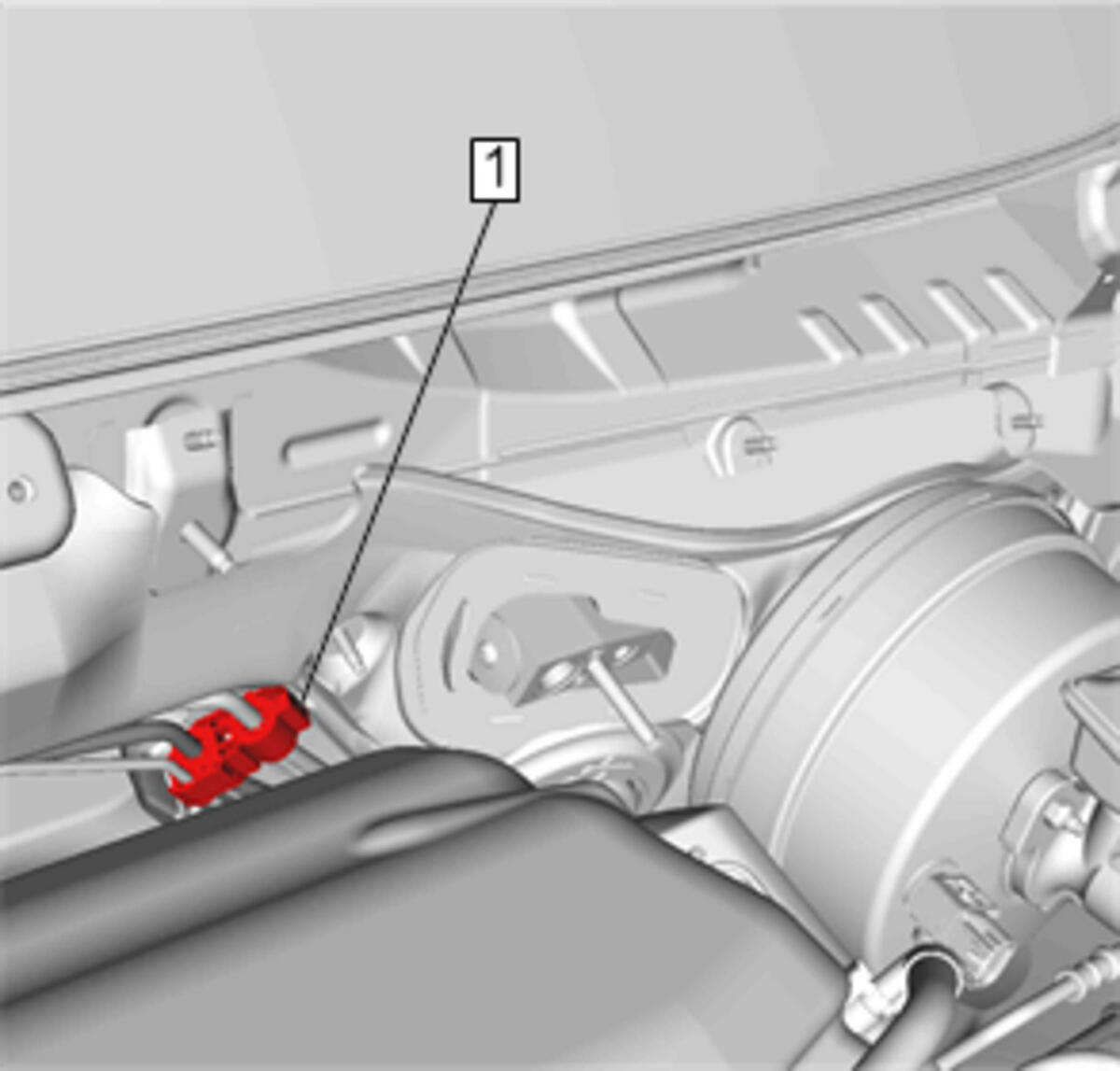

Retainer (1) - Install

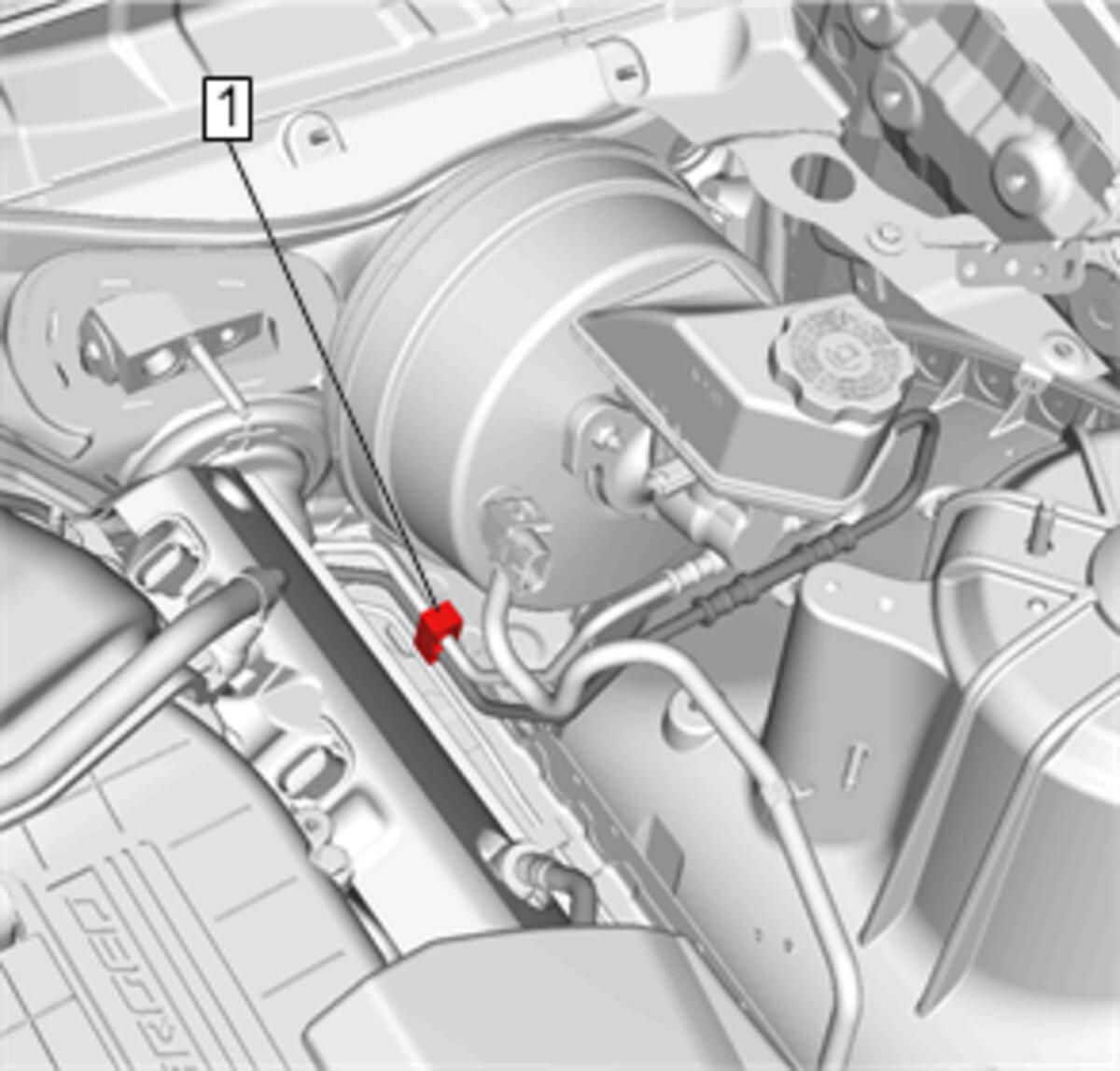

Retainer (1) - Install

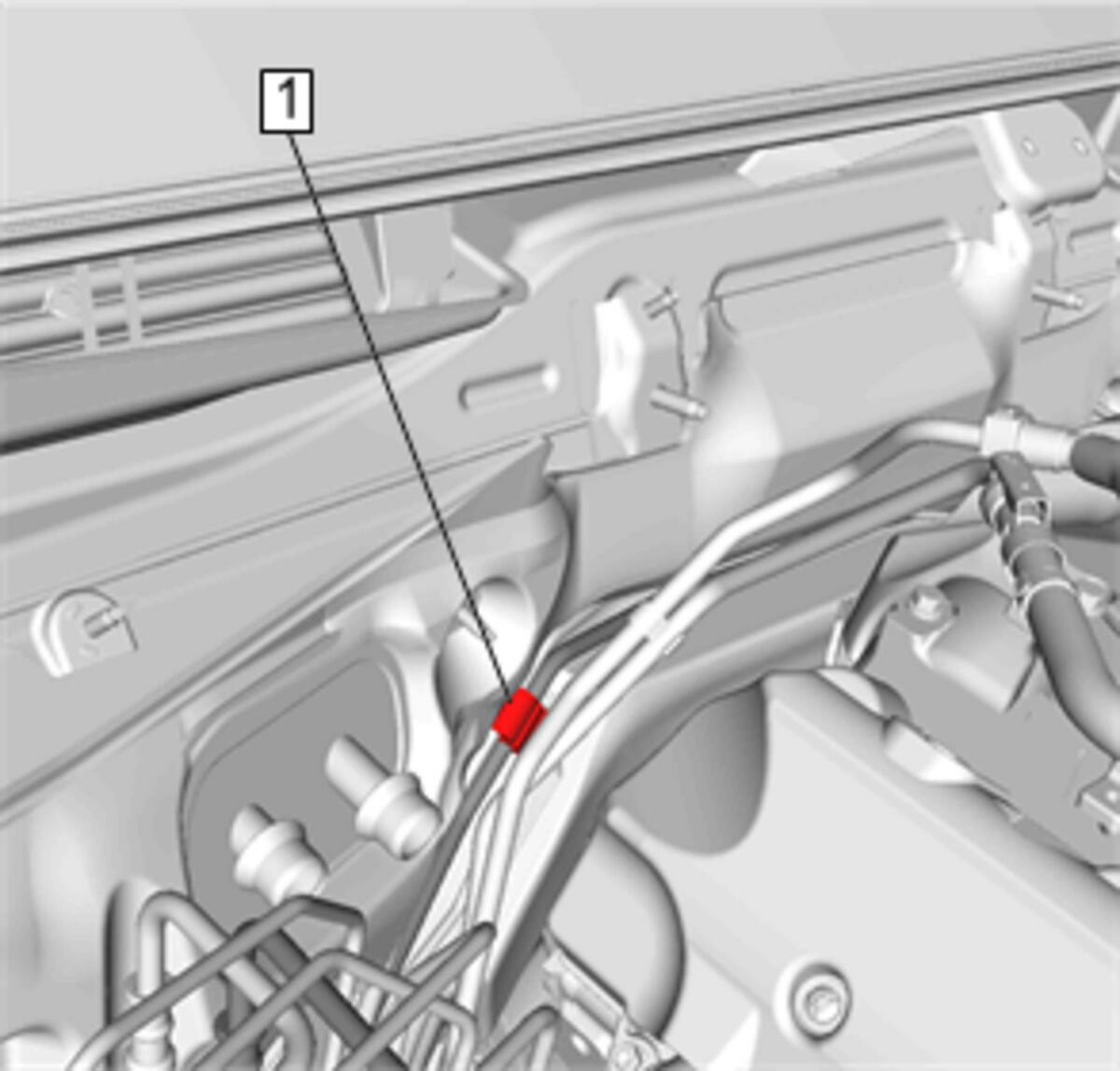

Retainer (1) - Install

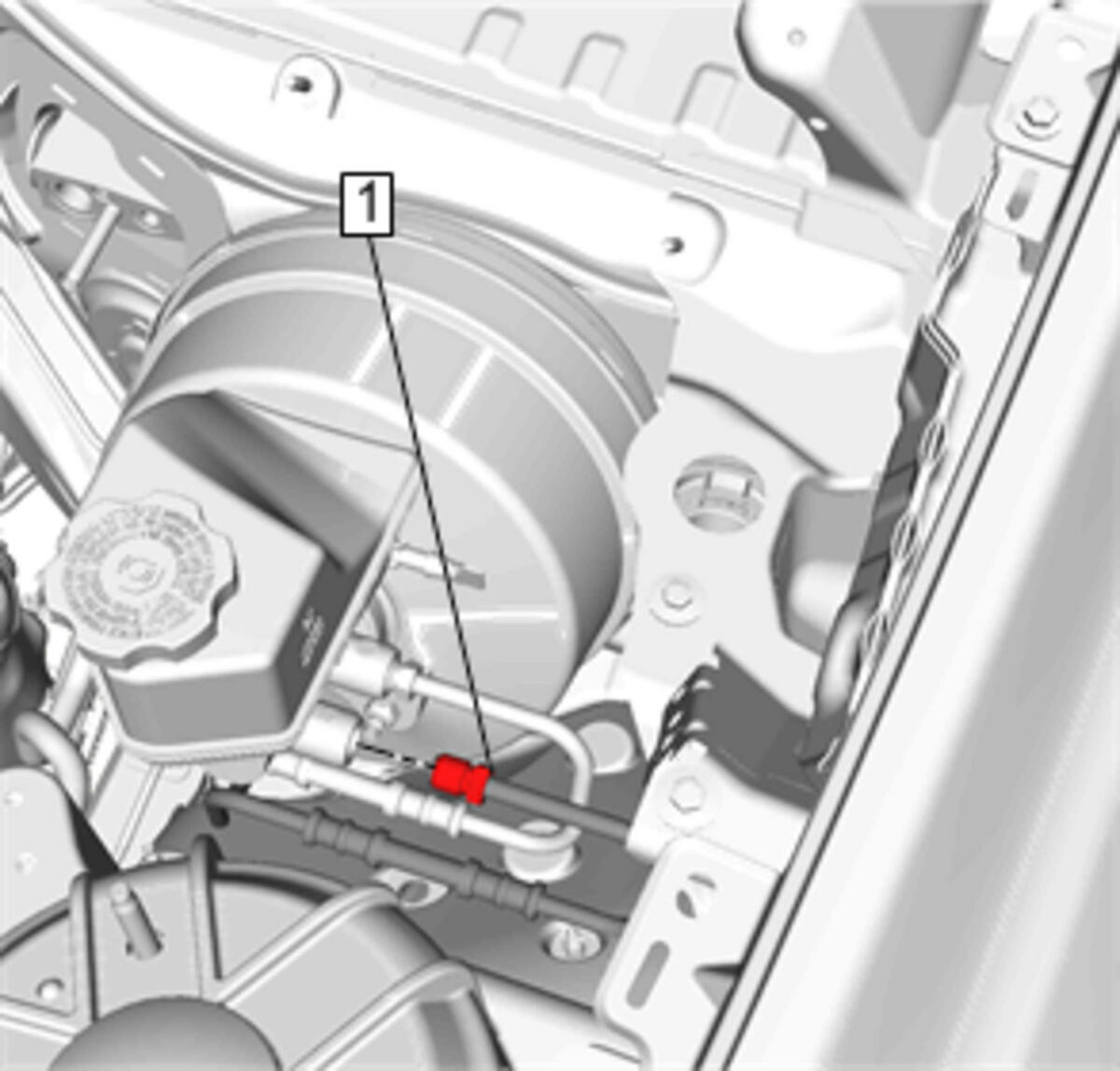

Brake Pipe Fitting (1) - Install and tighten 30 N.m (22 lb ft)
- Upper Intermediate Steering Shaft@Mid Intermediate Steering Shaft - Install - Upper Intermediate Steering Shaft Replacement
- Heater Outlet Hose@Heater Core - Install - Heater Outlet Hose Replacement (LT1 LT4)Heater Outlet Hose Replacement (LGX)Heater Outlet Hose Replacement (LTG)
- Heater Inlet Hose@Heater Core - Install - Heater Inlet Hose Replacement (LT1 LT4)Heater Inlet Hose Replacement (LGX)Heater Inlet Hose Replacement (LTG)
- Air Conditioning Evaporator Hose Assembly@ Thermal Expansion Valve - Install - Air Conditioning Evaporator Hose Replacement (LGX without V18)Air Conditioning Evaporator Hose Replacement (LGX with V18)Air Conditioning Evaporator Hose Replacement (LT1)Air Conditioning Evaporator Hose Replacement (LTG with Y4Q)Air Conditioning Evaporator Hose Replacement (LTG without Y4Q)Air Conditioning Evaporator Hose Replacement (LT4)
- Front End Sheet Metal Diagonal Brace - Left Side - Remove - Front End Sheet Metal Diagonal Brace Replacement - Left Side
- Plenum Front Panel Replacement (LTG LGX)Plenum Front Panel Replacement (LT1 LT4) - Install
