Removal Procedure

  1. Body Control Module Bracket - Remove - Body Control Module Bracket Replacement
  2. GM4605275Courtesy of GENERAL MOTORS COMPANY

    Brake Pedal Position Sensor (1) - Remove - Brake Pedal Position Sensor Replacement

  3. Release the retainers and position the electrical harness aside.

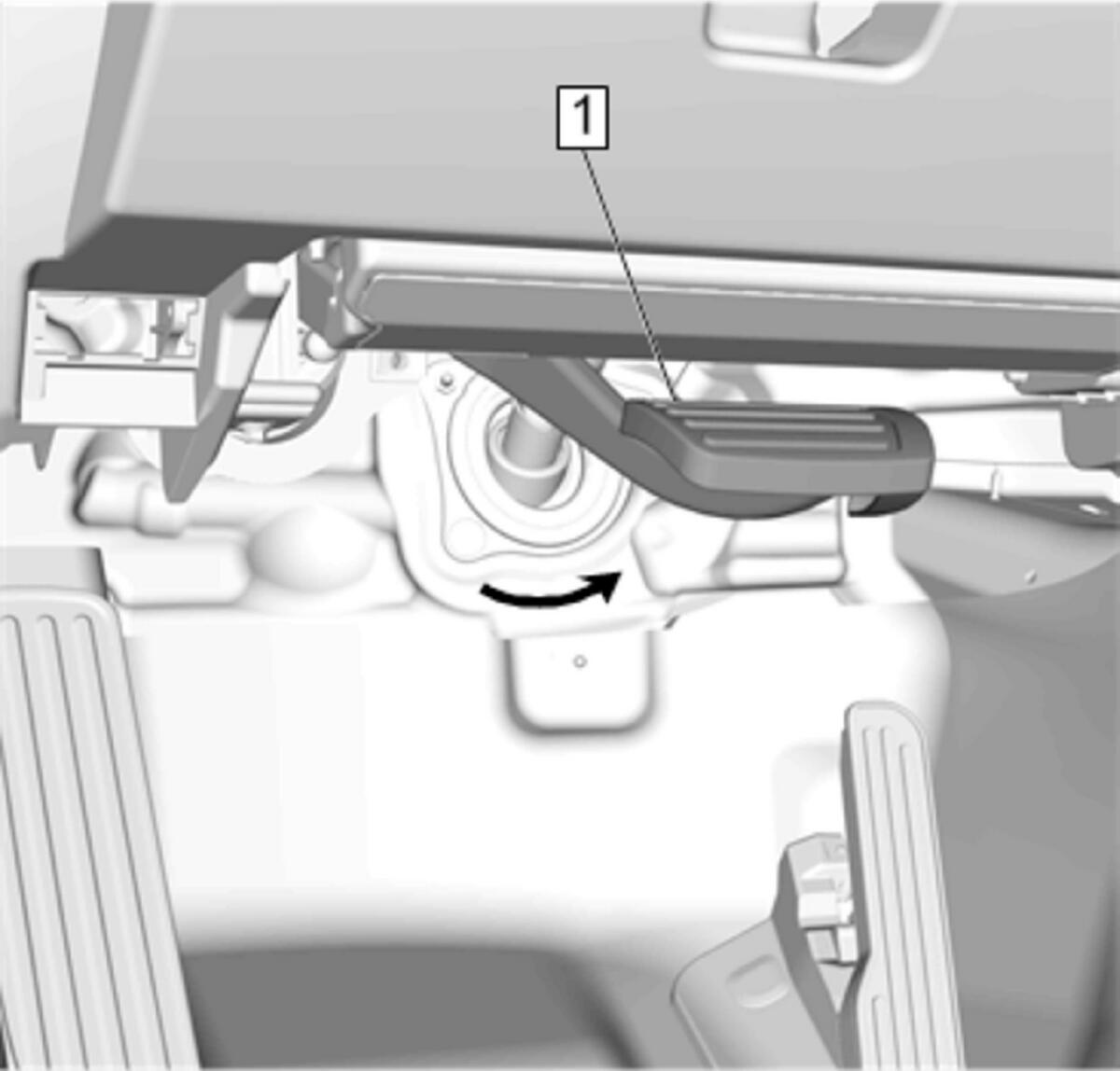

  4. GM4605267Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Pull the brake pedal rearward to disconnect the brake pedal pushrod retainer.

    Brake Pedal (1) - Disconnect

  5. GM4605273Courtesy of GENERAL MOTORS COMPANY

    Brake Pedal Pushrod Retainer (1) - Remove and DISCARD

  6. GM4605278Courtesy of GENERAL MOTORS COMPANY

    Power Vacuum Brake Booster Nut (1) - Remove[2x]

  7. GM4605281Courtesy of GENERAL MOTORS COMPANY

    Brake Pedal Nut (1) - Remove[2x]

  8. GM4605284Courtesy of GENERAL MOTORS COMPANY

    Brake Pedal (1) - Remove
