Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

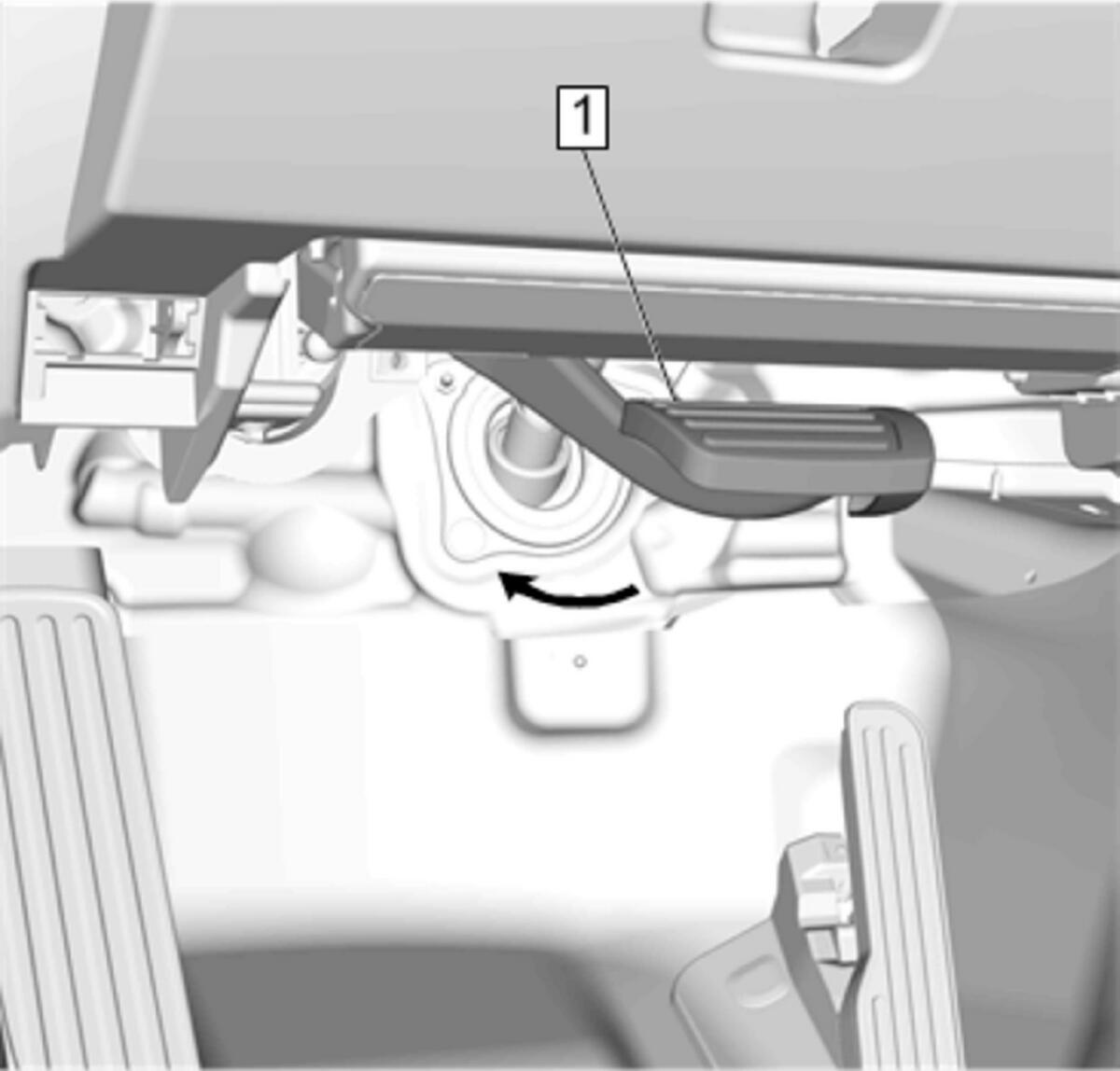

Brake Pedal (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

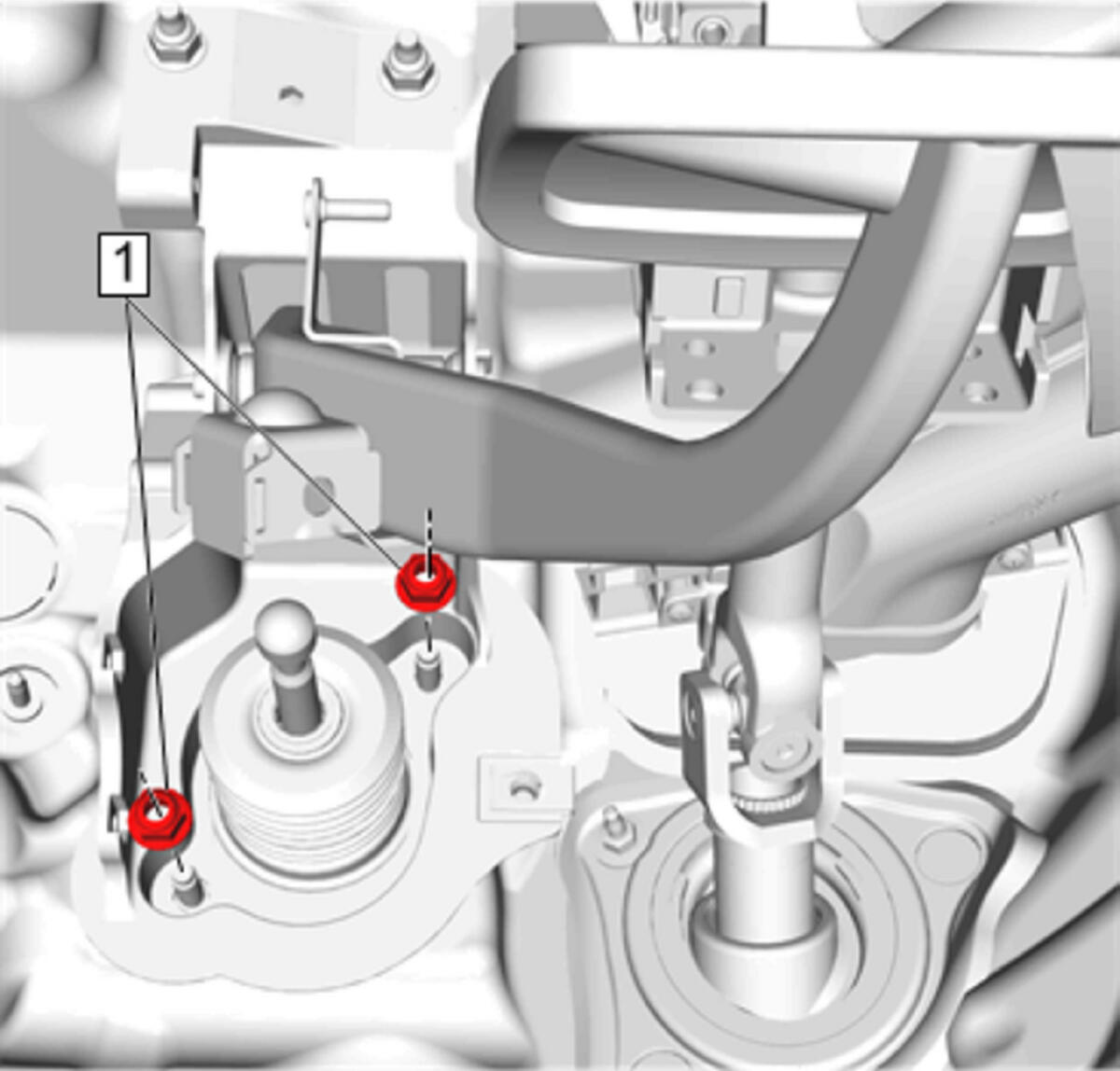

Brake Pedal Nut (1) - Install and tighten[2x]25 N.m (18 lb ft)
Courtesy of GENERAL MOTORS COMPANY

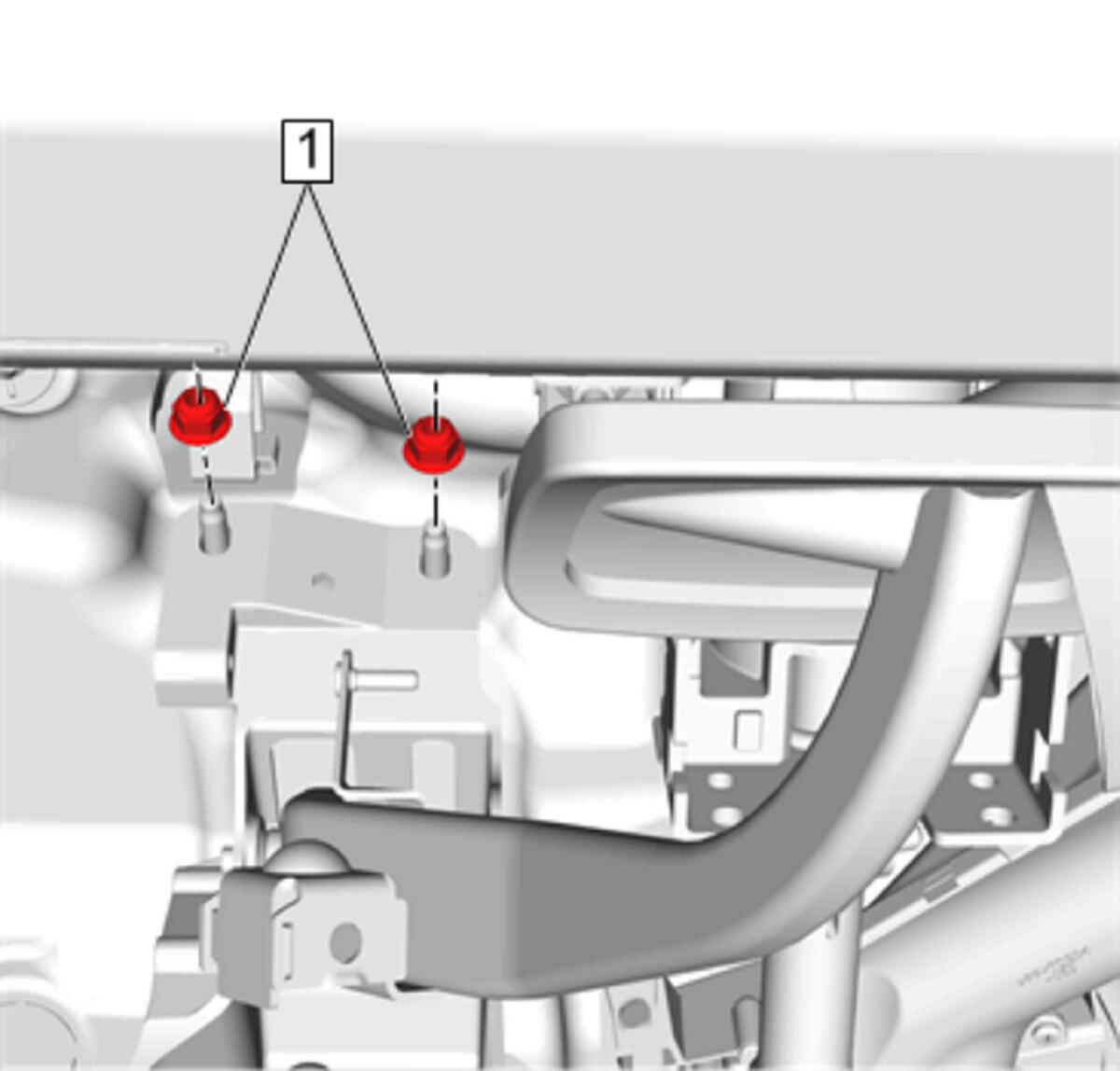

Power Vacuum Brake Booster Nut (1) - Install and tighten[2x]25 N.m (18 lb ft)
Courtesy of GENERAL MOTORS COMPANY

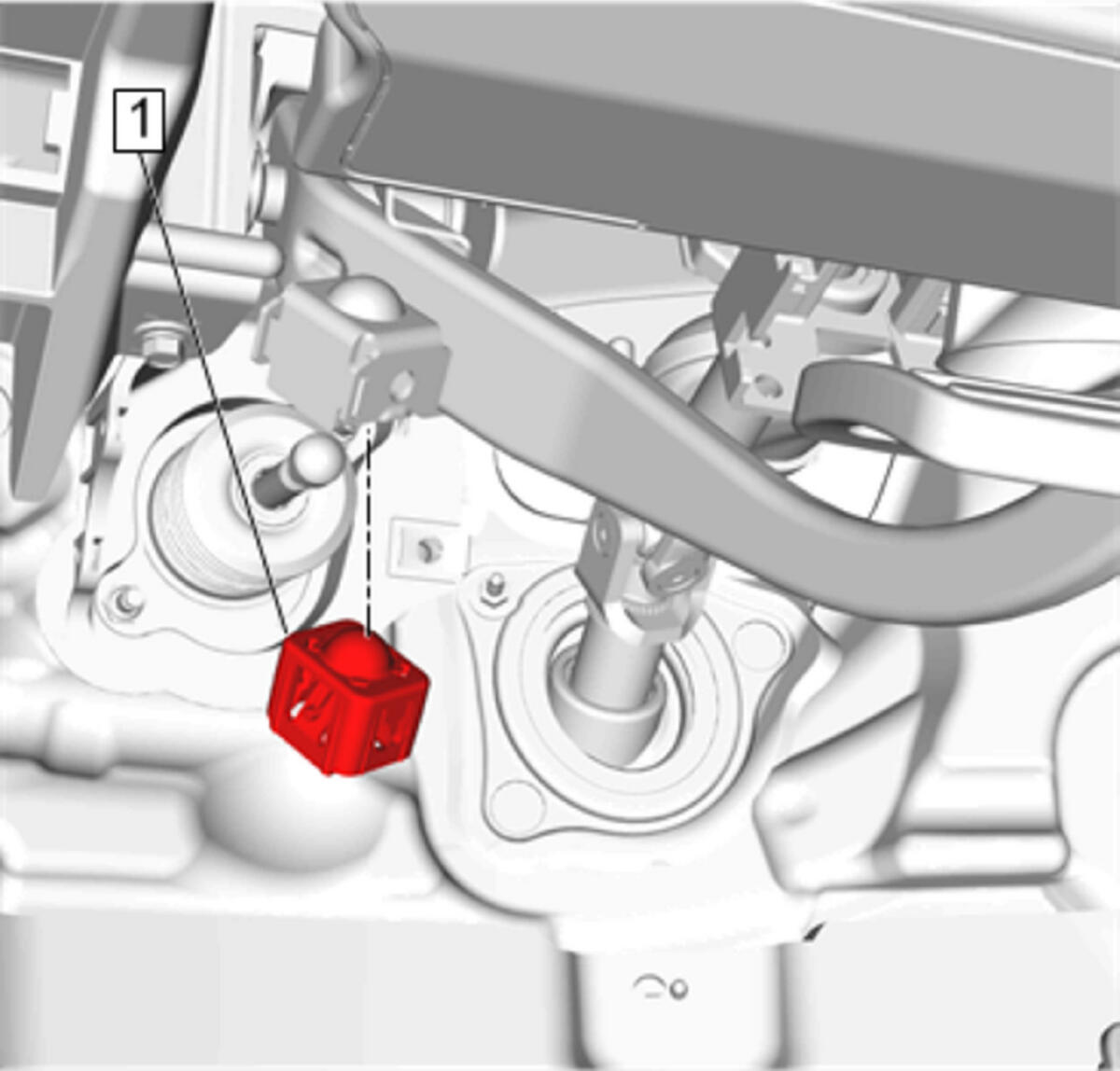

Brake Pedal Pushrod Retainer (1) - Install NEW
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure the brake pedal pushrod retainer is fully seated in the power vacuum brake booster pushrod.

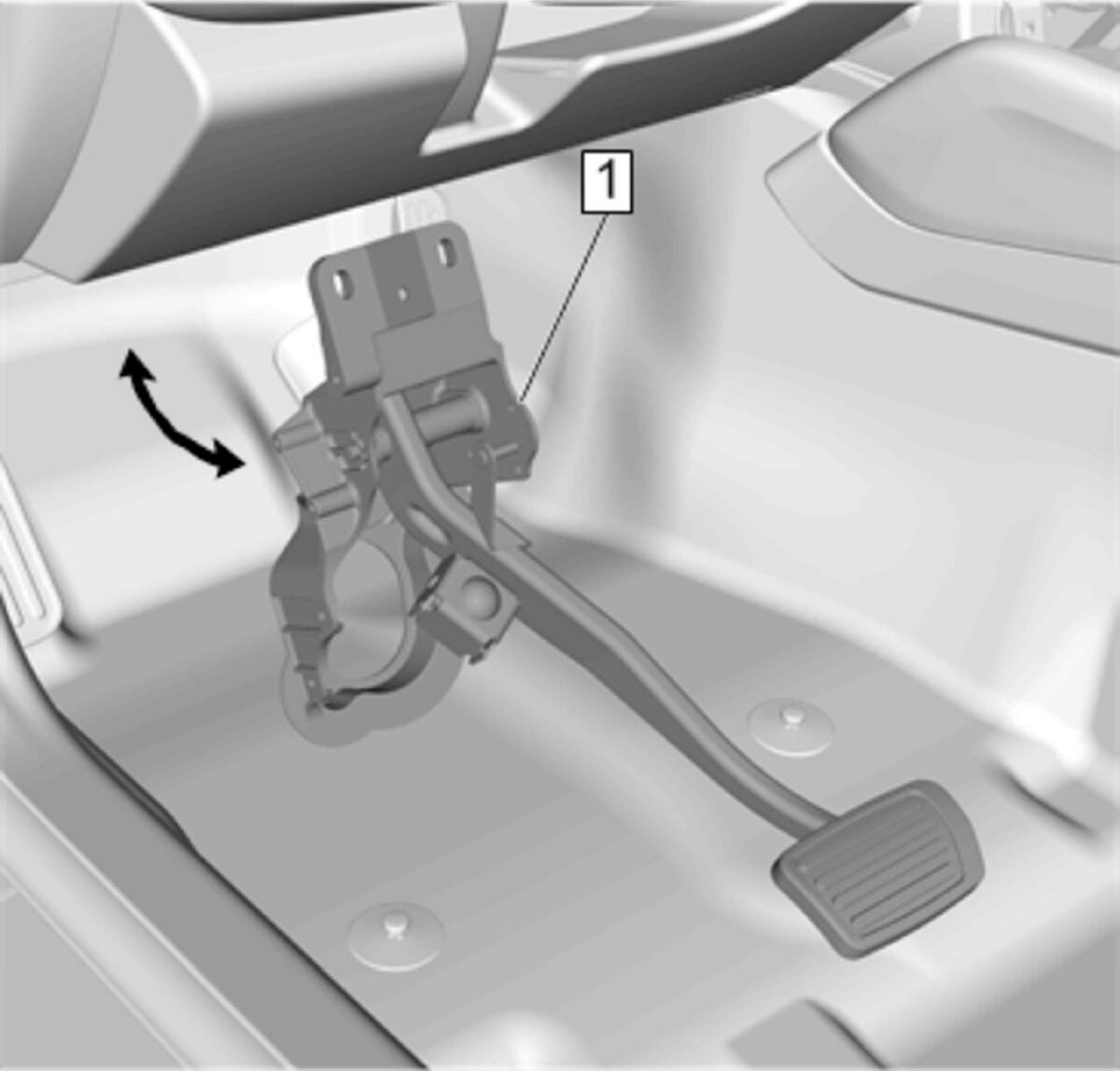

Brake Pedal (1) - Secure
Reposition the electrical harness to the brake pedal and secure the harness retainers.
Courtesy of GENERAL MOTORS COMPANY

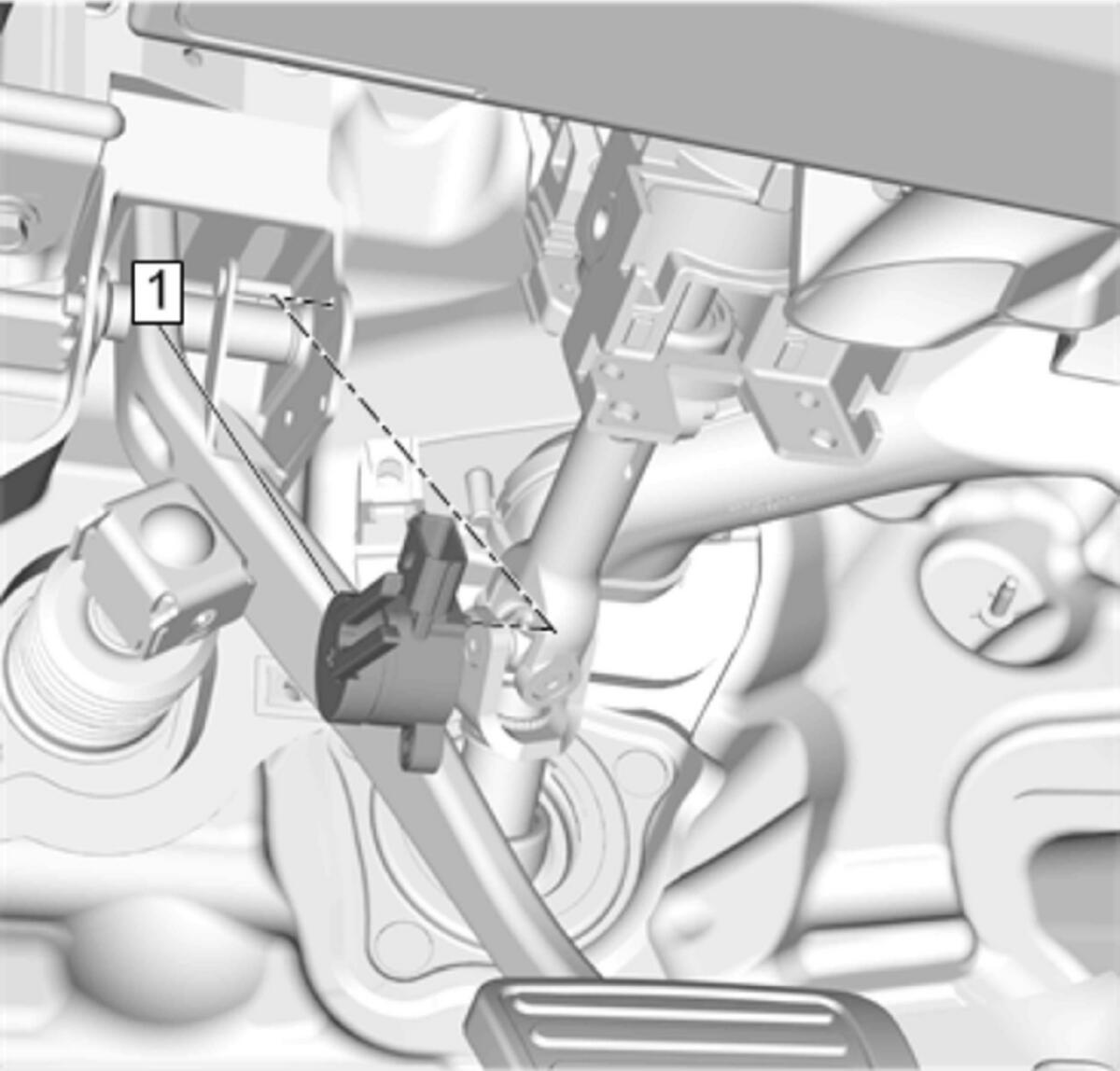

Brake Pedal Position Sensor (1) - Install - Brake Pedal Position Sensor Replacement
Body Control Module Bracket - Install - Body Control Module Bracket Replacement
