Installation Procedure

Lubricate the master cylinder reservoir seals with GM approved brake fluid from a clean, sealed, brake fluid container.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure the reservoir seals are fully seated in the master cylinder.

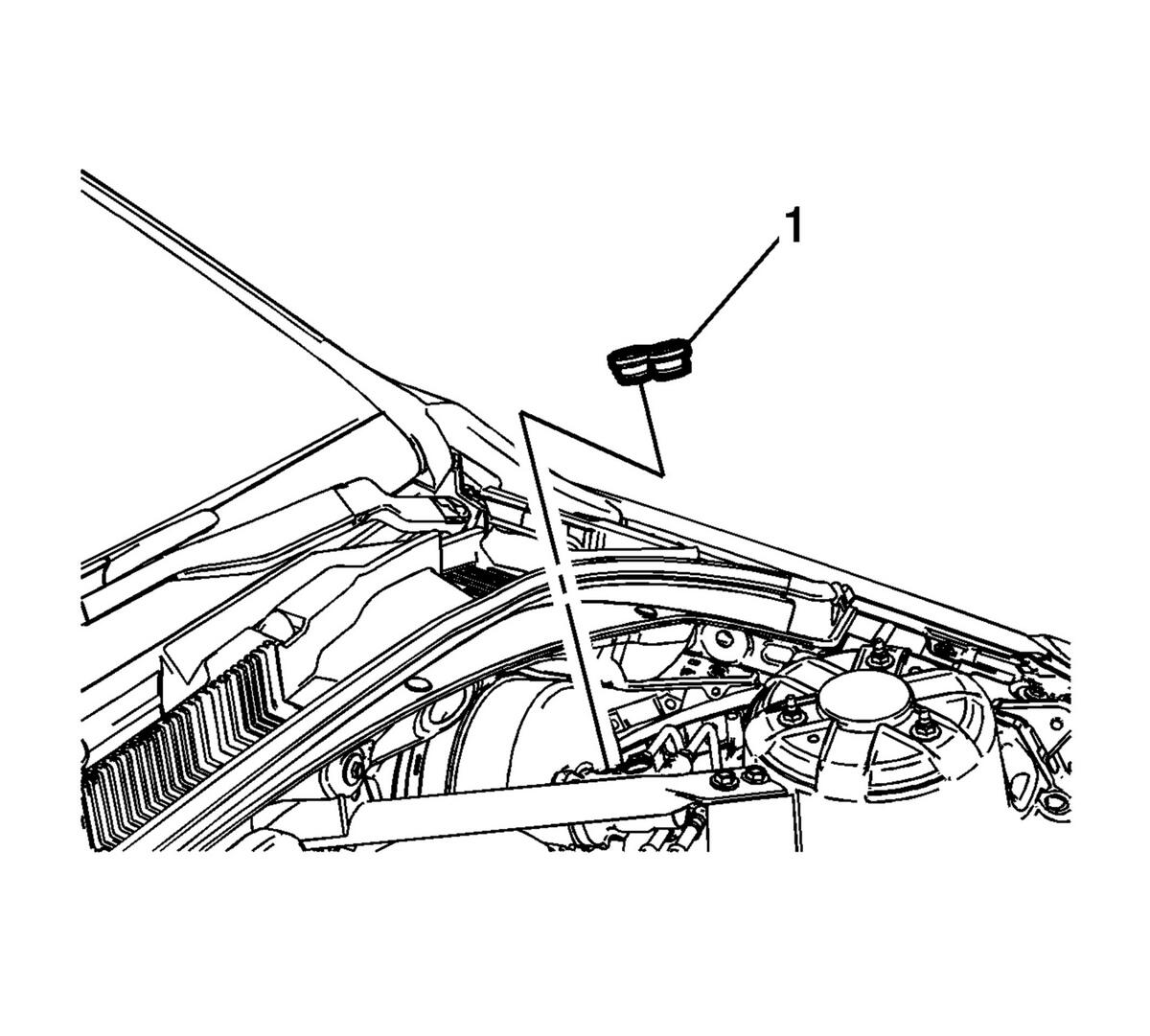

Install the 2 master cylinder reservoir seals (1).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure the master cylinder reservoir is fully seated in the master cylinder.

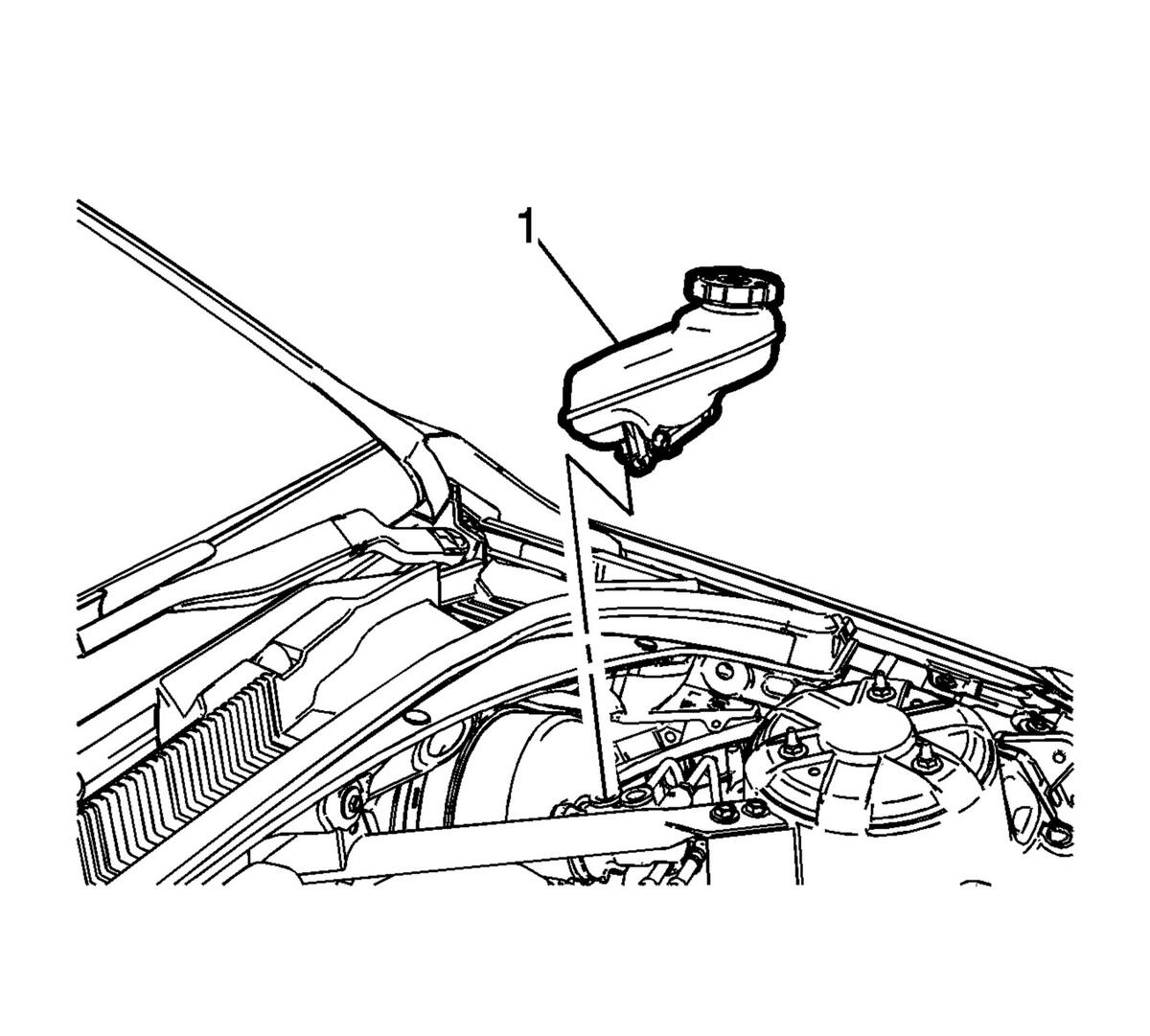

Firmly and squarely press the master cylinder reservoir (1) into the master cylinder.
Courtesy of GENERAL MOTORS COMPANY

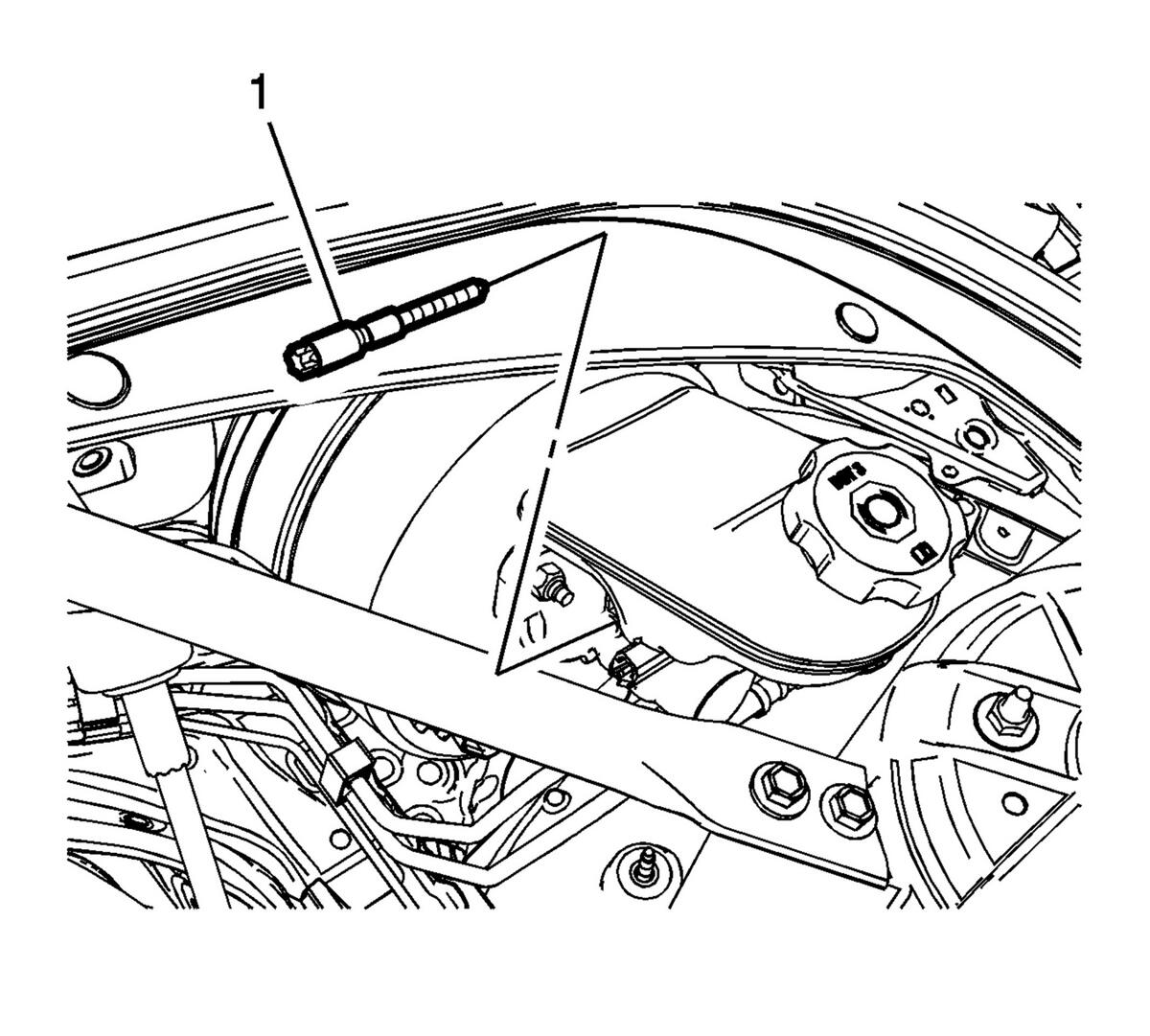

CAUTION:
Refer to Fastener Caution .

Install the master cylinder reservoir bolt (1) and tighten to 8 N.m (71 lb in).
If equipped, connect the clutch master cylinder feed hose.
Install the brake fluid level indicator switch. Brake Fluid Level Indicator Switch Replacement
Plenum Front Panel - Install - Plenum Front Panel Replacement (LTG LGX)Plenum Front Panel Replacement (LT1 LT4)
Fill the master cylinder reservoir. Brake Master Cylinder Reservoir Filling
