Front Compartment Air Deflector Replacement (Coupe - LT1)
NOTE:

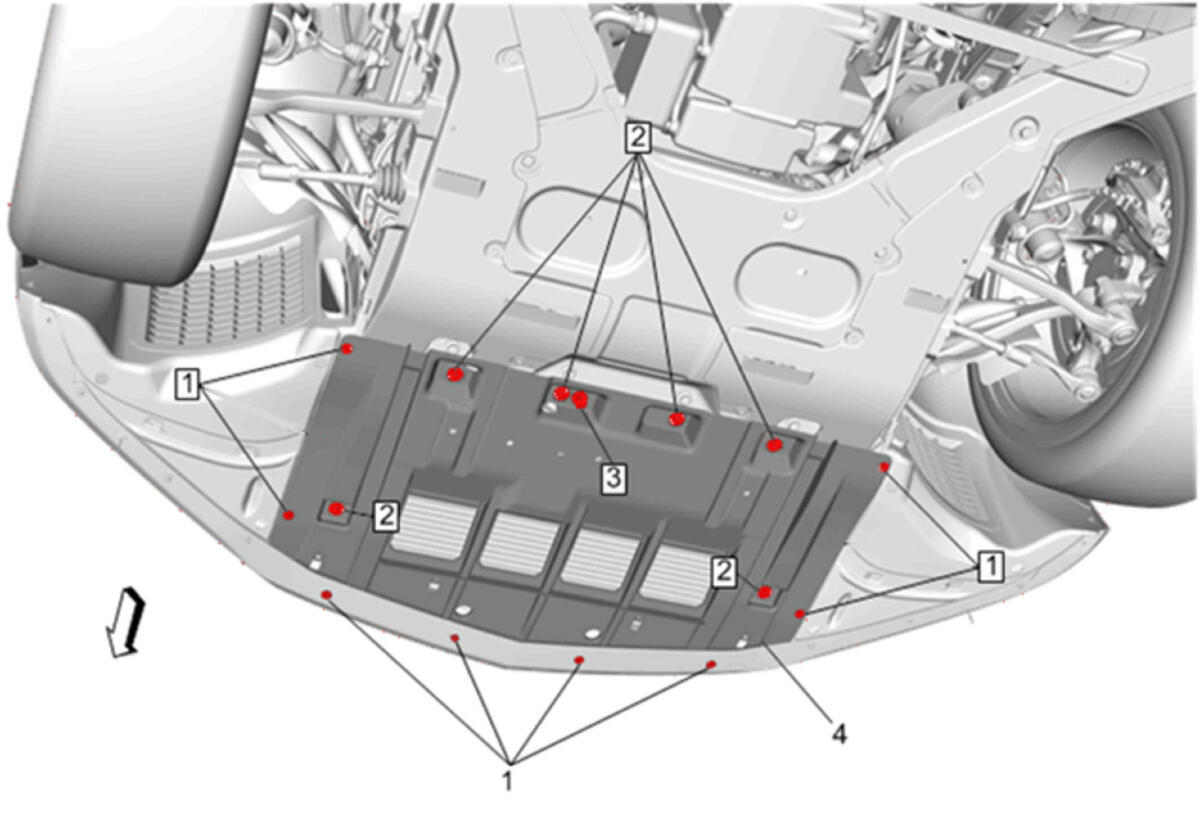

Callouts items in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Tire Front Air Deflector Replacement |
|
| 1 | Front Compartment Air Deflector Fastener [10X]
CAUTION:
Refer to Fastener Caution Tighten 2.5 N.m (22 lb in) |
| 2 | Front Compartment Air Deflector Fastener [6X] Tighten 5 N.m (44 lb in) |
| 3 | Front Compartment Air Deflector Retainer |
| 4 | Front Compartment Air Deflector |
