Hood Adjustment
 Courtesy of GENERAL MOTORS COMPANY
|
NOTE:

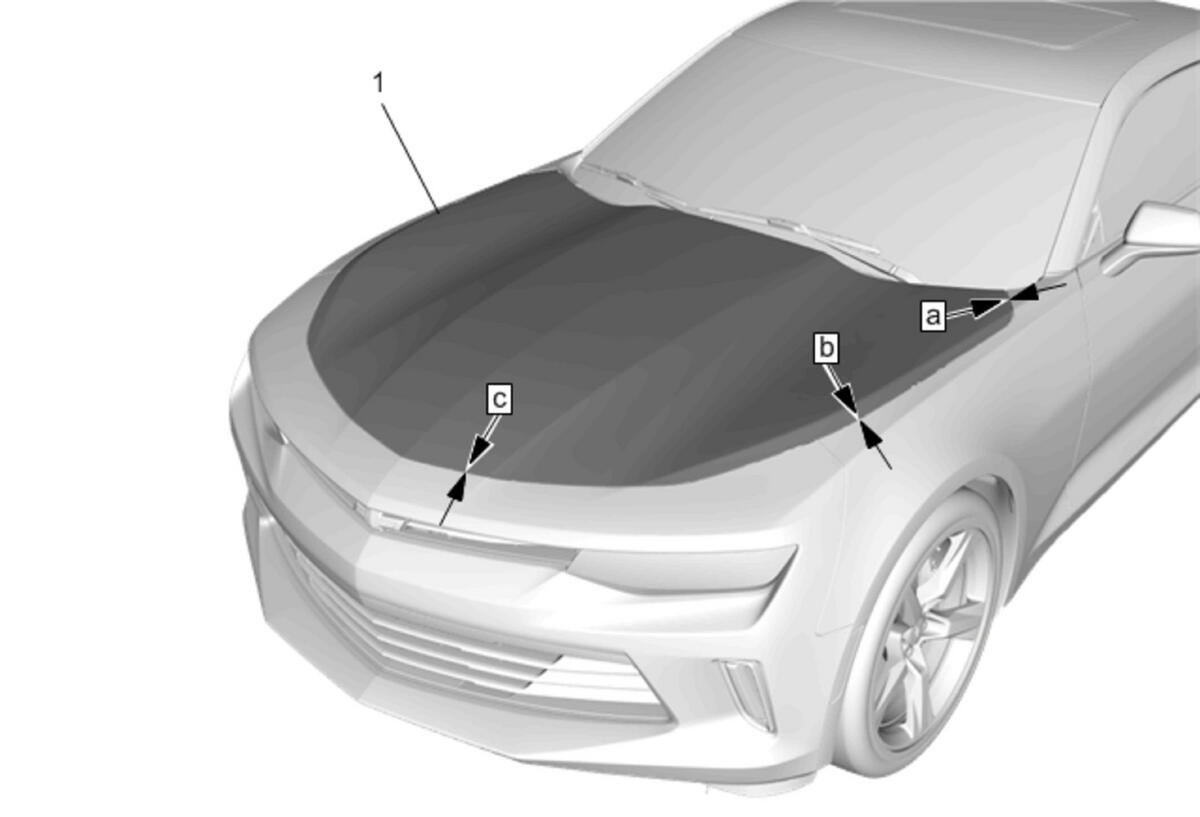

Callouts in the following chart represent components shown in graphic above.
| Callout |
Component Name |
| 1 |
Hood
Procedure
- Loosen the 4 hood hinge nuts.
- Adjust the hood in order to obtain an even gap on both sides between the hood and the fenders, the front grille and headlamps.
- Loosen and adjust the hood primary and secondary latch and the hood bumpers as necessary to obtain the adjustment.
Adjustment:
- Hood to front fender (a) 3.0 mm ±.75 mm (0.12 in ± 0.03 in)
- Hood to front fender (b) 3.0 mm ±.75 mm (0.12 in ± 0.03 in)
- Hood to fascia (c) 3.0 mm ± 1.5 mm (0.12 in ± 0.06 in)
Tighten
22 N.m (16 lb ft) |
