Rear Compartment Lid Hinge Replacement

Courtesy of GENERAL MOTORS COMPANY

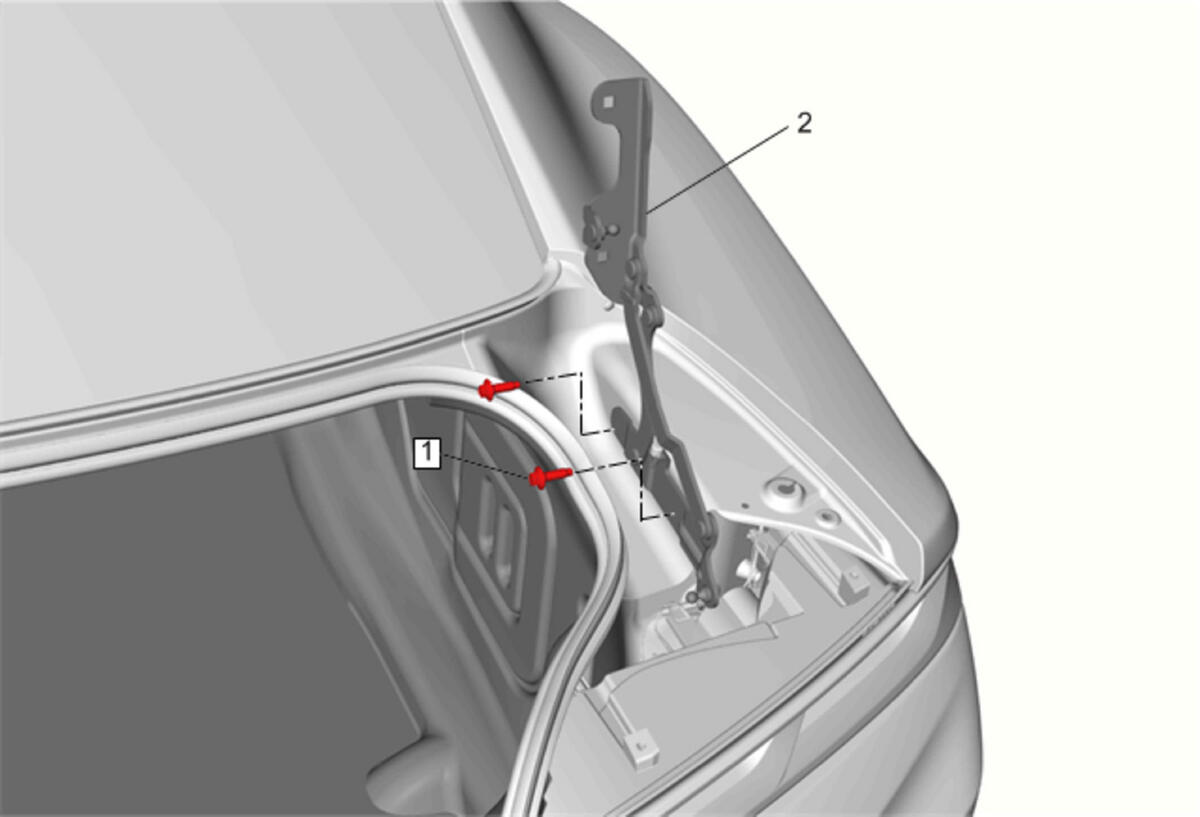

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Rear Compartment Lid Replacement Rear Body Structure Stop Lamp Trim Panel Replacement
1	Rear Compartment Lid Hinge Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 25 N.m (18 lb ft)
2	Rear Compartment Lid Hinge Procedure Rear Compartment Lid Adjustment

Callout

Component Name

Preliminary Procedure

Rear Compartment Lid Hinge Bolt [2x]

CAUTION:

Tighten
25 N.m (18 lb ft)

Rear Compartment Lid Hinge
Procedure
Rear Compartment Lid Adjustment
