Hood Primary and Secondary Latch Replacement

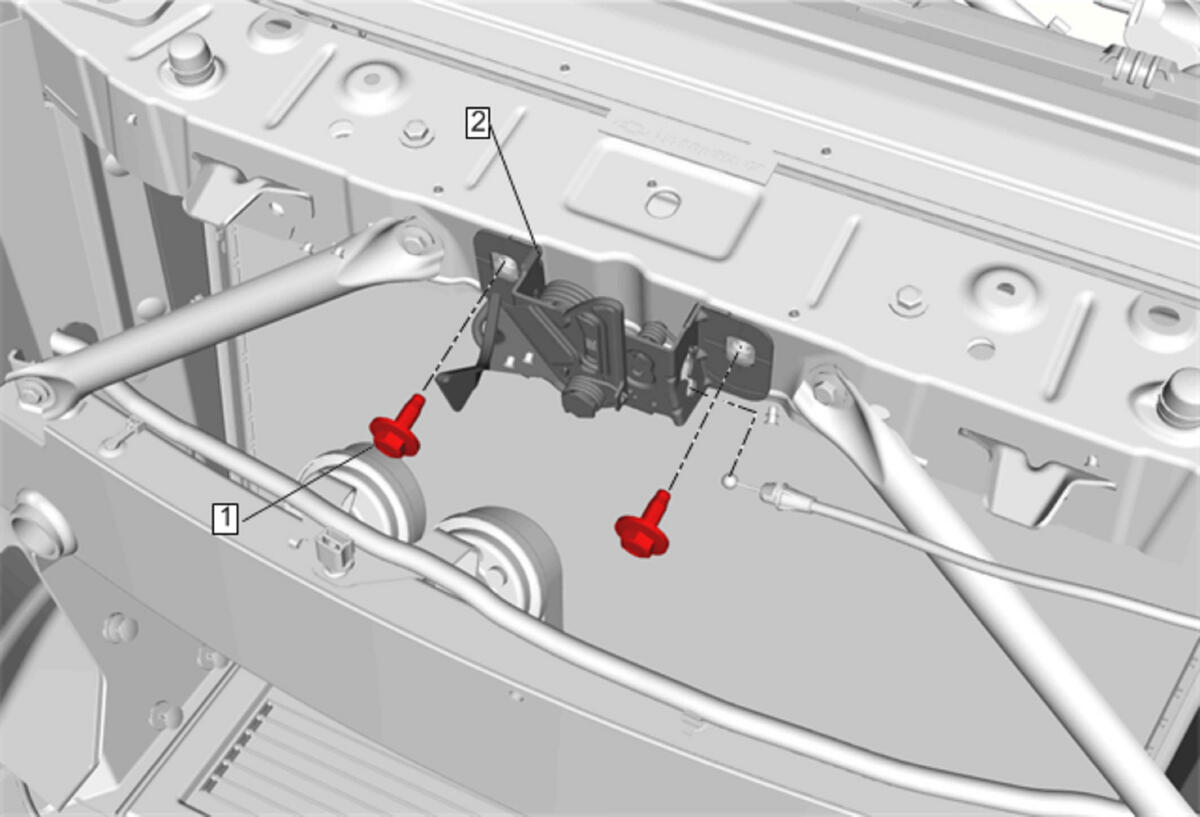

GM4183912Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Callout Component Name

Preliminary Procedure

  1. Front Bumper Fascia Replacement (Base, Uplevel) , or Front Bumper Fascia Replacement (ZL1) , or Front Bumper Fascia Replacement (SS)
  2. Use a grease pencil to mark the location of the hood latch before removing the bolts.
1 Hood Primary and Secondary Latch Bolt [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Hood Primary and Secondary Latch

Procedure

  1. Disconnect the release cable from the hood primary latch.
  2. Align the hood primary and secondary latch if necessary.
  3. Disconnect the electrical connector.
