Hood Insulator Replacement
 Courtesy of GENERAL MOTORS COMPANY
|
NOTE:

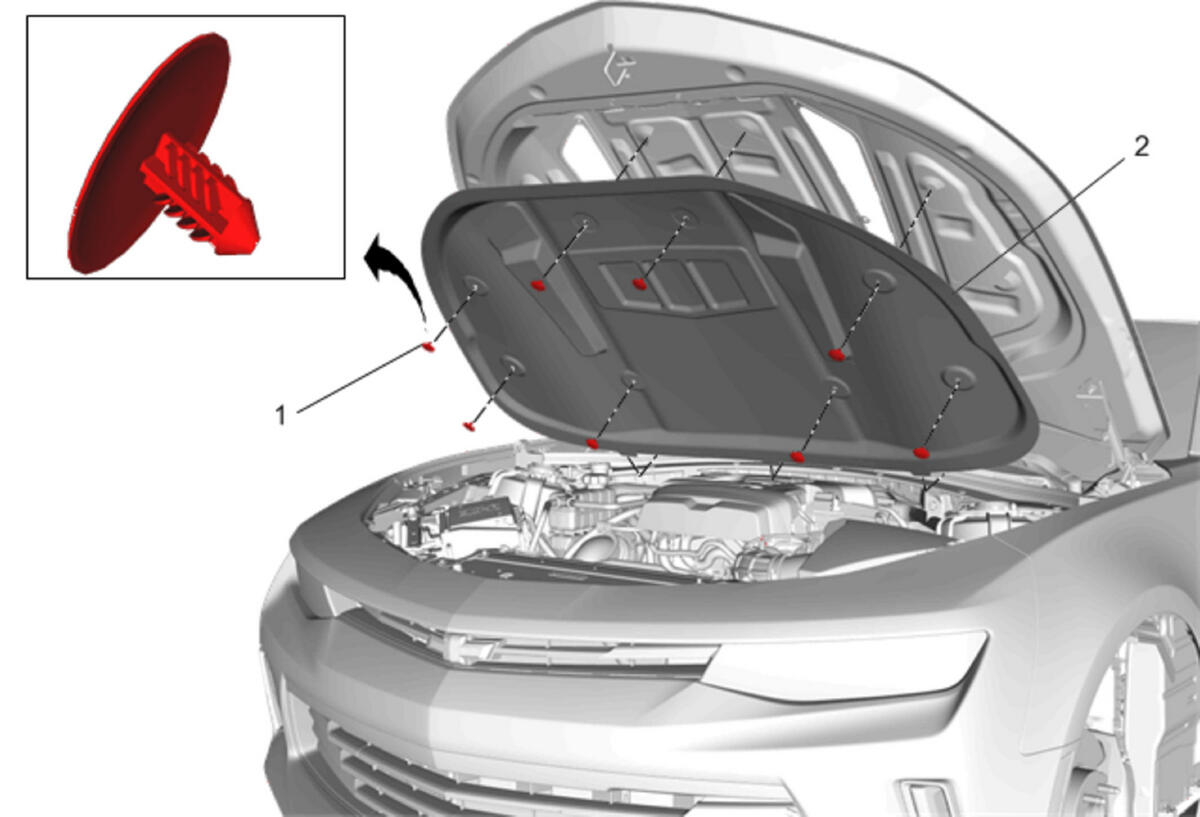

Callouts in the following chart represent components shown in graphic above.
| Callout |
Component Name |
| 1 |
Hood Insulator Retainer [8x] |
| 2 |
Hood Insulator
Procedure
Ensure the three lower integral tabs are secure to the hood. |
