Front Side Door Weatherstrip Replacement - Body Side (Coupe)

Courtesy of GENERAL MOTORS COMPANY

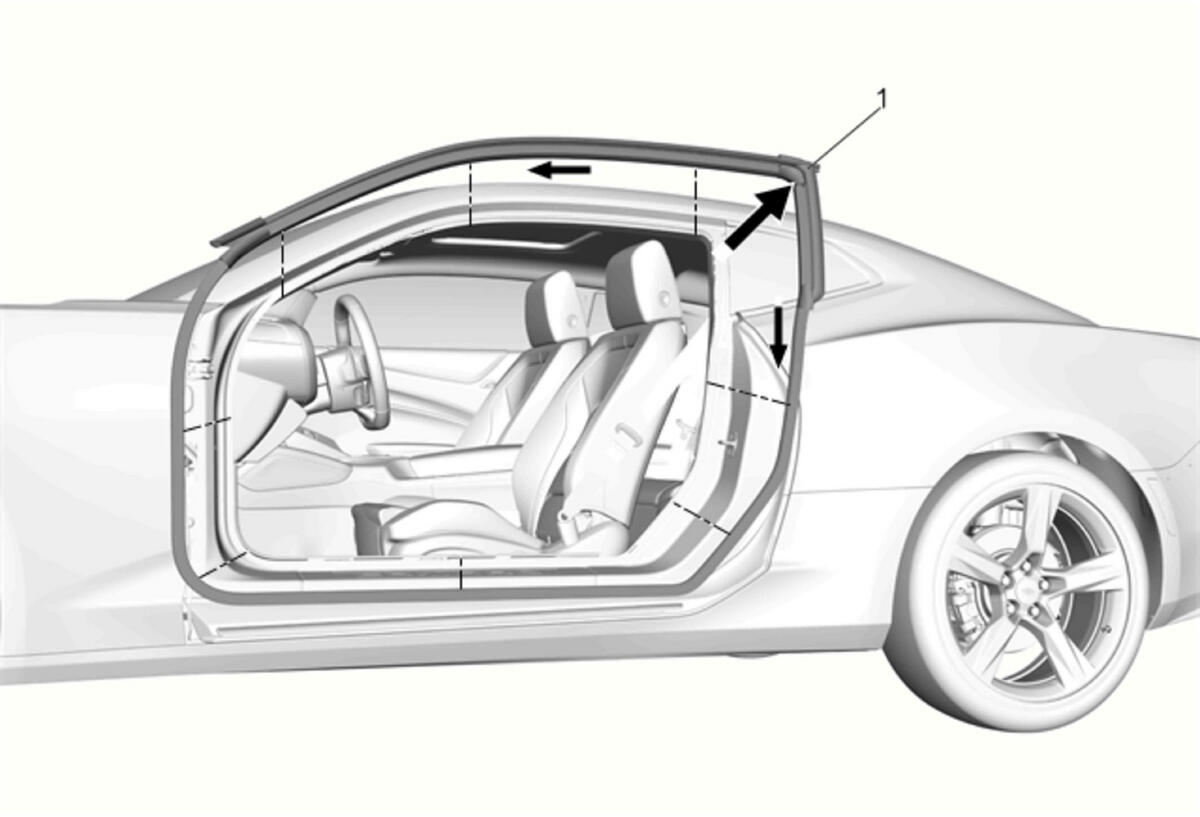

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure  Front Side Door Sill Garnish Molding Replacement
1	Front Side Door Weatherstrip Procedure  When installing the weatherstrip start in the upper corner working counter clockwise around the door ring.
