Front Side Door Lower Auxiliary Weatherstrip Replacement

Courtesy of GENERAL MOTORS COMPANY

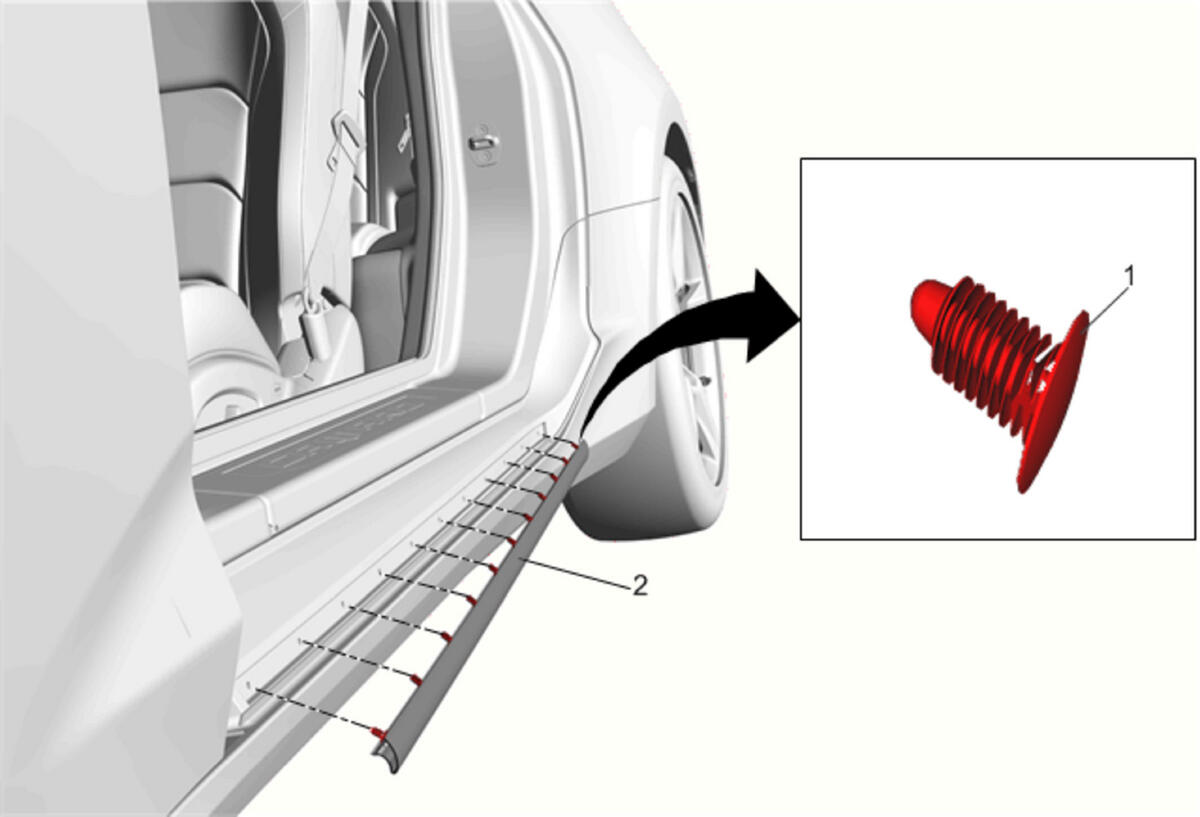

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
1	Front Side Door Lower Auxiliary Weatherstrip Retainer [11x] Procedure Open the front side door of weatherstrip being serviced. Using the appropriate tool, remove the weatherstrip. Using a suitable solution, clean the top surface of the rocker molding with a clean damp shop cloth.
2	Front Side Door Lower Auxiliary Weatherstrip Procedure Install the auxiliary weatherstrip to the front top edge the rocker molding first then work the auxiliary weatherstrip rearward installing the retainers.

Callout

Component Name

Front Side Door Lower Auxiliary Weatherstrip Retainer [11x]

Procedure

Open the front side door of weatherstrip being serviced.
Using the appropriate tool, remove the weatherstrip.
Using a suitable solution, clean the top surface of the rocker molding with a clean damp shop cloth.

Front Side Door Lower Auxiliary Weatherstrip
Procedure
Install the auxiliary weatherstrip to the front top edge the rocker molding first then work the auxiliary weatherstrip rearward installing the retainers.
