Front Fender Front Brace Replacement
NOTE:

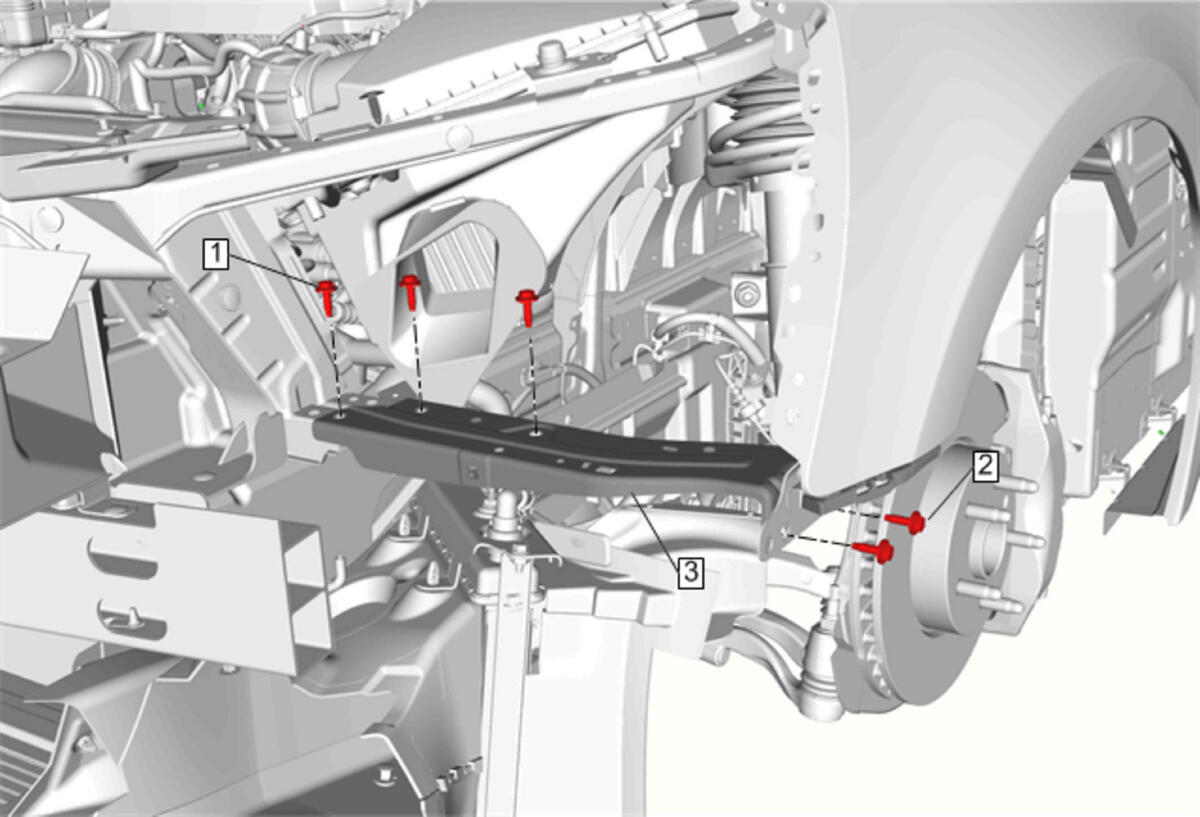

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Intake Air Baffle Replacement |
|
| 1 | Front Fender Front Brace Bolt [3x]
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Front Fender Bolt [2x] Tighten 9 N.m (80 lb in) |
| 3 | Front Fender Front Brace |
