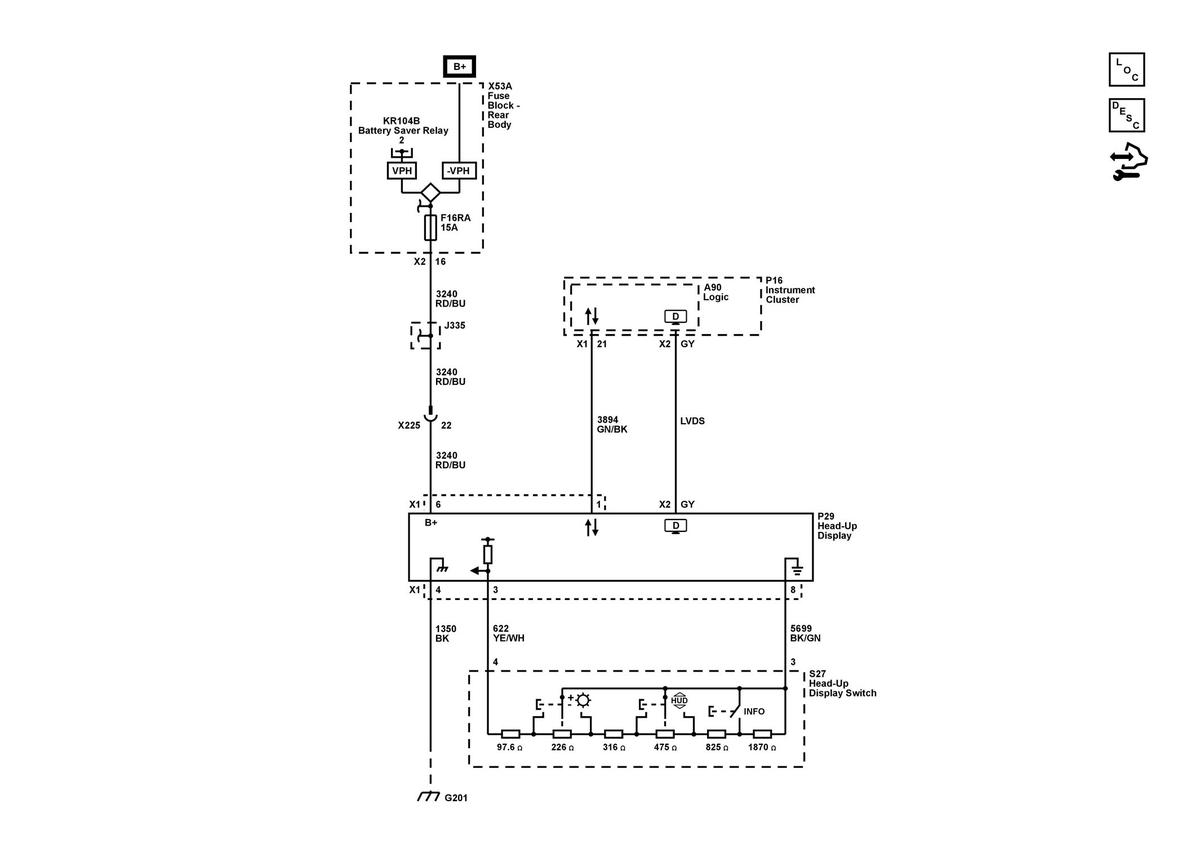

Home >> Chevrolet >> 2023 >> Camaro ZL1, 2D Convertible, Standard Trans >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel, Displays And Gauges >> Schematic Wiring Diagrams >> Head-Up Display Wiring Schematics >> Head-Up Display (UV6)
