Multiuse Module Bracket Replacement - Instrument Panel

Courtesy of GENERAL MOTORS COMPANY

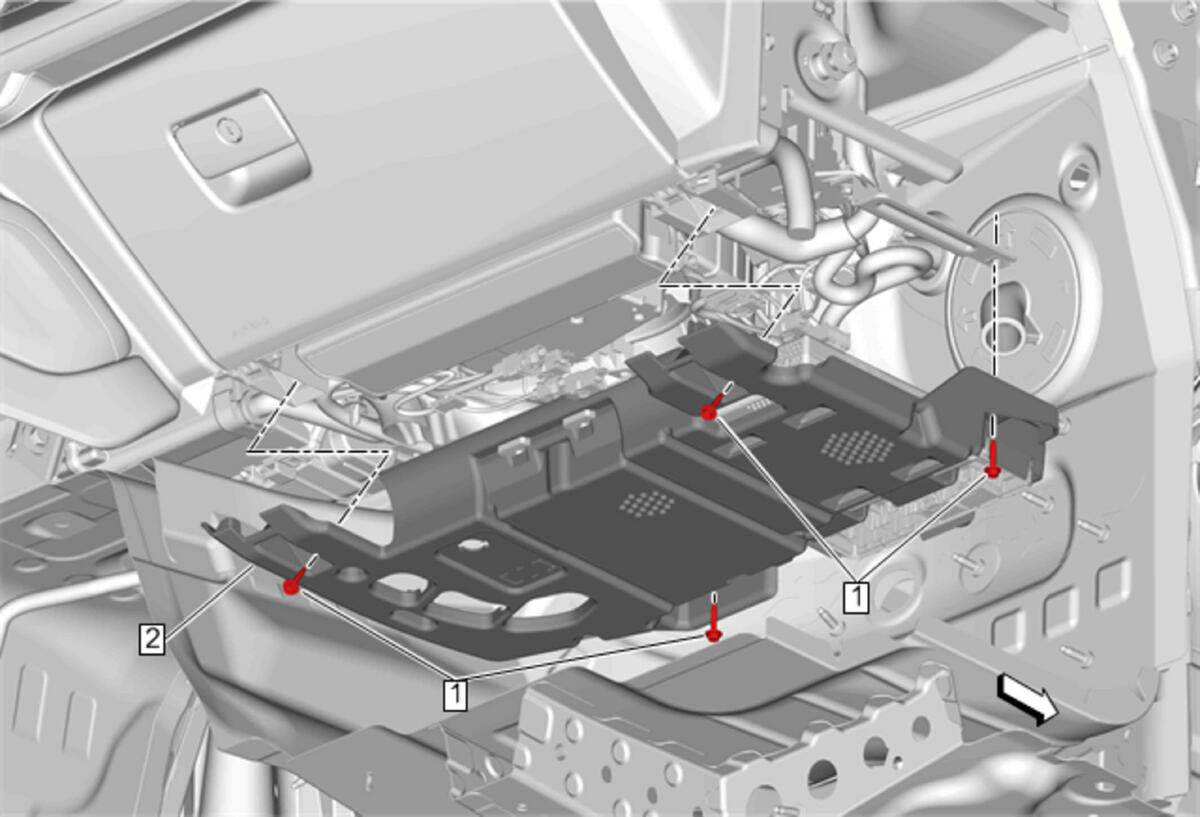

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
1	Multiuse Module Upper Tray Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Multiuse Module Bracket Procedure Disconnect the electrical connectors. Transfer components as necessary.

Callout

Component Name

Multiuse Module Upper Tray Bolt [4x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Multiuse Module Bracket

Procedure
