Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

With the aid of an assistant, position the instrument panel lower trim panel (2) in the vehicle.
Reposition the instrument panel wiring harness into the vehicle position as was noted in the removal and connect the fasteners securing the instrument panel lower trim panel (2).

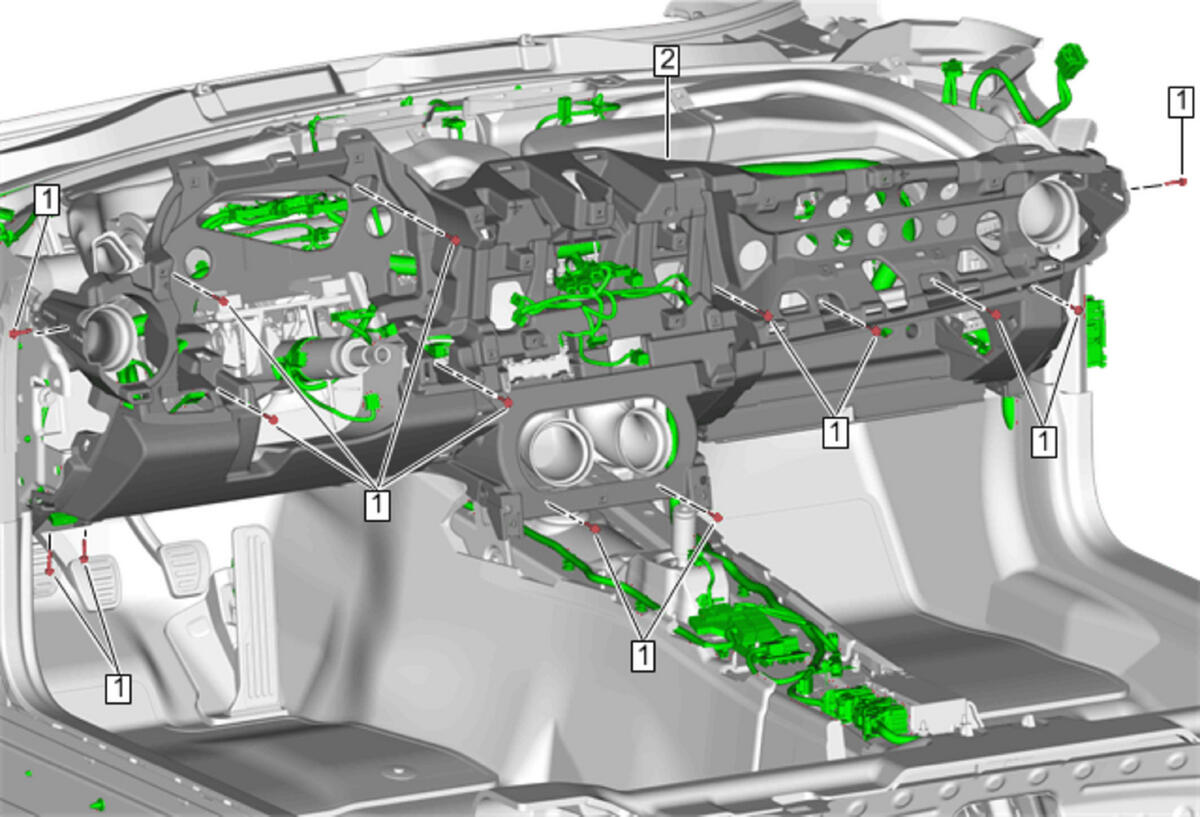

Instrument Panel Bolt (1) - Install and tighten [14x] 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

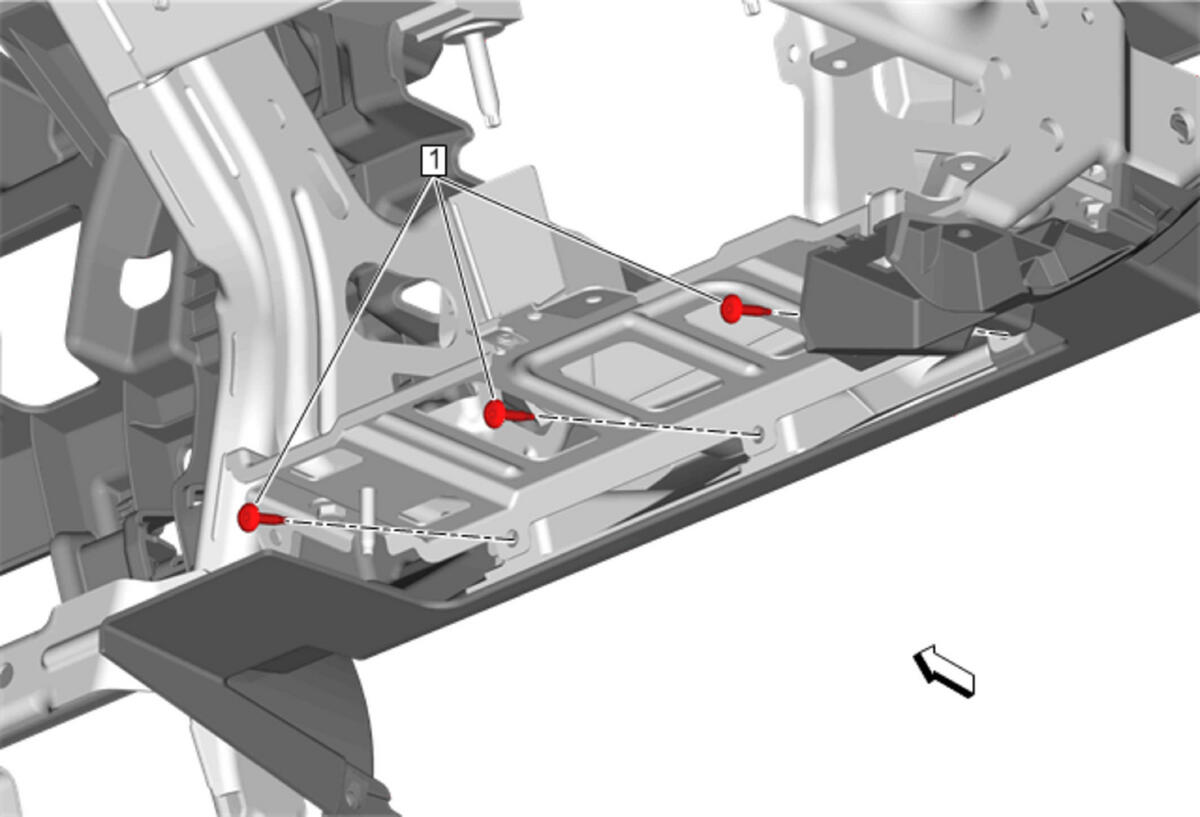

Instrument Panel Lower Trim Panel Bolt (1) - Install and tighten [3x] 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

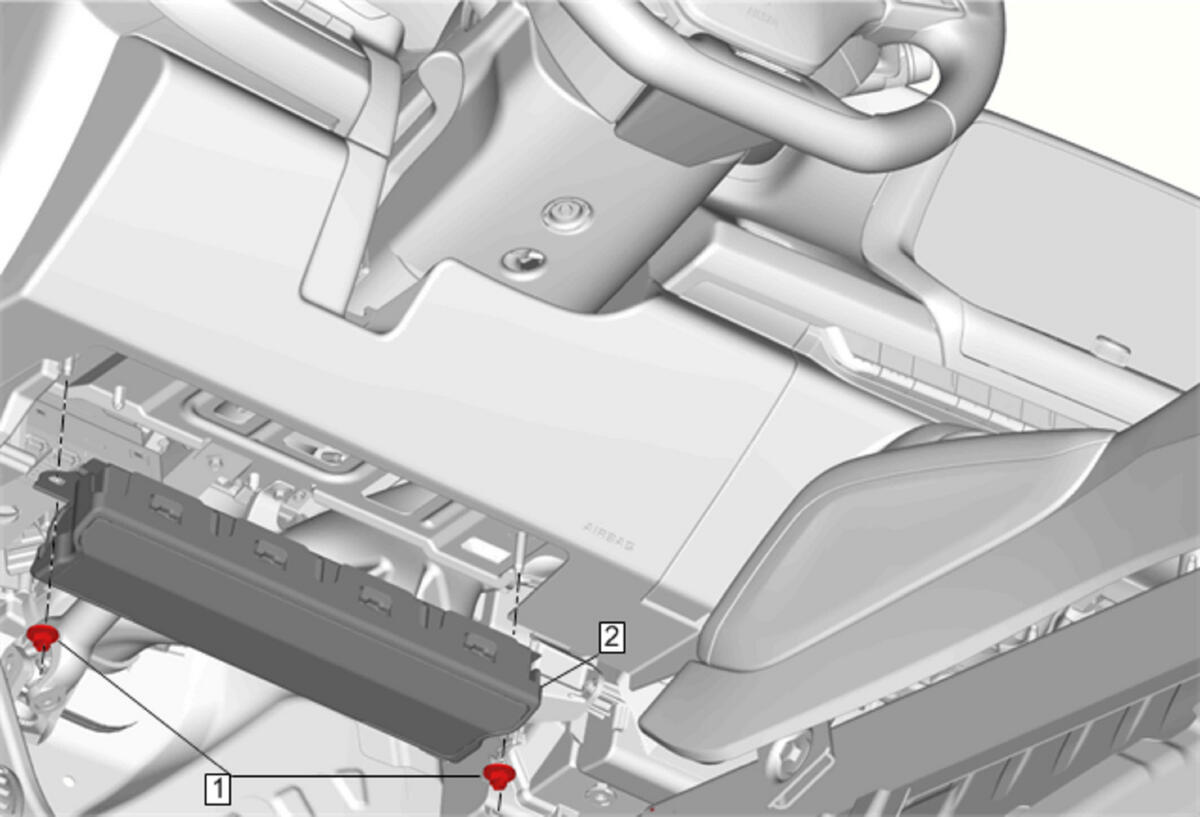

Instrument Panel Lower Airbag Replacement - Driver Side (2) - Install
Courtesy of GENERAL MOTORS COMPANY

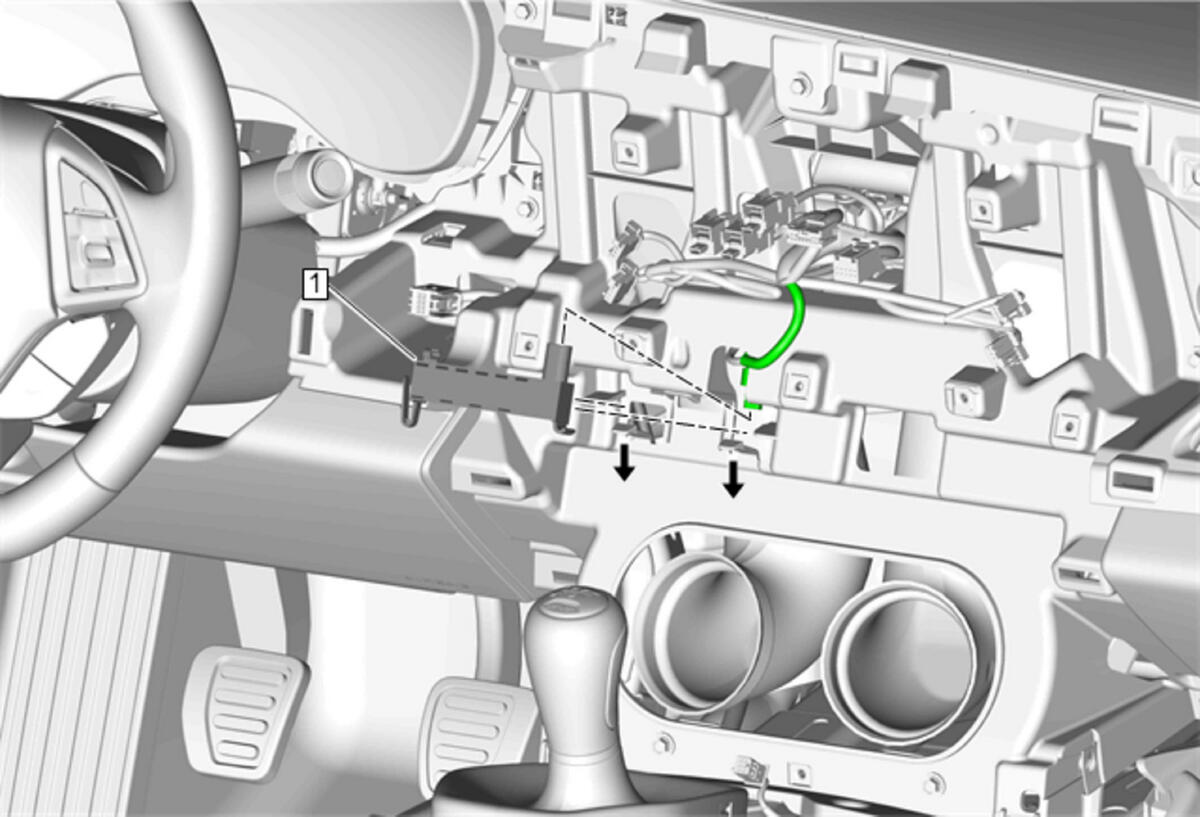

Low Frequency Instrument Panel Antenna Replacement (1) - Install
Courtesy of GENERAL MOTORS COMPANY

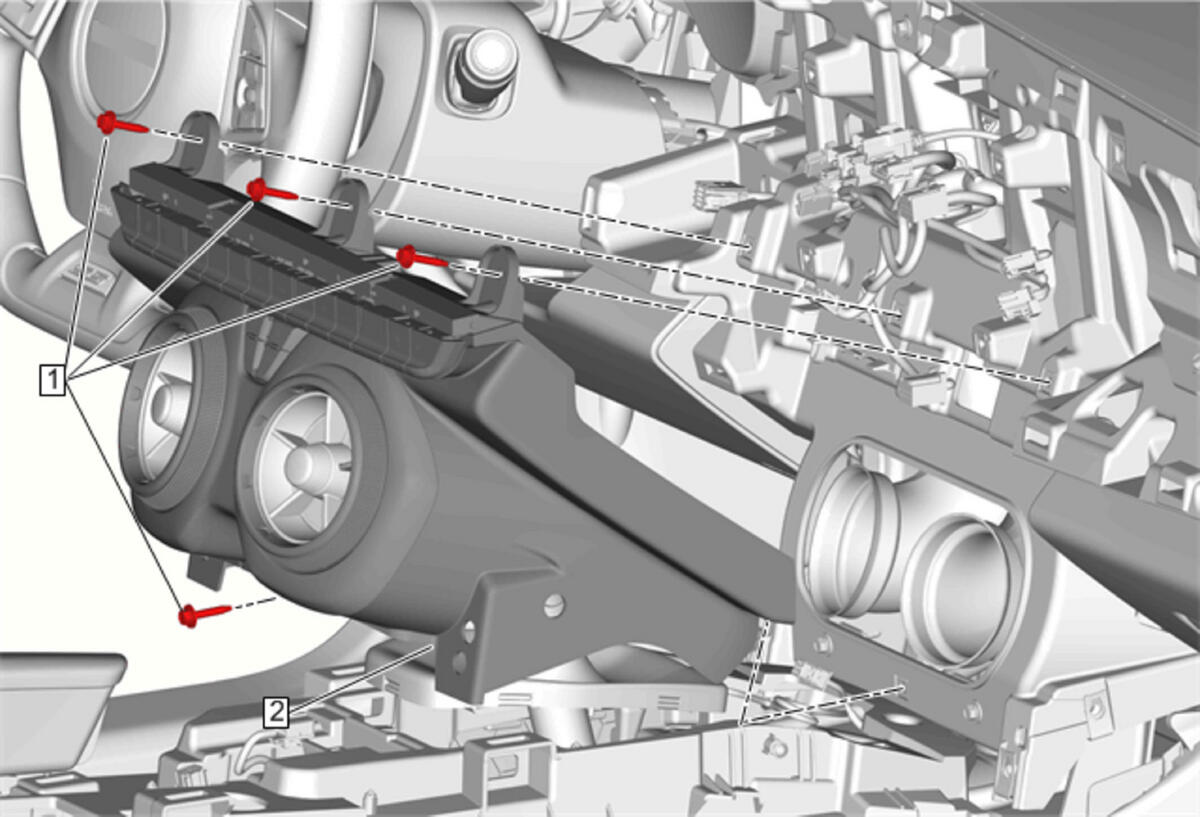

Instrument Cluster Replacement (2) - Install
Courtesy of GENERAL MOTORS COMPANY

Heater and Air Conditioning User Interface Control Replacement (2) - Install
