Instrument Panel Knee Bolster Replacement (Driver Knee Bolster Reinforcement)

Courtesy of GENERAL MOTORS COMPANY

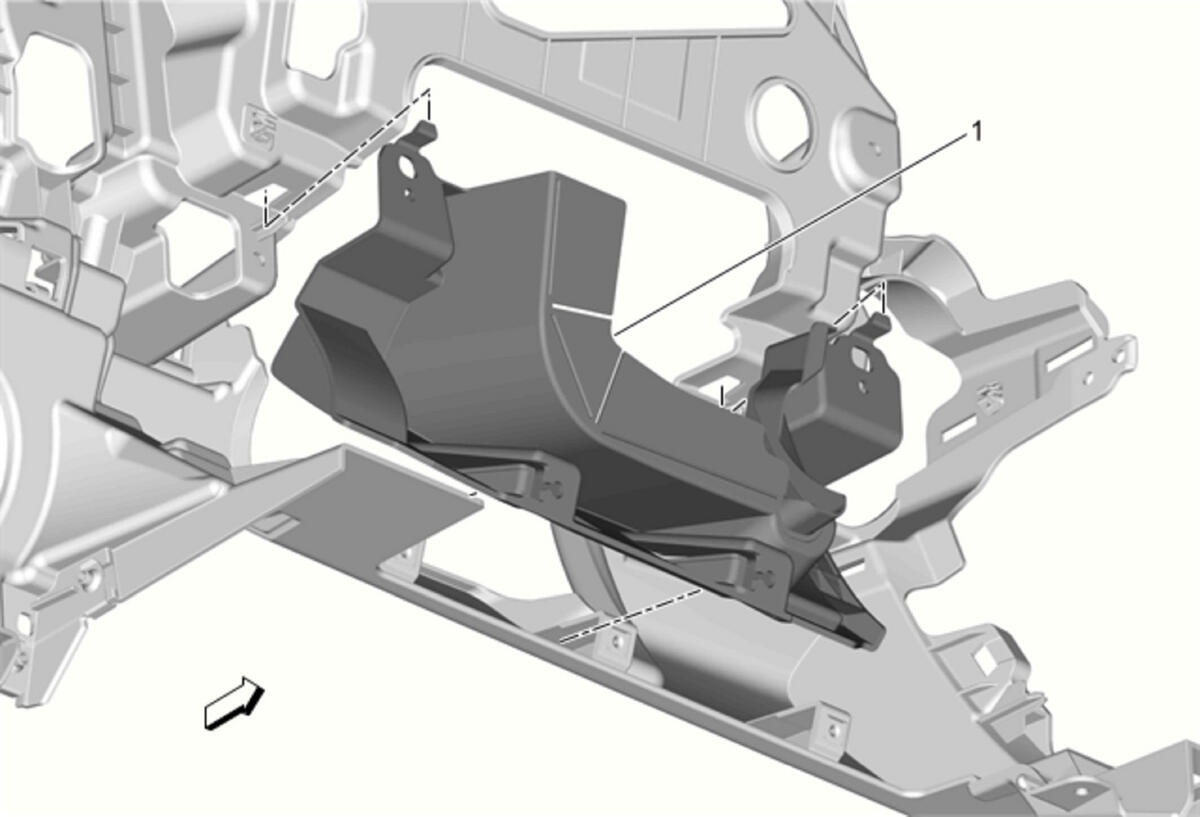

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure  Instrument Panel Lower Trim Panel Replacement (with UV6) , or Instrument Panel Lower Trim Panel Replacement (without UV6)
1	Instrument Panel Knee Bolster Procedure  Release the plastic retaining tabs.
