Removal Procedure
Windshield Garnish Molding-Right Side (1) - Remove - Windshield Garnish Molding Replacement - Right Side (Coupe) , or Windshield Garnish Molding Replacement - Right Side (Convertible)
Instrument Panel Bolt (1) - Remove
- Disconnect the electrical connectors on the A-pillar.

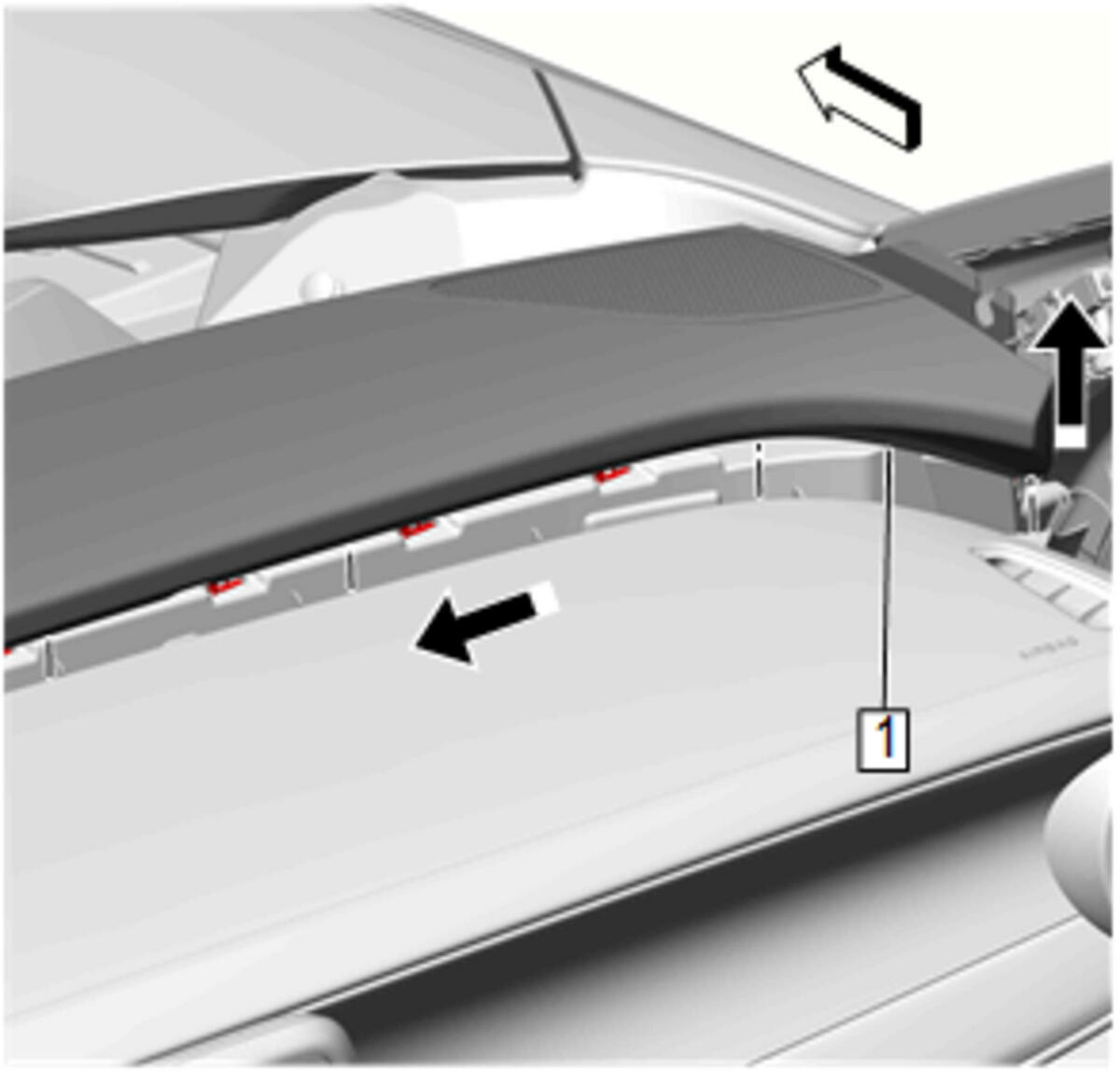

Starting on the right, pull up on the extension (1) and work your way to the left while releasing the retainer clips.
- Using a flat bladed plastic trim tool, release the retainer clips.
- Disconnect the electrical connector.

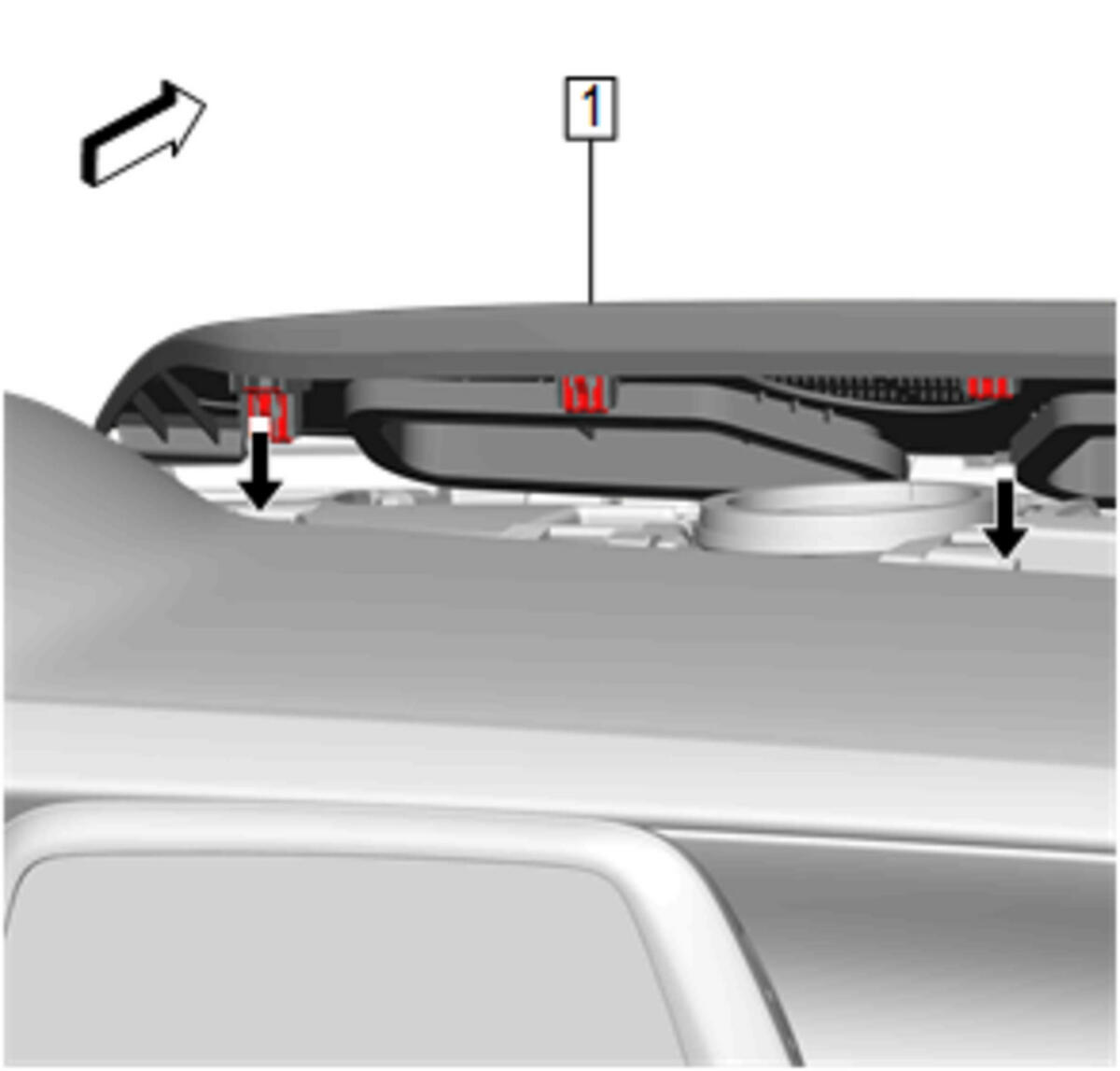

Push down on the upper trim panel cover to aid in the release of the front locating instrument panel extension tabs (1).
Instrument Panel Extension (1) - Remove
- Transfer components as necessary.
