Front Floor Lower Console Replacement

Courtesy of GENERAL MOTORS COMPANY

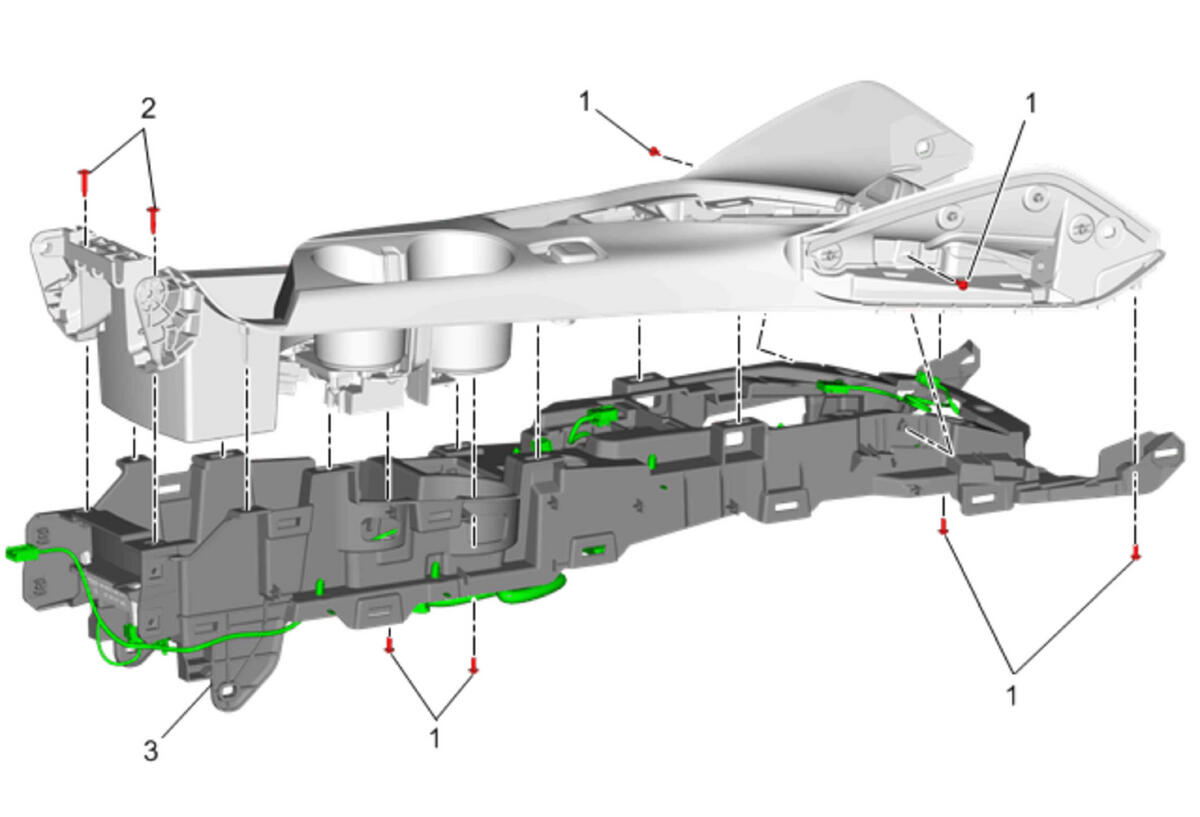

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Front Floor Console Replacement
1	Front Floor Rear Trim Plate Bolt [6x] CAUTION: Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in)
2	Front Floor Console Trim Plate Bolt [2x] Tighten 2.5 N.m (22 lb in)
3	Front Floor Lower Console Procedure Disconnect the electrical connectors. Note the location and routing of the wiring harness to ensure proper reinstallation. Remove the wiring harness. Transfer components as necessary.
